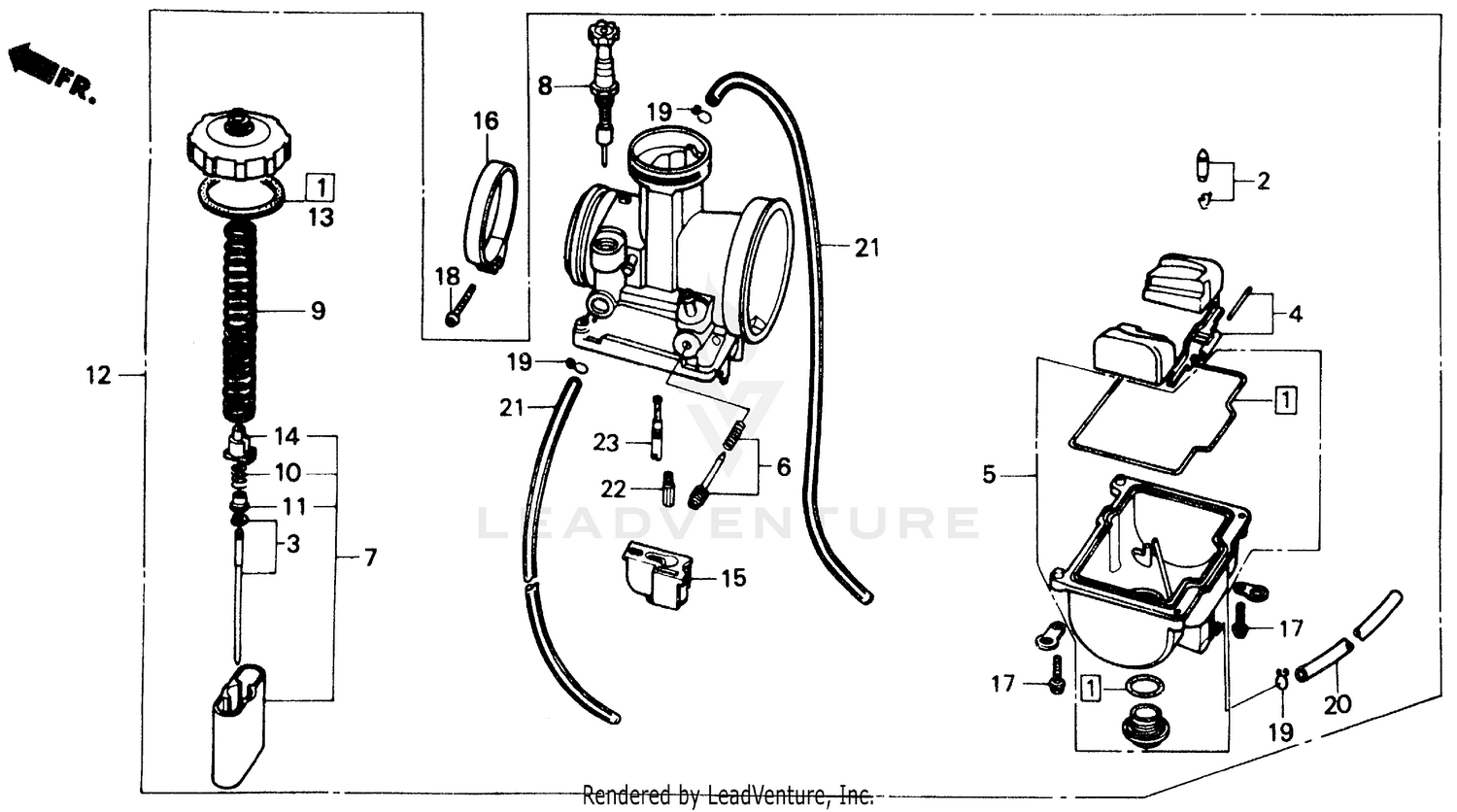

Carburetor 86 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-KA3-004
|
$56.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-HA2-671
|
$35.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE SET, JET (R1468N)
16012-KS6-004
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-HA2-671
|
$58.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAMBER SET, FLOAT
16015-VM0-004
|
$70.18 | ||
|
Unavailable |
|||
|
#6
SCREW SET A
16016-HA2-671
|
$20.72 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE SET, THROTTLE
16022-HA2-671
|
$92.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE SET, STARTER
16046-HA2-671
|
$48.62 | ||
|
Unavailable |
|||
|
#9
SPRING, COMPRESSION COIL
16050-HA2-671
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION COIL
16051-KA3-761
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, SPRING SETTING
16066-KA3-761
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CARBURETOR ASSY.
16100-HA2-671
Superseded by 16100-HA2-307
|
$326.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, TOP
16110-NC8-004
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, CABLE
16137-KA3-761
|
$13.10 | ||
|
Unavailable |
|||
|
#15
PLATE, BUFFER
16185-KA3-761
|
$12.46 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, INSULATOR
16223-KA3-740
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (4X16)
93500-04016-0H
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (4X16)
93500-04016-08
Superseded by 93500-04016-0H
|
$0.81 | ||
|
Unavailable |
|||
|
#17
SCREW-WASHER (4X16)
93892-04016-08
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (5X20)
93500-05020-0A
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, TUBE (B7)
95002-02070
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#20
BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X300)
95003-05008-60M
|
$22.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
BULK HOSE, VINYL (4X7X8000) (4X7X270)
95003-07008-60M
|
$28.37 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#145)
99101-357-1450
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, SLOW (#42)
99103-440-0420
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
