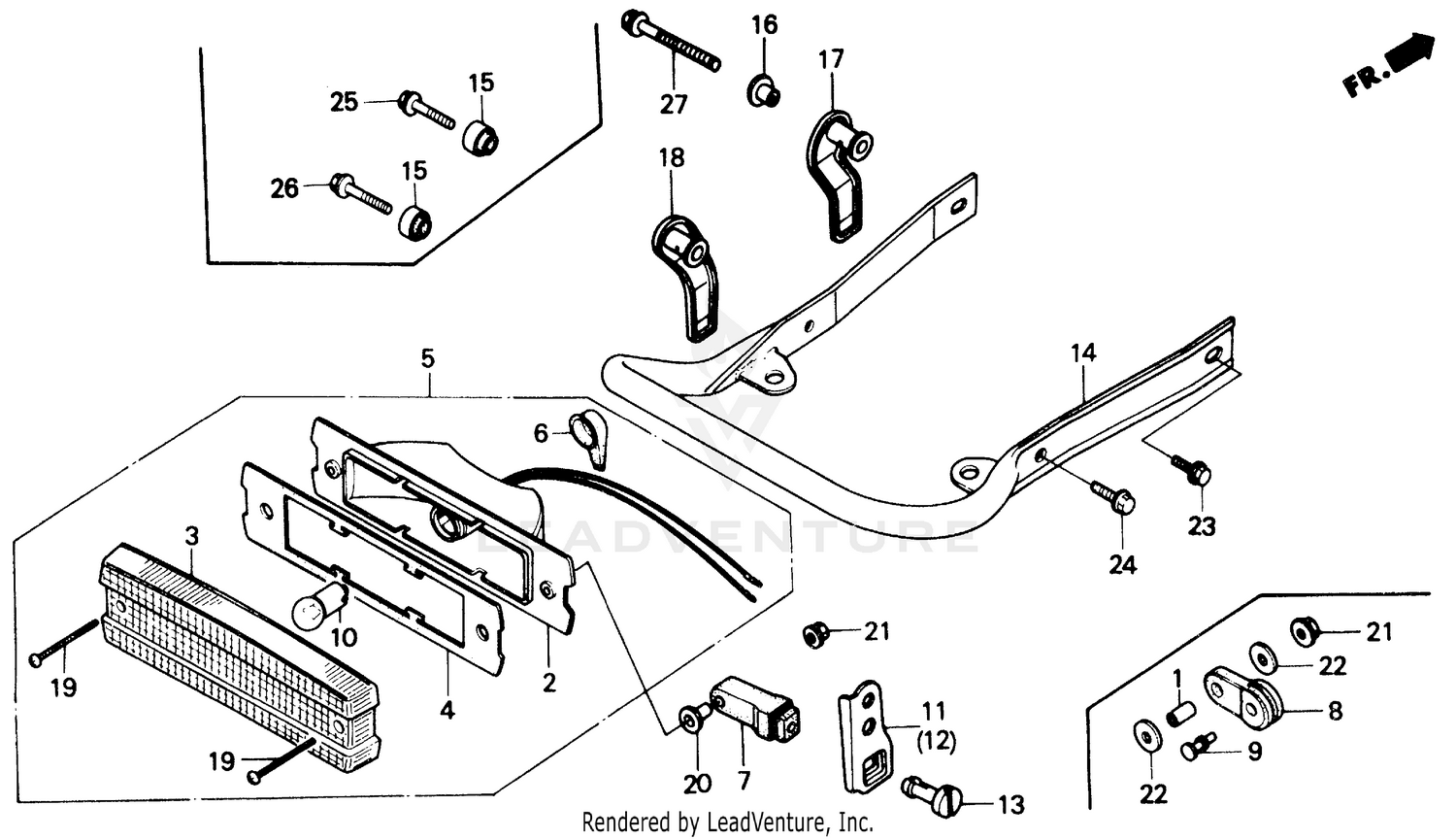

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
HOUSING, TAILLIGHT (NOT AVAILABLE)
33300-965-003
|
$31.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, TAILLIGHT
33302-965-003
|
$18.36 | ||
|
Unavailable |
|||
|
#4
GASKET, TAILLIGHT
33303-965-003
|
$12.12 | ||
|
Unavailable |
|||
|
#5
TAILLIGHT ASSY.
33700-VM4-770
|
$58.62 | ||
|
Unavailable |
|||
|
#5
TAILLIGHT ASSY.
33700-965-003
Superseded by 33700-VM4-770
|
$58.62 | ||
|
Unavailable |
|||
|
#6
COVER, SOCKET
33702-965-003
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, TAILLIGHT SETTING
33715-HA2-670
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB (12V5W) (STANLEY) (NOT AVAILABLE)
34905-965-003
Superseded by 34910-504-003
|
$1.33 | ||
|
Unavailable |
|||
|
#11
BRACKET, R. TAILLIGHT (NOT AVAILABLE)
50231-HA2-670
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, L. TAILLIGHT (NOT AVAILABLE)
50232-HA2-670
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, HEADLIGHT BAND
61308-HA2-000
|
$3.17 | ||
|
Unavailable |
|||
|
#14
PIPE, CARRIER
81200-HA2-670
Superseded by 81200-HA2-770
|
$66.51 | ||
|
Unavailable |
|||
|
#16
COLLAR, TOOL BOX SETTING
83511-HA2-670
Superseded by 83511-VM6-680
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, TOOL BOX SETTING
83511-VM6-680
|
$9.59 | ||
|
Unavailable |
|||
|
#17
STAY A, TOOL BOX (NOT AVAILABLE)
83513-HA2-670
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY B, TOOL BOX (NOT AVAILABLE)
83514-HA2-670
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (4X50)
90121-965-003
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR, TAILLIGHT SETTING
90562-HA2-670
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE (4MM)
94050-04080
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X16)
96300-08016-00
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X16)
96300-08016-00
|
$1.53 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (8X55)
96300-08055-00
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
