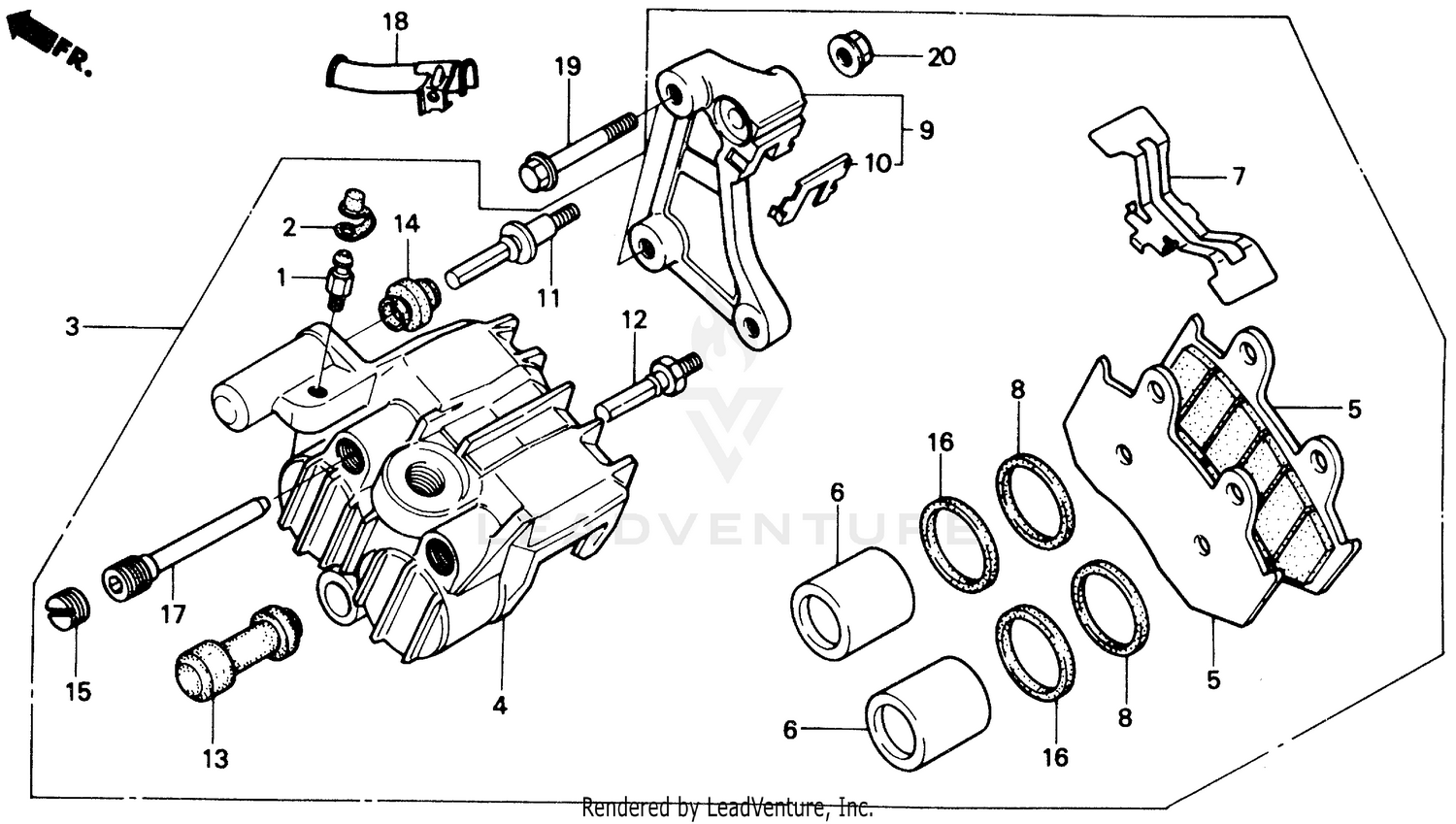

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
BRAKE PAD KIT
451A0-KA3-731
|
$43.66 | ||
|
Unavailable |
|||
|
#1
SCREW, BLEEDER
43352-568-003
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, BLEEDER
43353-461-771
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY., L. FR. (NISSHIN)
45100-HA2-672
Superseded by 45100-HA2-673
|
$303.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY., L. FR. (NISSHIN)
45100-HA2-673
|
$303.35 | ||
|
Unavailable |
|||
|
#4
BODY, CALIPER (NISSHIN)
45101-HA2-672
|
$166.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
PAD (SEE KIT P/N--END OF BLOCK)
45105-KA3-731
|
$24.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON
45107-MG3-006
Superseded by 45107-MG3-016
|
$47.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON
45107-MG3-016
|
$47.85 | ||
|
Unavailable |
|||
|
#7
SPRING, PAD
45108-GE2-006
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
DUST SEAL
45109-GE2-006
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, L. FR. (NISSIN)
45110-HA2-672
|
$75.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER
45112-MG3-006
|
$8.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT A, PIN
45131-MG3-006
|
$14.89 | ||
|
Unavailable |
|||
|
#12
PIN, BOLT
45131-166-016
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSH, PIN
45132-166-016
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT B
45133-MA3-006
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, PIN
45203-MG3-006
Superseded by 45203-MG3-016
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, PIN
45203-MG3-016
|
$6.15 | ||
|
Unavailable |
|||
|
#16
SEAL, PISTON
45209-GE2-006
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, HANGER
45215-GE2-006
Superseded by 45215-GE2-016
|
$13.34 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, HANGER
45215-GE2-016
|
$13.34 | ||
|
Unavailable |
|||
|
#18
GUIDE, BRAKE HOSE (NOT AVAILABLE)
45463-HA2-670
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X40)
90131-MG3-000
Superseded by 96400-08040-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (8MM)
94050-08080
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
