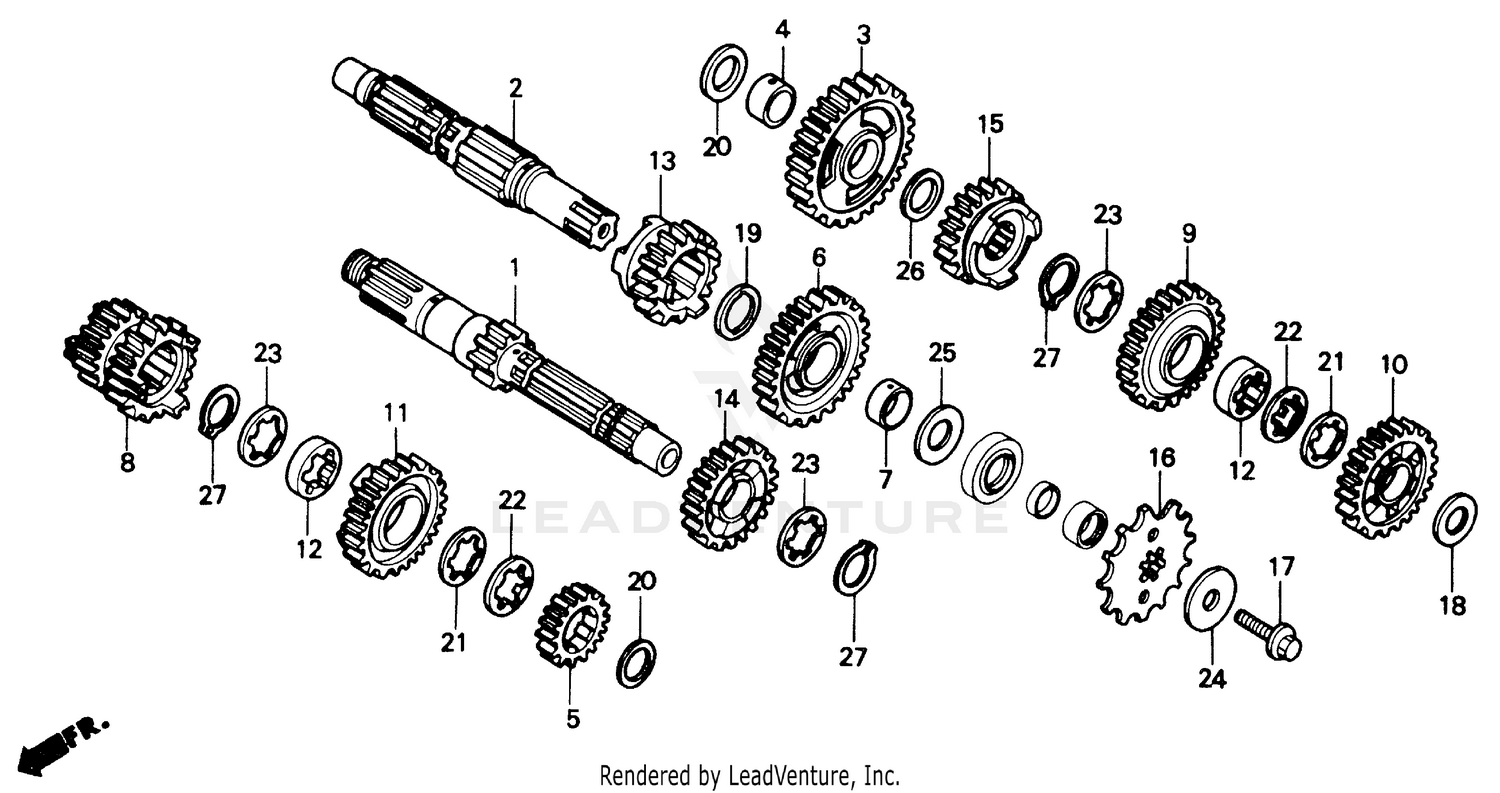

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (14T)
23211-HA2-000
Superseded by 23211-HB9-770
|
$141.28 | ||
|
Available to order. Add to View Price |
|||
|
#1
MAINSHAFT (14T)
23211-HB9-770
|
$141.28 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT
23221-HA2-000
Superseded by 23221-HB9-770
|
$125.30 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT
23221-HB9-770
|
$125.30 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (36T)
23411-HA2-000
|
$110.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, COUNTERSHAFT LOW GEAR
23412-HA2-000
|
$13.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND (16T)
23421-HA2-000
|
$46.35 | ||
|
Unavailable |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (33T)
23431-HA2-010
|
$115.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, COUNTERSHAFT SECOND GEAR
23432-HA2-000
|
$17.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (18T & 21T)
23441-HA2-000
|
$113.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (30T)
23451-HA2-000
|
$104.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (28T)
23471-HA2-670
|
$72.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, MAINSHAFT FIFTH (24T)
23481-HA2-000
|
$69.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, MAINSHAFT FIFTH GEAR
23482-HA2-000
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, COUNTERSHAFT FIFTH (26T)
23491-HA2-010
|
$103.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, MAINSHAFT TOP (26T) (NOT AVAILABLE)
23501-HA2-000
|
$50.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT TOP (23T)
23511-HA2-000
|
$100.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPROCKET, DRIVE (13T)
23803-HA2-000
|
$28.46 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X20)
90012-HA2-000
Superseded by 90103-426-000
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X20)
90103-HA2-000
Superseded by 90103-426-000
|
$3.97 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (8X20)
90103-426-000
|
$3.97 | ||
|
Unavailable |
|||
|
#18
WASHER, THRUST (25.2X30)
90431-HA2-000
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST (24.2X34)
90446-KA5-680
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (17MM)
90454-KF0-000
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER B, THRUST (25MM)
90461-286-000
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, LOCK (25MM)
90462-323-000
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPLINE (25MM)
90463-430-000
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING (8X40)
90501-KA3-741
Superseded by 90501-HB9-003
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER B, THRUST (22MM)
90455-ML7-000
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER B, THRUST (22MM) (BLUE)
90502-360-000
Superseded by 90455-ML7-000
|
$5.83 | ||
|
Unavailable |
|||
|
#26
WASHER, THRUST (19MM)
90554-KA5-680
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP (OUTER) (25MM)
90602-259-010
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
