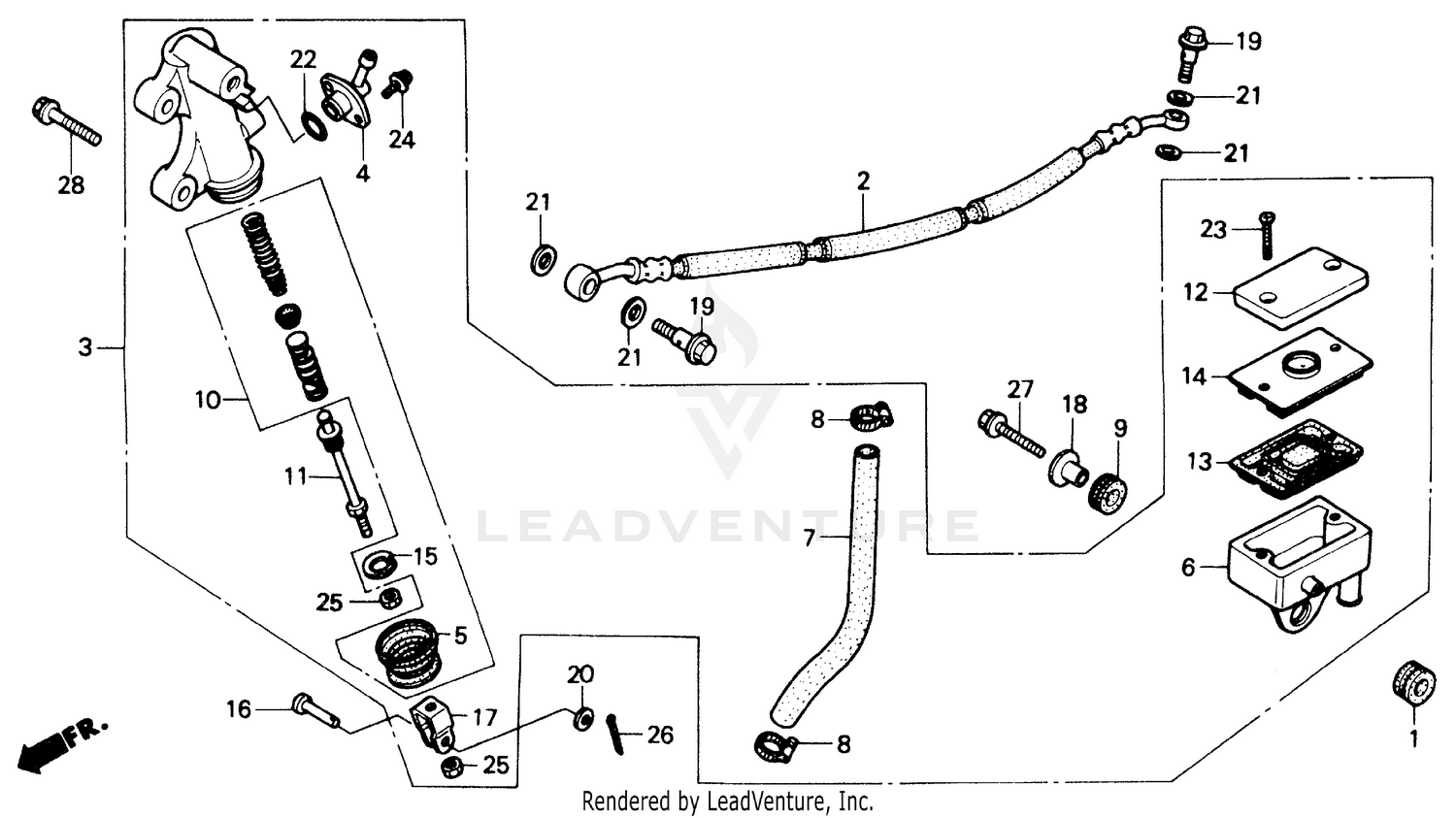

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, TAILLIGHT SETTING
33715-965-000
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE ASSY., RR. BRAKE (NOT AVAILABLE)
43310-HA2-671
|
$49.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER CYLINDER ASSY., RR. BRAKE (NA USE ALT:43510-HA2-P00)
43500-HA2-016
|
$225.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
CONNECTOR, MASTER CYLINDER (NOT AVAILABLE)
43503-964-006
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT, MASTER CYLINDER
43504-371-013
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUP, OIL
43511-HA2-016
|
$43.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, MASTER CYLINDER OIL (NOT AVAILABLE)
43512-HA2-006
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, MASTER CYLINDER OIL HOSE
43514-964-006
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, OIL CUP MOUNTING
43516-HA2-000
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON SET, MASTER CYLINDER
43520-965-305
|
$75.94 | ||
|
Unavailable |
|||
|
#11
ROD, PUSH (NOT AVAILABLE)
43530-HA2-006
|
$12.83 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, MASTER CYLINDER
45513-HA2-006
|
$31.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM
45520-MG7-006
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, DIAPHRAGM
45521-HA2-006
|
$12.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP, MASTER CYLINDER
46182-500-013
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, BRAKE ROD
46503-371-000
|
$3.79 | ||
|
Unavailable |
|||
|
#17
JOINT, BRAKE ROD
46504-MB2-006
|
$8.17 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR (6.3X13)
50324-425-010
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22) (SAGA)
90145-KM3-750
Superseded by 90145-KM3-751
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22)
90145-KM3-751
|
$12.77 | ||
|
Unavailable |
|||
|
#19
BOLT, OIL (10X22) (SAGA)
90145-961-010
Superseded by 90145-KM3-751
|
$12.77 | ||
|
Unavailable |
|||
|
#20
WASHER (7X12)
90501-310-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (14.8X2.4)
91212-422-006
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, FLAT (4X30)
93600-04030-1A
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-08
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-18
Superseded by 93893-04012-08
|
$1.35 | ||
|
Unavailable |
|||
|
#25
NUT, HEX. (8MM)
94002-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER (1.6X25)
94201-16250
|
$1.03 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (6X20)
96000-06020-00
Superseded by 96001-06020-00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.37 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (8X28)
96400-08028-00
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
