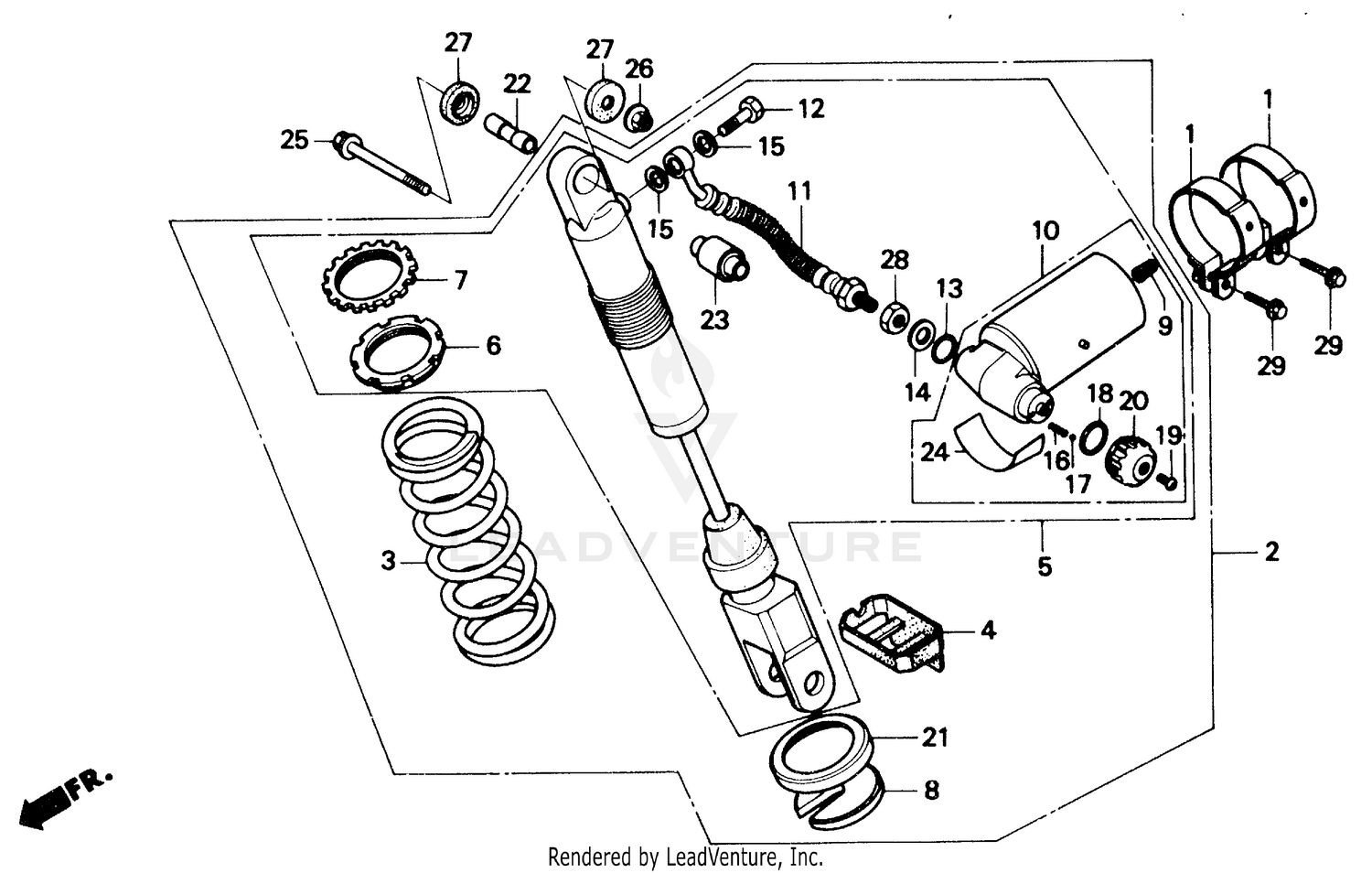

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAND, SUB-TANK (NOT AVAILABLE)
50252-HA2-000
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)
52400-HA2-671
|
$1,006.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, RR. SHOCK ABSORBER
52401-HA2-671
|
$137.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT, RR. SHOCK ABSORBER (NOT AVAILABLE)
52402-964-671
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, RR. (NOT AVAILABLE)
52410-HA2-671
|
$594.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
ADJUSTER, SPRING
52422-MA0-003
|
$42.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, ADJUSTER
52423-KA3-711
|
$25.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
STOPPER, SPRING SEAT
52424-MA0-003
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, AIR VALVE
52425-381-771
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUB-TANK (NOT AVAILABLE)
52430-HA2-671
|
$110.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE, JOINT (NOT AVAILABLE)
52440-HA2-003
|
$65.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, OIL (10X22)
52441-KA3-711
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (9.8X1.9)
52441-MA0-003
|
$2.04 | ||
|
Unavailable |
|||
|
#14
WASHER (10MM)
52442-HA2-003
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL (10MM)
52442-KA3-711
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, CLICK (NOT AVAILABLE)
52445-KA4-731
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
BALL
52446-KF0-003
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (2X23.5)
52447-KF0-003
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
52448-KF0-003
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, ADJUSTING (NOT AVAILABLE)
52449-HA2-671
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAT, SPRING
52459-964-003
|
$22.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR, CUSHION PIVOT (NOT AVAILABLE)
52487-HA2-000
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH, SHOCK ABSORBER (NOT AVAILABLE)
52489-HA2-003
|
$17.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)
87516-MA0-003
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (10X80)
90122-HA2-003
Superseded by 90101-MN9-000
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, U (10MM)
90304-GE8-003
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL, SHOCK ABSORBER PIVOT
91265-HA2-013
|
$8.69 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (12MM)
94002-12000-0S
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X25)
96300-06025-00
|
$1.61 | ||
|
Available to order. Add to View Price |
|||
