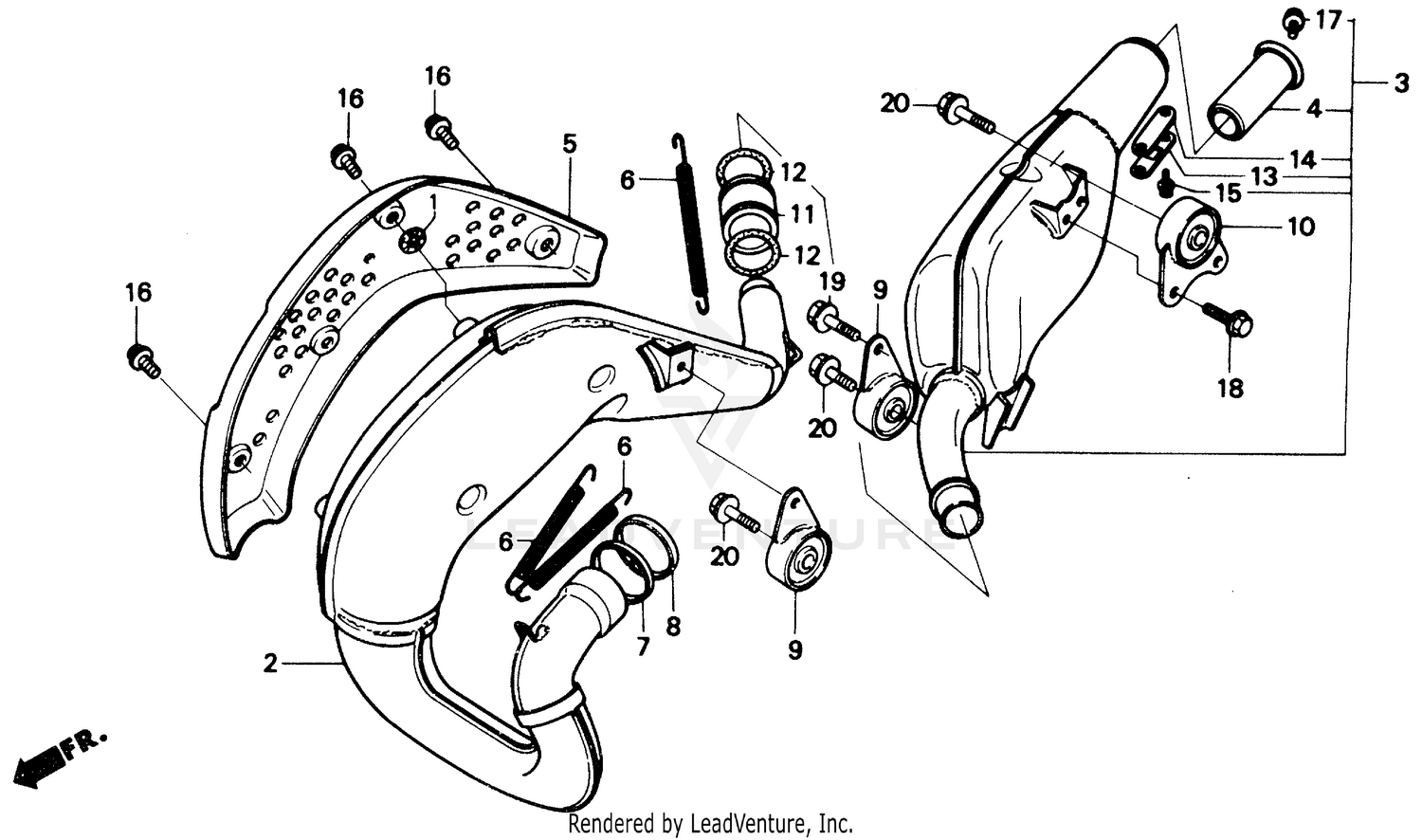

Exhaust Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, PROTECTOR
18293-MCA-780
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET, PROTECTOR
18293-MN5-650
Superseded by 18293-MCA-780
|
$5.81 | ||
|
Unavailable |
|||
|
#1
GASKET, PROTECTOR
18293-422-000
Superseded by 18293-MCA-780
|
$5.81 | ||
|
Unavailable |
|||
|
#2
MUFFLER, MAIN (NOT AVAILABLE)
18300-HA2-671
|
$336.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUFFLER, SUB
18310-HA2-671
Superseded by 18310-HA2-672
|
$356.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, TAIL (NOT AVAILABLE)
18311-VM0-771
|
$35.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR, MUFFLER
18319-HA2-003
Superseded by 18319-HA2-770
|
$45.77 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, EX. PIPE
18332-430-700
|
$15.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, EX. PIPE
18352-HA2-000
Superseded by 18352-HA2-010
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, EX. PIPE
18352-HA2-010
|
$8.99 | ||
|
Unavailable |
|||
|
#8
RING, EX.
18358-HA2-000
|
$17.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY ASSY., MUFFLER
18359-961-000
|
$49.34 | ||
|
Unavailable |
|||
|
#10
STAY ASSY., EX. MUFFLER
18359-964-000
|
$43.63 | ||
|
Unavailable |
|||
|
#11
SEAL, MUFFLER
18361-HA2-000
|
$21.61 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, MUFFLER SEAL
18362-KA4-700
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
LID, MUFFLER
18373-429-010
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, MUFFLER LID
18374-MN1-880
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, MUFFLER LID
18374-429-000
Superseded by 18374-MN1-880
|
$5.06 | ||
|
Unavailable |
|||
|
#15
BOLT-WASHER (6X12)
93401-06012-07
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-WASHER (6X12)
93411-06012-07
Superseded by 93401-06012-07
|
$1.64 | ||
|
Unavailable |
|||
|
#15
BOLT-WASHER (6X12)
93481-06012-07
Superseded by 93401-06012-07
|
$1.64 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN (6X8)
93500-06008-4B
Superseded by 93500-06008-4J
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (6X8)
93500-06008-4J
|
$2.51 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN (6X8)
93500-06008-49
Superseded by 93500-06008-4J
|
$2.51 | ||
|
Unavailable |
|||
|
#17
SCREW-WASHER (6X12)
93893-06012-07
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X12)
96300-06012-00
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X14)
96300-08014-00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X28)
96300-08028-00
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
