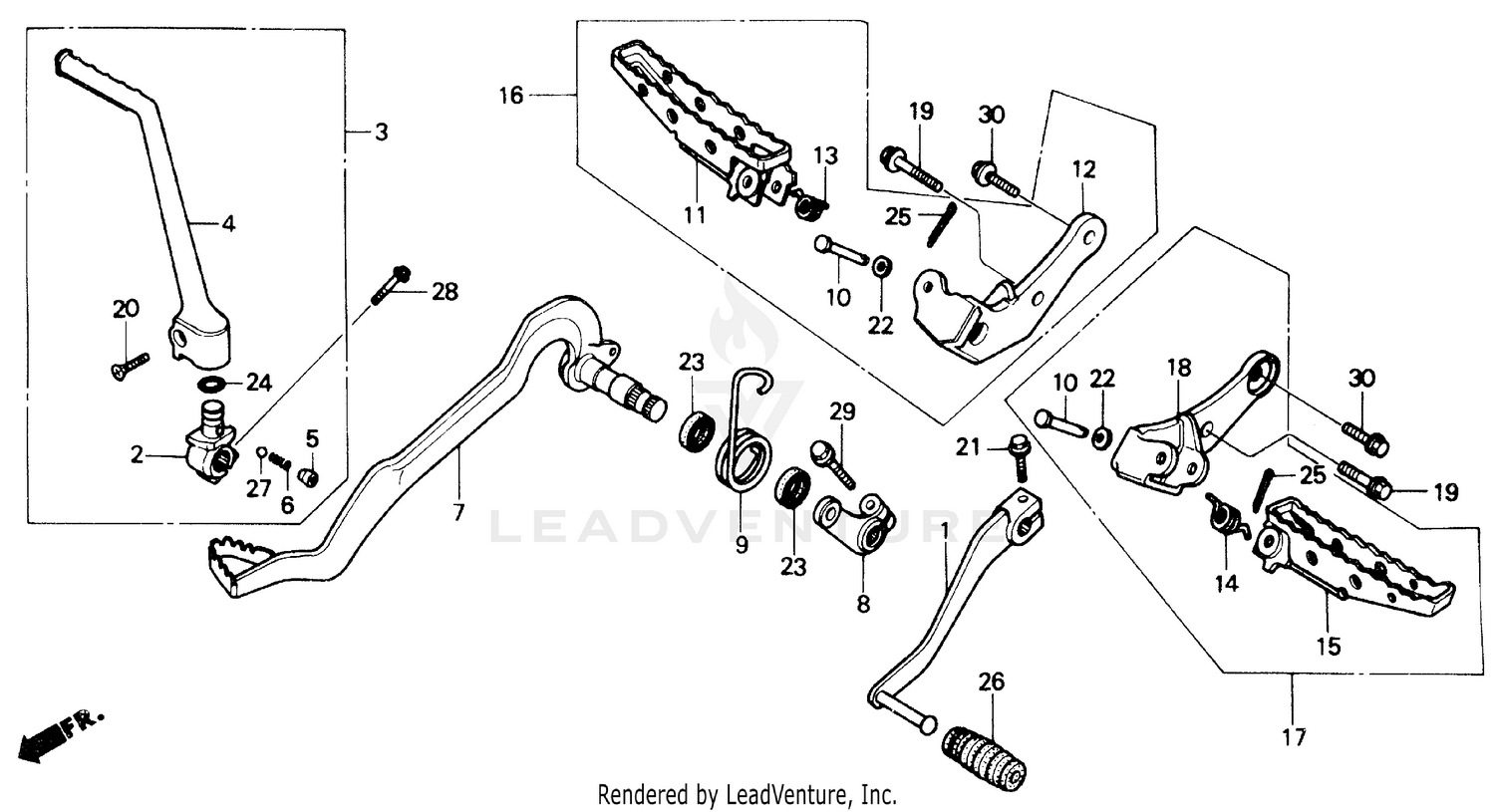

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24701-HA2-000
|
$25.17 | ||
|
Unavailable |
|||
|
#2
JOINT, KICK ARM
28241-HA2-000
Superseded by 28241-HC0-000
|
$57.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, KICK ARM
28241-HC0-000
|
$57.82 | ||
|
Unavailable |
|||
|
#3
ARM ASSY., KICK STARTER (NOT AVAILABLE)
28300-HA2-670
|
$109.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, KICK STARTER (NOT AVAILABLE)
28301-HA2-670
|
$55.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, KICK ARM
28302-965-000
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, KICK STARTER STOPPER
28333-124-000
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
PEDAL, BRAKE (NOT AVAILABLE)
46500-HA2-670
|
$64.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, BRAKE PUSH (NOT AVAILABLE)
46505-HA2-000
|
$24.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, BRAKE PUSH RETURN (NOT AVAILABLE)
46514-HA2-000
|
$5.90 | ||
|
Unavailable |
|||
|
#10
PIN, STEP JOINT
50603-HA5-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
STEP, R. (NOT AVAILABLE)
50610-HA2-670
|
$36.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, R. STEP (NOT AVAILABLE)
50616-HA2-670
|
$28.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, R. STEP RETURN
50617-HA0-680
|
$4.05 | ||
|
Unavailable |
|||
|
#13
SPRING, R. STEP RETURN
50617-964-000
Superseded by 50617-HA0-680
|
$4.05 | ||
|
Unavailable |
|||
|
#14
SPRING, L. STEP RETURN
50618-HA0-680
|
$4.05 | ||
|
Unavailable |
|||
|
#14
SPRING, L. STEP RETURN
50618-964-000
Superseded by 50618-HA0-680
|
$4.05 | ||
|
Unavailable |
|||
|
#15
STEP, L.
50620-HA2-670
|
$36.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
ARM ASSY., R. STEP (NOT AVAILABLE)
50630-HA2-670
|
$58.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM ASSY., L. STEP (NOT AVAILABLE)
50640-HA2-670
|
$61.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, L. STEP (NOT AVAILABLE)
50642-HA2-670
|
$25.34 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (10X45)
90086-444-000
Superseded by 95801-10045-08
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (10X45)
95801-10045-08
|
$2.81 | ||
|
Unavailable |
|||
|
#20
BOLT, KICK ARM
90101-329-000
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X20)
90118-968-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER (10.2MM)
90401-430-000
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (18X23X3)
91251-HA2-003
|
$4.23 | ||
|
Unavailable |
|||
|
#24
O-RING (13.5X1.5) (ARAI)
91353-671-003
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER (2.0X15)
94201-20150
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#26
RUBBER, SHIFT PEDAL
95011-40000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X25)
96300-08025-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (8X32)
96300-08032-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (10X25) (NOT AVAILABLE)
96300-10025-08
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
