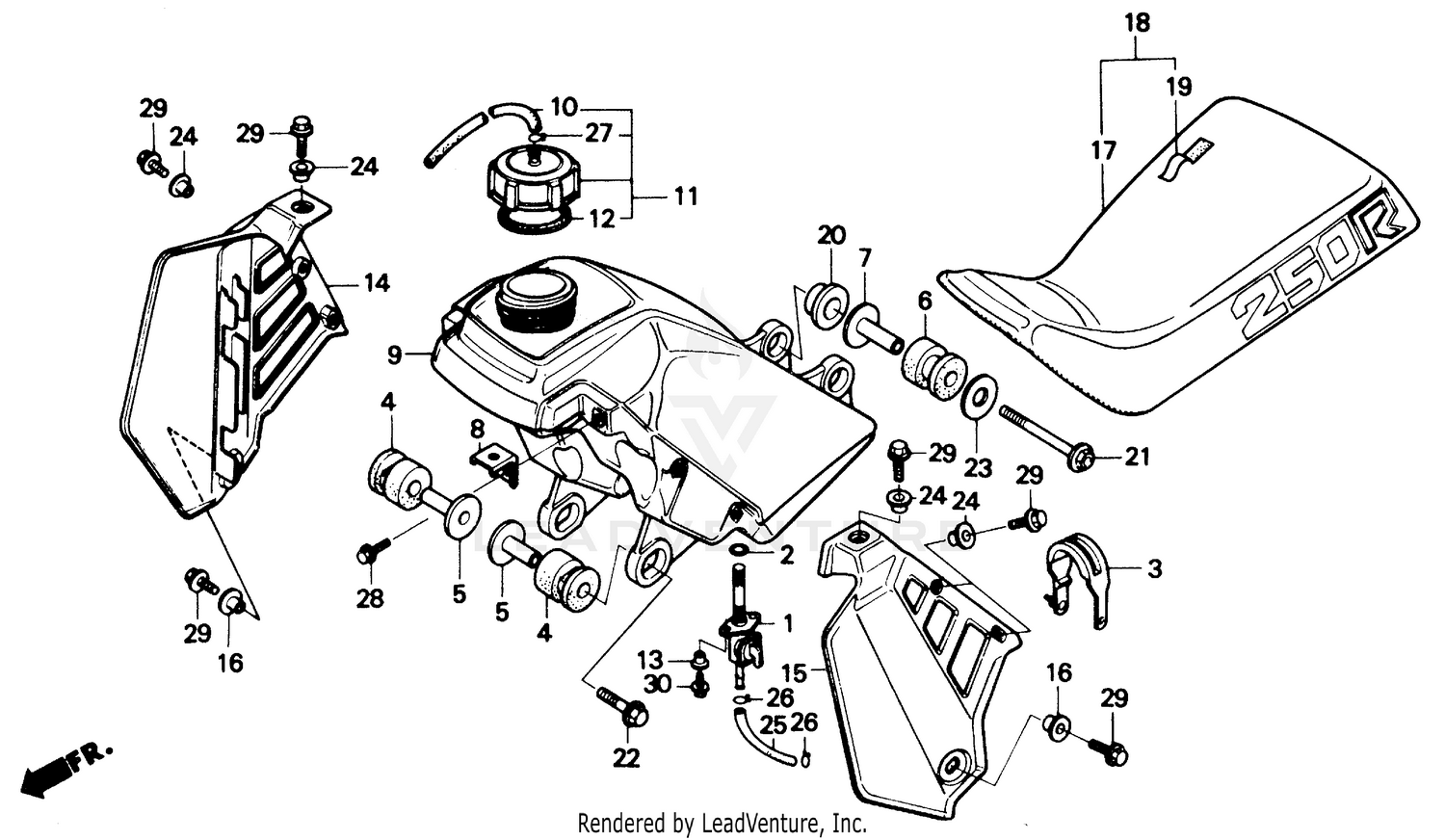

Fuel Tank Seat Diagram

Item MSRP Qty
#1 PETCOCK ASSY.
16950-HA2-005
Superseded by 16950-HA2-015
 $131.75
Available to order.
Add to View Price
#1 PETCOCK ASSY.
16950-HA2-015
 $131.75
Unavailable
#2 O-RING (11.8X3.55)
16997-467-000
 $2.42
Available to order.
Add to View Price
#3 RUBBER, TANK SETTING (NOT AVAILABLE)
17504-HA2-670
 $10.31
Available to order.
Add to View Price
#4 RUBBER, FR. FUEL TANK MOUNTING (NOT AVAILABLE)
17505-HA2-000
 $5.70
Available to order.
Add to View Price
#5 COLLAR, FR. FUEL TANK MOUNTING (NOT AVAILABLE)
17506-HA2-000
 $7.08
Available to order.
Add to View Price
#6 RUBBER, RR. FUEL TANK MOUNTING (NOT AVAILABLE)
17507-HA2-000
 $9.45
Available to order.
Add to View Price
#7 COLLAR, RR. FUEL TANK MOUNTING (NOT AVAILABLE)
17508-HA2-000
 $6.24
Available to order.
Add to View Price
#8 BRACKET, SHROUD (UPPER) (NOT AVAILABLE)
17509-HA2-000
 $3.35
Available to order.
Add to View Price
#9 TANK, FUEL *R109* (PASSION RED)
17510-HA2-P00
 $430.22
Available to order.
Add to View Price
#9 TANK, FUEL *R109* (PASSION RED)
17510-HA2-770ZA
Superseded by 17510-HA2-P00
 $430.22
Unavailable
#9 TANK, FUEL *R109* (PASSION RED)
17510-HA2-670ZA
Superseded by 17510-HA2-P00
 $430.22
Unavailable
#10 TUBE, FUEL CAP BREATHER
17521-429-000
 $8.38
Available to order.
Add to View Price
#10 TUBE, FUEL CAP BREATHER
17521-HA2-670
 $8.40
Available to order.
Add to View Price
#11 CAP, FUEL TANK
17620-MA0-405
 $33.97
Unavailable
#11 CAP, FUEL TANK
17620-HA2-670
Superseded by 17620-MA0-405
 $33.97
Unavailable
#11 CAP, FUEL TANK
17620-KN5-670
Superseded by 17620-MA0-405
 $33.97
Unavailable
#12 GASKET, FUEL TANK CAP
17624-467-020
 $4.07
Unavailable
#13 COLLAR, FUEL TANK SETTING
17626-467-000
 $5.72
Available to order.
Add to View Price
#14 SHROUD, R. RADIATOR *R109* (WOL) (PASSION RED)
19030-HA2-670ZA
 $96.98
Available to order.
Add to View Price
#15 SHROUD, L. RADIATOR *R109* (WOL) (PASSION RED)
19035-HA2-670ZA
 $96.98
Available to order.
Add to View Price
#16 COLLAR (6X22)
19509-HA2-000
 $4.23
Unavailable
#18 SEAT COMP.(NH1L)
77100-HA2-670
Superseded by 77100-HA2-415
 $182.30
Unavailable
#19 COVER, SEAT
77101-HA2-670
Superseded by 77101-HA2-830
 $124.85
Available to order.
Add to View Price
#20 SPACER, FR. CATCH (NOT AVAILABLE)
80108-HA2-000
 $3.01
Available to order.
Add to View Price
#21 BOLT, FLANGE (8X45) (NOT AVAILABLE)
90002-HA2-000
 $2.74
Available to order.
Add to View Price
#22 BOLT, FLANGE (8X55)
96300-08055-00
 $2.62
Available to order.
Add to View Price
#23 WASHER (8.5X26)
90504-MA6-000
 $1.88
Available to order.
Add to View Price
#24 WASHER, FR. FENDER SETTING
90556-044-000
 $4.37
Available to order.
Add to View Price
#25 BULK HOSE, FUEL (7.5X8000) (7.3X120)
95001-75008-60M
 $120.33
Available to order.
Add to View Price
#26 CLIP, TUBE (B12)
95002-02120
 $2.00
Available to order.
Add to View Price
#27 CLIP, TUBE (C9)
95002-50000
 $1.30
Available to order.
Add to View Price
#28 BOLT, FLANGE (6X10)
96000-06010-00
Superseded by 96001-06010-00
 $1.64
Available to order.
Add to View Price
#28 BOLT, FLANGE (6X10)
96001-06010-00
 $1.64
Unavailable
#29 BOLT, FLANGE (6X12)
96000-06012-00
Superseded by 96001-06012-00
 $1.79
Available to order.
Add to View Price
#29 BOLT, FLANGE (6X12)
96001-06012-00
 $1.79
Unavailable
#30 BOLT, FLANGE (6X16)
96000-06016-00
Superseded by 96001-06016-00
 $1.05
Available to order.
Add to View Price
#30 BOLT, FLANGE (6X16)
96001-06016-00
 $1.05
Unavailable
