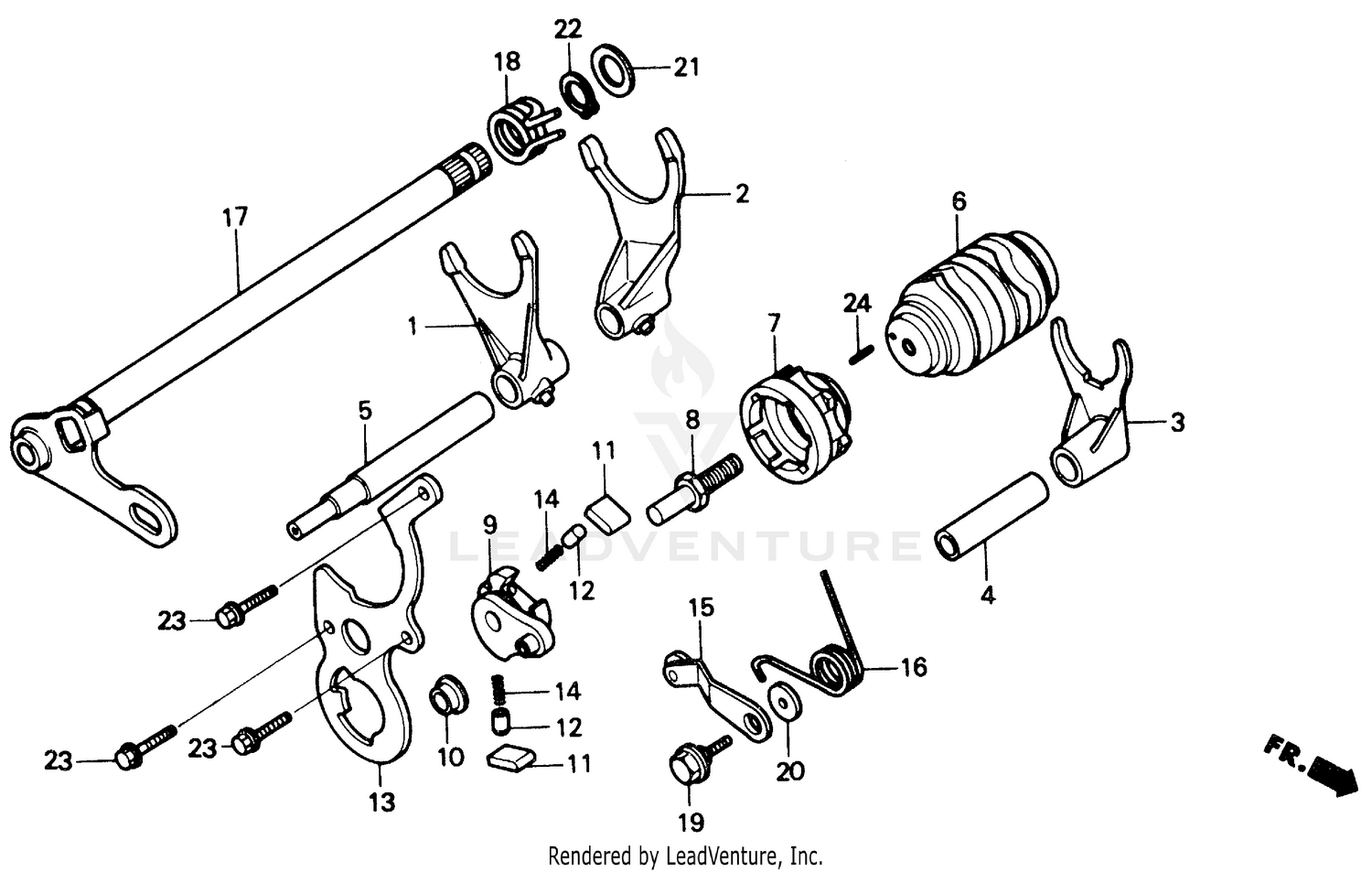

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT
24211-HA2-000
|
$64.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, L. GEARSHIFT
24221-HA2-000
|
$64.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK, CENTER GEARSHIFT
24231-HA2-000
|
$55.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, GEARSHIFT FORK MAIN
24265-HA2-000
|
$16.07 | ||
|
Unavailable |
|||
|
#5
SHAFT, GEARSHIFT FORK CENTER
24266-HA2-000
|
$24.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRUM, GEARSHIFT
24311-HA2-000
|
$87.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
CENTER, SHIFT DRUM
24312-KA3-741
|
$75.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, SHIFTER
24315-KA3-710
|
$22.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIFTER, DRUM
24320-KA3-740
|
$43.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SHIFTER
24322-HA0-000
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SHIFTER
24322-KA3-740
Superseded by 24322-HA0-000
|
$6.61 | ||
|
Unavailable |
|||
|
#11
PAWL, RATCHET
24324-KA3-740
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUNGER, PAWL
24326-360-000
Superseded by 24326-360-010
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUNGER, PAWL
24326-360-010
|
$6.24 | ||
|
Unavailable |
|||
|
#13
PLATE, GUIDE (NOT AVAILABLE)
24328-HA2-000
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, PAWL PLUNGER
24329-KA3-740
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, DRUM (NOT AVAILABLE)
24430-HA2-000
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, DRUM STOPPER
24435-HA2-000
Superseded by 24435-HB9-000
|
$3.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, DRUM STOPPER
24435-HB9-000
|
$3.63 | ||
|
Unavailable |
|||
|
#17
SPINDLE, GEARSHIFT
24610-HA2-000
|
$85.83 | ||
|
Unavailable |
|||
|
#18
SPRING, GEARSHIFT RETURN
24651-KA4-740
|
$5.01 | ||
|
Unavailable |
|||
|
#19
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-041-000
Superseded by 90023-041-010
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-041-010
|
$2.45 | ||
|
Unavailable |
|||
|
#20
WASHER, DRUM STOPPER
90417-360-000
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER B, THRUST (14MM)
90428-958-000
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP (OUTER) (14MM)
94510-14000
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X16)
96000-06016-00
Superseded by 96001-06016-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.05 | ||
|
Unavailable |
|||
|
#24
ROLLER (4X8)
96220-40080
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
