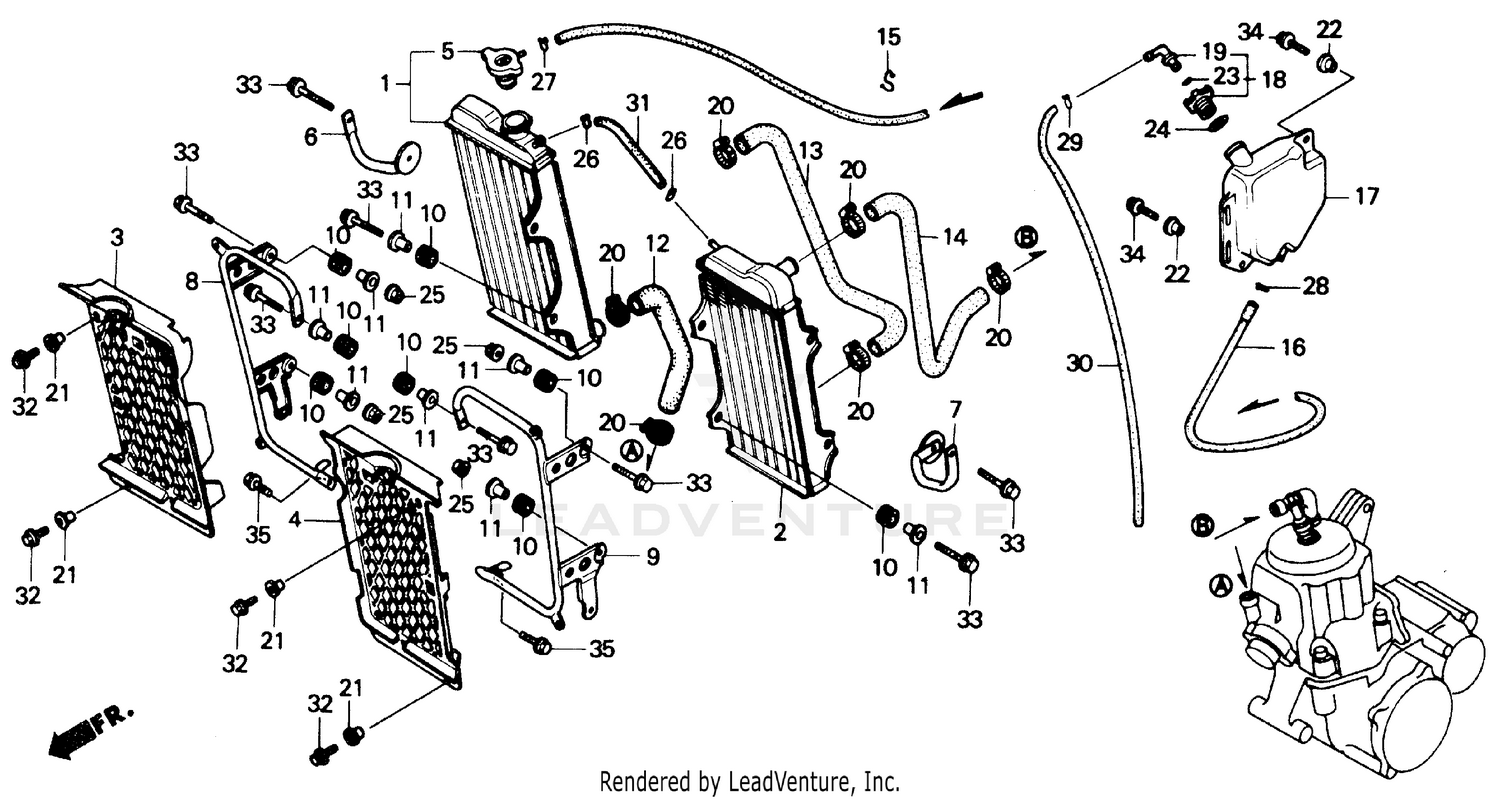

Radiator Diagram

Item MSRP Qty
#1 RADIATOR, R. (NOT AVAILABLE)
19010-HA2-003
 $239.35
Available to order.
Add to View Price
#2 RADIATOR, L. (NOT AVAILABLE)
19015-HA2-003
 $189.45
Available to order.
Add to View Price
#3 GRILLE, R. RADIATOR (NOT AVAILABLE)
19033-HA2-000
 $31.65
Available to order.
Add to View Price
#4 GRILLE, L. RADIATOR (NOT AVAILABLE)
19034-HA2-000
 $33.44
Available to order.
Add to View Price
#5 CAP, RADIATOR
19037-KA4-701
Superseded by 19045-MZ1-621
 $58.26
Available to order.
Add to View Price
#6 STAY, R. RADIATOR (NOT AVAILABLE)
19043-HA2-670
 $13.36
Unavailable
#7 STAY, L. RADIATOR
19044-HA2-670
 $15.30
Unavailable
#8 GUARD, R. RADIATOR (NOT AVAILABLE)
19045-HA2-670
 $52.69
Available to order.
Add to View Price
#9 GUARD, L. RADIATOR (NOT AVAILABLE)
19046-HA2-670
 $70.50
Available to order.
Add to View Price
#10 RUBBER, RADIATOR SETTING (B)
19052-HA2-000
 $4.11
Available to order.
Add to View Price
#11 COLLAR, RADIATOR SETTING (B)
19056-HA2-000
 $8.19
Available to order.
Add to View Price
#12 HOSE A, WATER (NOT AVAILABLE)
19061-HA2-000
 $8.49
Available to order.
Add to View Price
#13 HOSE B, WATER (NOT AVAILABLE)
19062-HA2-000
 $16.60
Available to order.
Add to View Price
#14 HOSE C, WATER (NOT AVAILABLE)
19063-HA2-000
 $14.94
Available to order.
Add to View Price
#16 TUBE, BREATHER (NOT AVAILABLE)
19066-HA2-000
 $12.71
Available to order.
Add to View Price
#17 TANK, RESERVE
19101-HA2-670
Superseded by 19101-HA2-505
 $26.27
Available to order.
Add to View Price
#18 CAP, RESERVE TANK
19102-HA2-000
Superseded by 19102-HB9-670
 $23.73
Unavailable
#18 CAP, RESERVE TANK
19102-HB9-670
 $23.73
Unavailable
#19 JOINT, RESERVE TANK
19105-HA2-000
Superseded by 19105-HB9-670
 $4.90
Unavailable
#19 JOINT, RESERVE TANK
19105-HB9-670
 $4.90
Unavailable
#20 CLAMP, WATER HOSE
19506-KA4-000
 $10.63
Available to order.
Add to View Price
#21 COLLAR, GEARSHIFT LEVER SETTING
90522-170-700
 $2.10
Available to order.
Add to View Price
#22 WASHER, NUMBER BRACKET SETTING
90563-045-000
 $3.75
Available to order.
Add to View Price
#23 O-RING (7.7X2.3) (ARAI)
91301-PC9-003
 $3.35
Available to order.
Add to View Price
#23 O-RING (7.7X2.3) (ARAI)
91308-283-000
Superseded by 91301-PC9-003
 $3.35
Unavailable
#23 O-RING (7.7X2.3) (ARAI)
91313-393-003
Superseded by 91301-PC9-003
 $3.35
Unavailable
#24 O-RING (21.5X3.1)
91352-HA2-003
 $3.37
Available to order.
Add to View Price
#25 NUT, FLANGE (6MM)
94050-06000
 $0.60
Available to order.
Add to View Price
#26 CLIP, TUBE (A13)
95002-01130
 $5.02
Available to order.
Add to View Price
#27 CLIP, TUBE (B10)
95002-02100
 $1.89
Available to order.
Add to View Price
#28 CLIP, TUBE (B12)
95002-02120
 $2.00
Available to order.
Add to View Price
#29 CLIP, TUBE (C11)
95002-70000
 $1.66
Available to order.
Add to View Price
#30 BULK HOSE, VINYL (7X11X1000) (7X11X510)
95003-19001-10M
 $4.67
Available to order.
Add to View Price
#31 BULK HOSE (7.3X1000)
95005-75001-20M
 $26.02
Available to order.
Add to View Price
#32 BOLT, FLANGE (6X10)
96000-06010-00
Superseded by 96001-06010-00
 $1.64
Available to order.
Add to View Price
#32 BOLT, FLANGE (6X10)
96001-06010-00
 $1.64
Unavailable
#33 BOLT, FLANGE (6X28)
96000-06028-00
Superseded by 96001-06028-00
 $2.17
Available to order.
Add to View Price
#33 BOLT, FLANGE (6X28)
96001-06028-00
 $2.17
Unavailable
#34 BOLT, FLANGE (6X16)
96300-06016-00
 $1.02
Available to order.
Add to View Price
#35 BOLT, FLANGE (8X12)
96300-08012-00
 $3.08
Available to order.
Add to View Price
