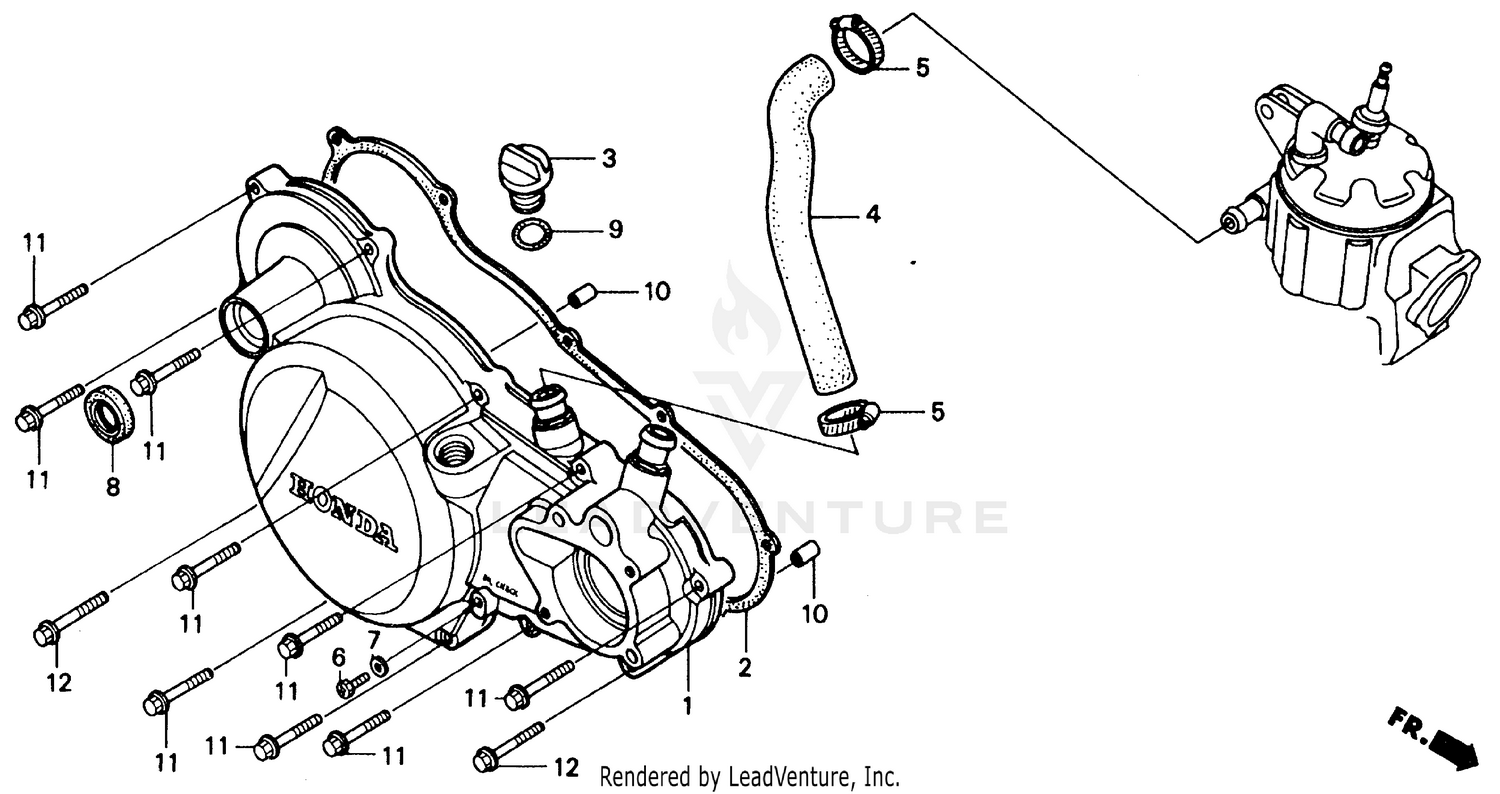

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11340-HA2-670
|
$188.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, R. CRANKCASE COVER
11395-HA2-P00
|
$29.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, R. CRANKCASE COVER
11395-HA2-003
Superseded by 11395-HA2-P00
|
$29.67 | ||
|
Unavailable |
|||
|
#2
GASKET, R. CRANKCASE COVER
11395-HA2-306
Superseded by 11395-HA2-P00
|
$29.67 | ||
|
Unavailable |
|||
|
#3
CAP, OIL
15611-381-000
Superseded by 25611-733-000
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, WATER
19501-HA2-000
|
$11.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, WATER HOSE
19506-KA4-000
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, OIL CHECK
90037-360-000
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL (20X28X5)
91202-KA4-003
Superseded by 91204-KF0-003
|
$7.86 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL (20X28X5)
91204-KF0-003
|
$7.86 | ||
|
Unavailable |
|||
|
#9
O-RING (16MM)
91303-800-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN A, DOWEL (8X14)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X32)
96000-06032-00
Superseded by 96001-06032-00
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X32)
96001-06032-00
|
$1.53 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE (6X40)
96000-06040-00
Superseded by 96001-06040-00
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.17 | ||
|
Unavailable |
|||
