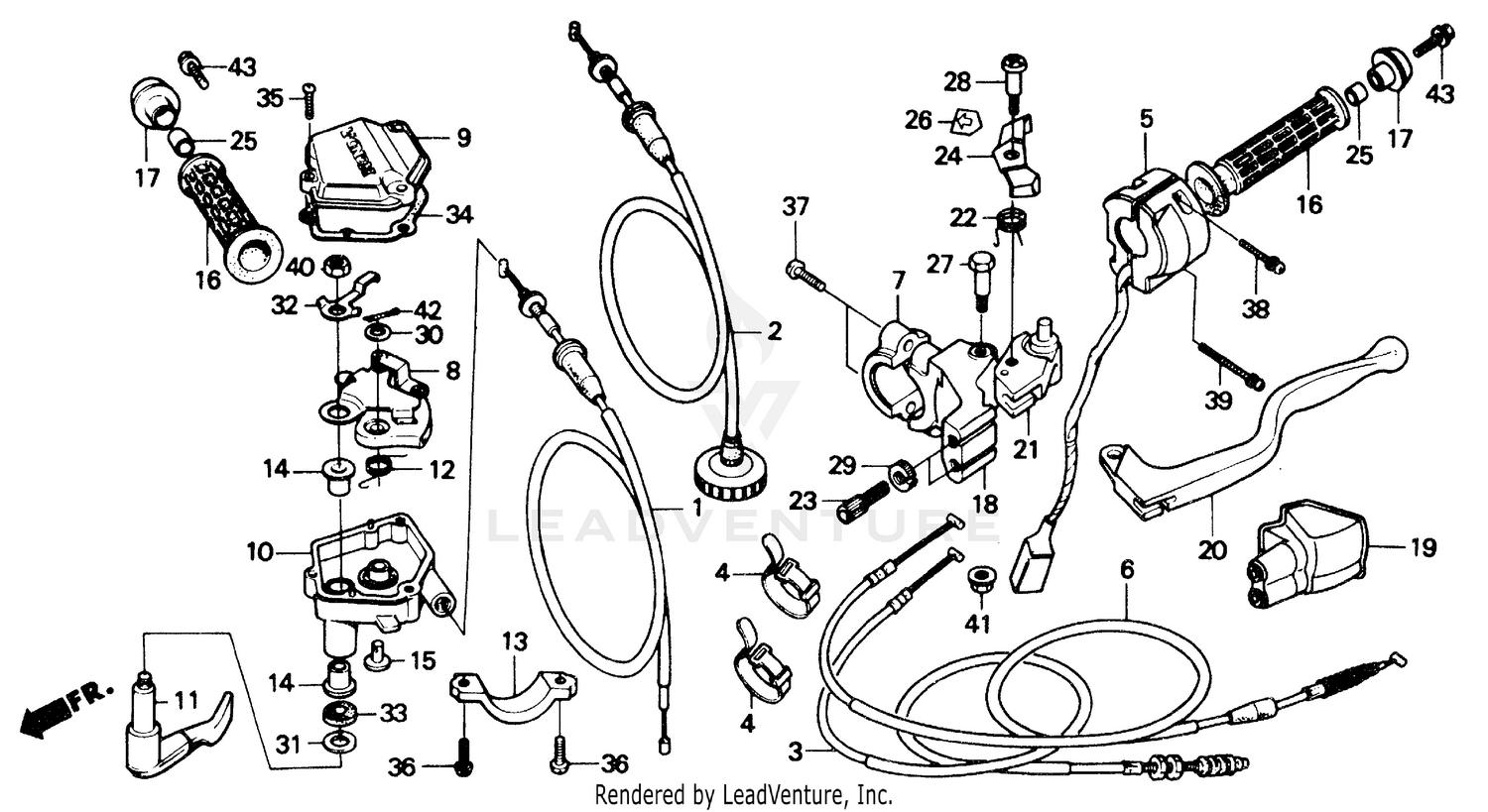

Handle Switch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CABLE SET, THROTTLE (NOT AVAILABLE)
17920-HA2-305
|
$41.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, CLUTCH
22870-HA2-000
|
$23.27 | ||
|
Unavailable |
|||
|
#4
BAND B1, CABLE
32161-404-000
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY., LIGHTING ENGINE
35200-HA2-671
Superseded by 35200-HA2-674
|
$100.31 | ||
|
Unavailable |
|||
|
#5
SWITCH ASSY., LIGHTING ENGINE
35200-HA2-672
Superseded by 35200-HA2-674
|
$100.31 | ||
|
Unavailable |
|||
|
#5
SWITCH ASSY., LIGHTING ENGINE
35200-HA2-673
Superseded by 35200-HA2-674
|
$100.31 | ||
|
Unavailable |
|||
|
#5
SWITCH ASSY., LIGHTING ENGINE
35200-HA2-674
|
$100.31 | ||
|
Unavailable |
|||
|
#6
CABLE, PARKING BRAKE (NOT AVAILABLE)
43455-HA2-670
|
$20.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, MASTER CYLINDER
45517-961-000
|
$17.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
LINK, THROTTLE
53140-HA2-000
|
$34.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, THROTTLE CASE
53141-HB9-000
|
$29.44 | ||
|
Unavailable |
|||
|
#9
COVER, THROTTLE CASE
53141-HA2-670
Superseded by 53141-HB9-000
|
$29.44 | ||
|
Unavailable |
|||
|
#10
CASE, THROTTLE LEVER
53142-HB9-000
|
$42.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE, THROTTLE LEVER
53142-HA2-670
Superseded by 53142-HB9-000
|
$42.65 | ||
|
Unavailable |
|||
|
#11
LEVER, THROTTLE
53145-HA0-000
Superseded by 53145-HA0-770
|
$27.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, THROTTLE
53145-HA0-770
|
$27.87 | ||
|
Unavailable |
|||
|
#12
SPRING, THROTTLE RETURN
53146-HA2-000
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, THROTTLE CASE
53147-965-000
|
$21.47 | ||
|
Unavailable |
|||
|
#14
BUSH, THROTTLE PIVOT
53148-HA0-000
|
$9.61 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, THROTTLE CENTER
53150-HA2-000
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#16
GRIP, HANDLE
53165-958-010
|
$15.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUARD, HANDLEBAR END
53167-958-680
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, L. HANDLEBAR
53172-961-000
|
$56.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, L. HANDLEBAR
53177-HA5-000
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
LEVER, L. HANDLEBAR
53178-965-000
|
$30.69 | ||
|
Unavailable |
|||
|
#21
ARM ASSY., PARKING BRAKE
53180-961-010
|
$60.46 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, PARKING BRAKE LEVER
53191-961-010
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, CABLE ADJUSTING
53192-268-000
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
LEVER, PARKING BRAKE LOCK
53192-965-000
|
$25.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR, NUMBER BRACKET SETTING
84906-118-000
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#26
MARK, PARKING BRAKE LEVER (FRENCH) (NOT AVAILABLE)
87574-HA5-640
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HANDLE LEVER PIVOT
90114-961-000
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PARKING BRAKE LEVER PIVOT
90115-961-000
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FIXING
90321-315-670
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, FLAT SCREW
90503-964-000
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER (9X20)
90504-HA0-000
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, LOCK (6MM)
90505-HA2-000
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#33
DUST SEAL (9X16X5) (NOK)
91210-HA0-003
Superseded by 91210-HA0-004
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#33
DUST SEAL (9X16X5) (NOK)
91210-HA0-004
|
$4.71 | ||
|
Unavailable |
|||
|
#34
GASKET
91354-HA2-000
Superseded by 91354-HA2-010
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN (4X12)
93500-04012-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN (5X18)
93500-05018-0G
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, OVAL (6X25)
93700-06025-0B
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW-WASHER (5X20)
93892-05020-07
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW-WASHER (5X32)
93892-05032-07
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, HEX. (6MM)
94002-06000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIN, SPLIT (1.0MM)
94201-10100
Superseded by 94201-10150
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIN, SPLIT (1.0MM)
94201-10150
|
$1.03 | ||
|
Unavailable |
|||
|
#43
BOLT, FLANGE (6X25)
95700-06025-07
Superseded by 95701-06025-07
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X25)
95701-06025-07
|
$1.79 | ||
|
Unavailable |
|||
