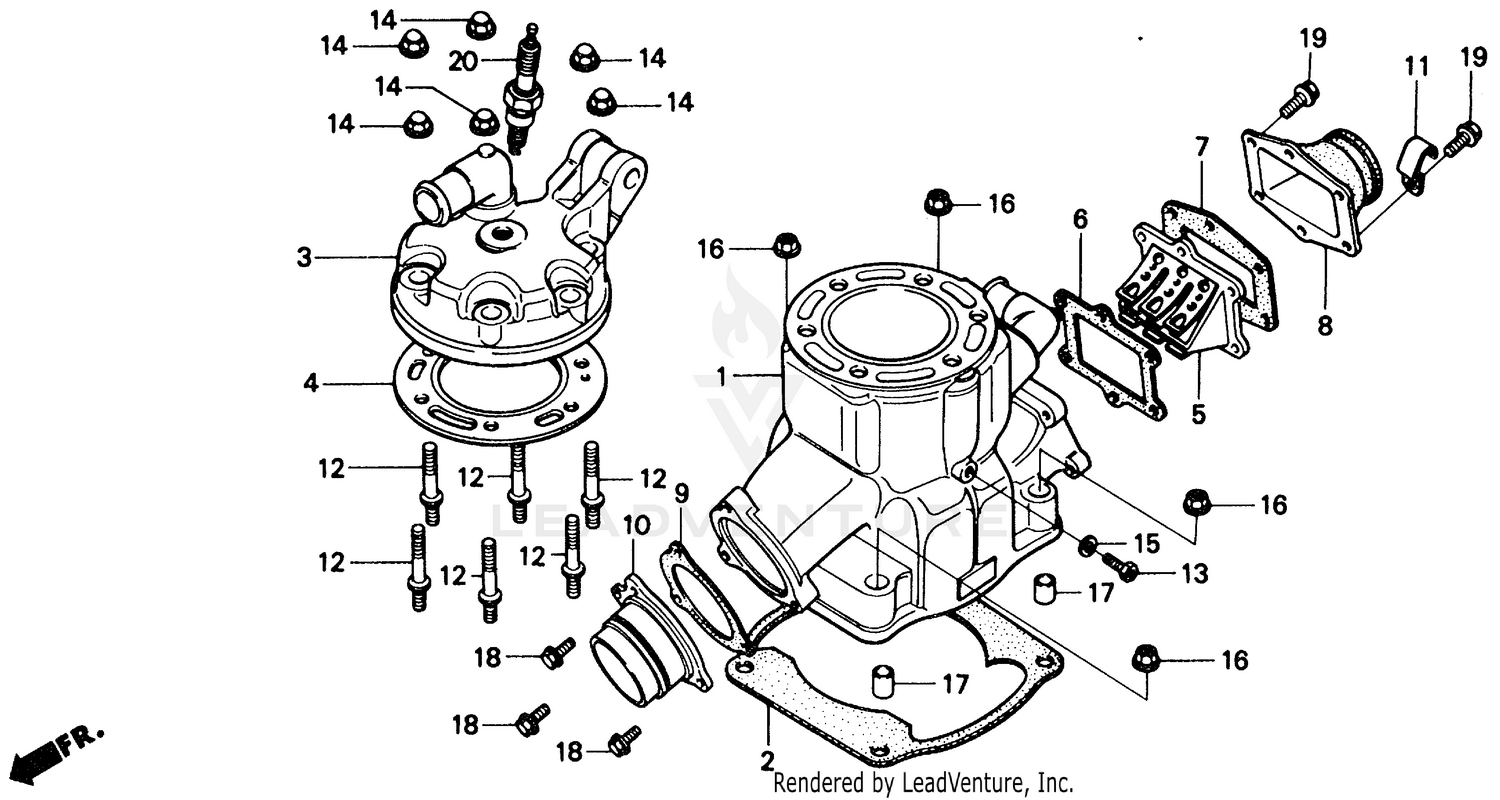

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER (NOT AVAILABLE)
12100-HA2-670
|
$480.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER
12191-HA2-306
|
$14.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER
12191-HA2-670
Superseded by 12191-HA2-306
|
$14.39 | ||
|
Unavailable |
|||
|
#3
CYLINDER HEAD (NOT AVAILABLE)
12200-HA2-670
|
$216.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12254-HA2-000
Superseded by 12254-KS7-881
|
$40.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12254-KS7-881
|
$40.71 | ||
|
Unavailable |
|||
|
#5
VALVE ASSY., REED (NOT AVAILABLE)
14100-HA2-671
Superseded by 14100-HA2-771
|
$168.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET A, REED VALVE
14132-KAE-000
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET A, REED VALVE
14132-430-000
Superseded by 14132-KAE-000
|
$4.87 | ||
|
Unavailable |
|||
|
#7
GASKET B, REED VALVE
14133-430-000
Superseded by 14133-430-306
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET B, REED VALVE
14133-430-306
|
$9.19 | ||
|
Unavailable |
|||
|
#8
INSULATOR, CARBURETOR
16210-HA2-670
Superseded by 16210-HA2-770
|
$63.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
INSULATOR, CARBURETOR
16210-HA2-770
|
$63.50 | ||
|
Unavailable |
|||
|
#9
GASKET, EX. PIPE
18291-HA2-003
Superseded by 18291-430-306
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, EX. PIPE
18291-430-000
Superseded by 18291-430-306
|
$5.91 | ||
|
Unavailable |
|||
|
#9
GASKET, EX. PIPE
18291-430-306
|
$5.91 | ||
|
Unavailable |
|||
|
#10
JOINT, EX. PIPE
18351-HA2-000
|
$86.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, WIRE (NOT AVAILABLE)
32111-HA2-000
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SPECIAL STUD
90011-HA2-000
|
$8.66 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, OIL CHECK
90037-360-000
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CAP (8MM)
90443-107-000
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (10MM)
94050-10000
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN A, DOWEL (12X20)
94301-12200
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X18)
96000-06018-00
Superseded by 96001-06018-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X18)
96001-06018-00
|
$1.79 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (6X22)
96000-06022-00
Superseded by 96001-06022-00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.37 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (BR8ES) (NGK)
98079-58816
Superseded by 98079-58846
|
$2.91 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (BR8ES) (NGK)
98079-58846
|
$2.91 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (BR8ES) (NGK)
98079-58864
Superseded by 98079-58846
|
$2.91 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (BR9ES) (NGK)
98079-59816
Superseded by 98079-59847
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPARK PLUG (BR9ES) (NGK)
98079-59847
|
$2.70 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (BR9ES) (NGK)
98079-59847-01
Superseded by 98079-59847
|
$2.70 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (BR9ES) (NGK)
98079-59864
Superseded by 98079-59847
|
$2.70 | ||
|
Unavailable |
|||
