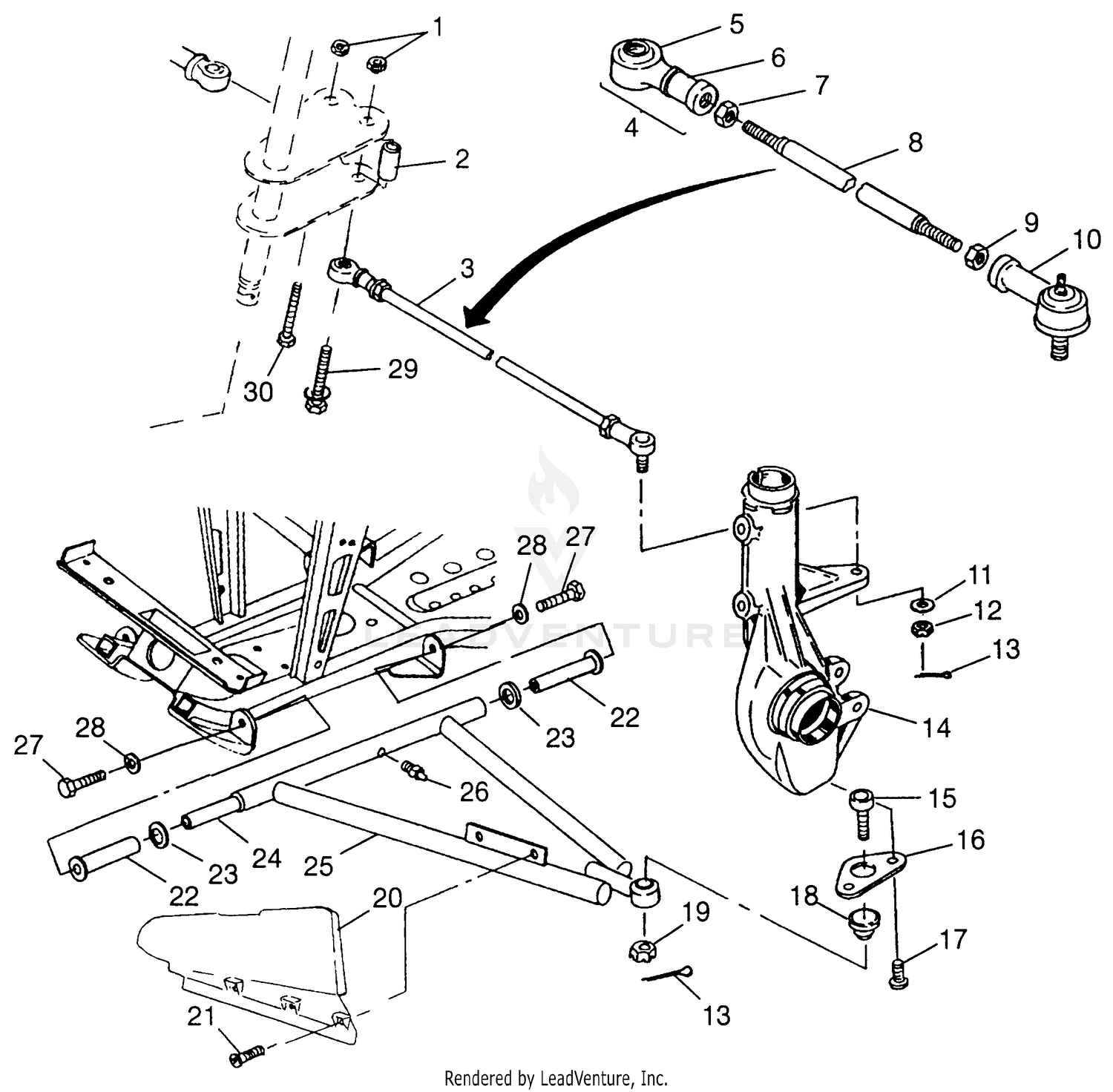

A-arm/strut Mounting Xplorer 500 W97cd50a (4941354135c002) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT LOCK(10)
7542403
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING
5333367
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
TIE ROD,KIT,13.4,4X4
1822202
Superseded by 2201741
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD END ASM,/SEAL BOOT
1822179
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT, SEAL, ROD END
5410540
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD END,RH.THRD.
7061015
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT HEX(10)
7542401
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD, TIE
5020768
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, LH, 10 MM.(10)
7546902
|
$3.29 | ||
|
Unavailable |
|||
|
#10
ROD END,LH,W/FTG,10 MM.
7060171
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER(10)
7555806
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, CASTLE(10)
7546904
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN COTTER(10)
7661203
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Asm., Hubstrut
-------
|
|||
|
Unavailable |
|||
|
#15
BALL-JOINT,GREASELESS,STRUT
7080673
Superseded by 7061158
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET-BALL JOINT
5211121
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOOT-BALLJOINT,GREASELESS,STRT
5410548
Superseded by 5412658
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-3/8-24 HX CA GR5-Y
7542438
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIELD,LH.CV,BLK.
5431837
|
$28.99 | ||
|
Unavailable |
|||
|
#20
SHIELD,RH.CV,BLK.
5431838
|
$28.99 | ||
|
Unavailable |
|||
|
#21
SCREW(10)
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Bushing, A-Arm, Long
5431596
Superseded by 5436973
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSHING,A-ARM SPACER(10)
5020677
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Shaft, A-Arm
5020681
Superseded by 5133806
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Kit, A-Frame, LH
2200736
Superseded by 2202280
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Kit, A-Frame, RH
2200737
Superseded by 2202281
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
ZERK,FITTING,THREADED(10)
7080433
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Screw
7515458
Superseded by 7512492
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER(10)
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW(10)
7515554
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT(10)
7515415
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
