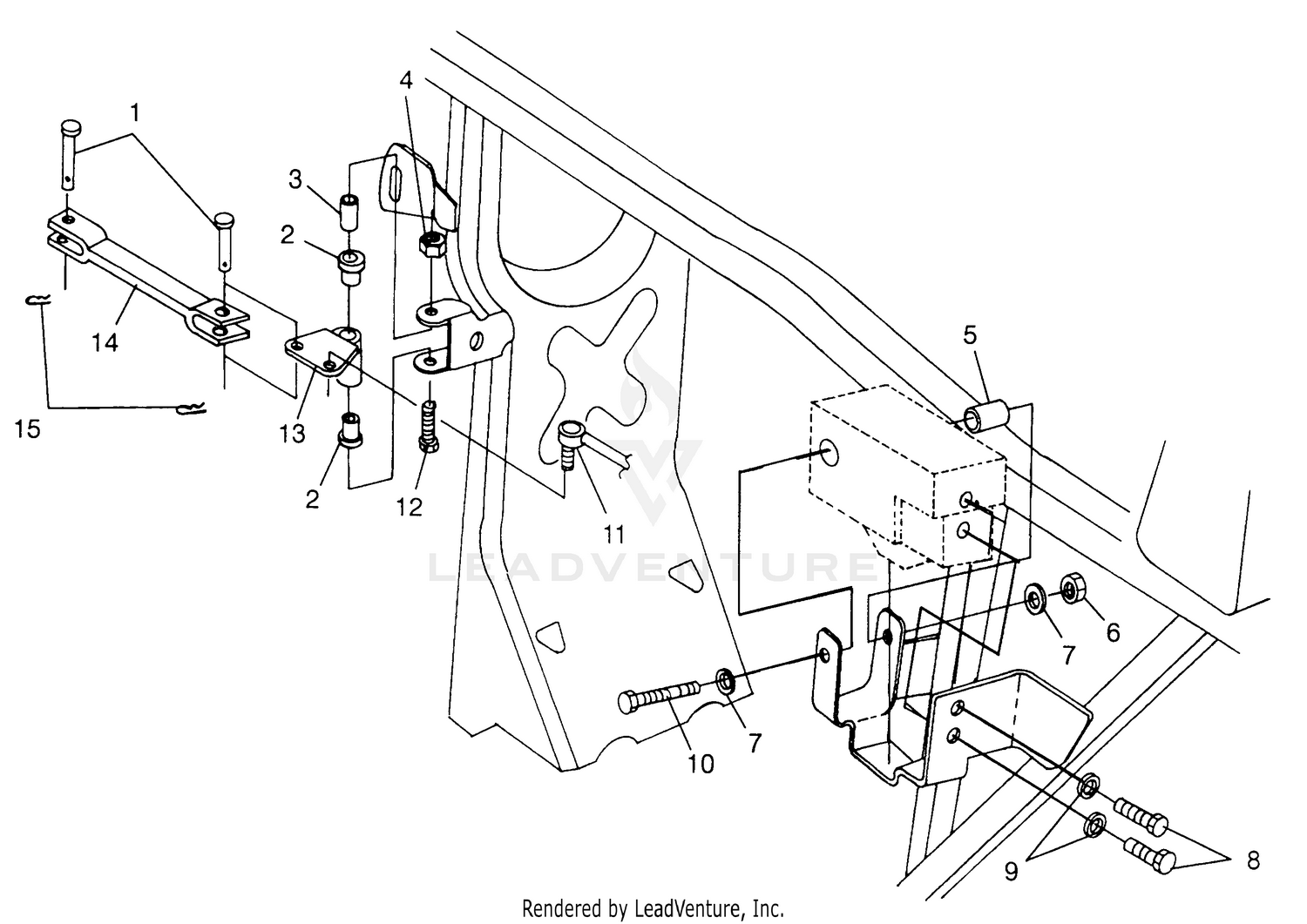

Frame Mounting Xplorer 500 W97cd50a (4941354135c001) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN,CLEVIS
7661013
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING-PEDAL PIVOT
5431107
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE,PIVOT,(INTERNAL)
5020850
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT-LOCK(10)
7542124
Superseded by 7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER
5333456
|
|||
|
Unavailable |
|||
|
#6
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Unavailable |
|||
|
#7
WASHER(10)
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT(10)
7512269
|
|||
|
Unavailable |
|||
|
#9
WASHER(10)
7552605
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT(10)
7512249
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Rod End, LH
-------
|
|||
|
Unavailable |
|||
|
#12
SCREW(10)
7512144
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIVOT,SHIFT,BLK
1040494-067
|
|||
|
Unavailable |
|||
|
#14
ARM, SHIFT,(MACH)
5131277
|
|||
|
Unavailable |
|||
|
#15
PIN, COTTER(10)
7661103
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
