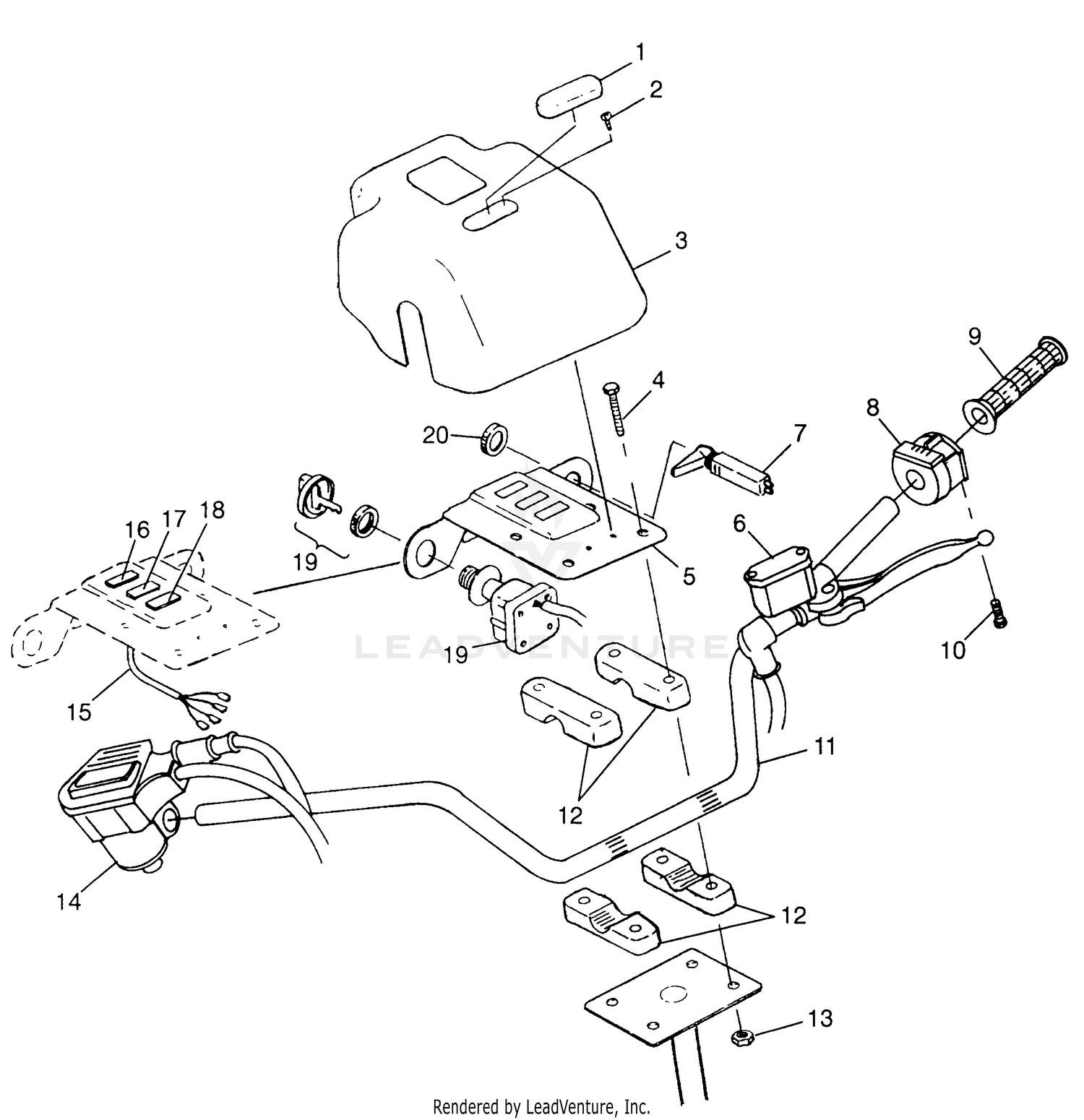

Handlebar - W97cd50a (4941354135b011) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER-LOGO, BLK
5432247-070
|
|||
|
Unavailable |
|||
|
#2
SCREW,(10)
7512024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PANEL,INST.,BLK
5432246-070
|
|||
|
Unavailable |
|||
|
#4
SCREW
7517216
|
|||
|
Unavailable |
|||
|
#5
BRKT,INST.PANEL,BLK
5241397-067
|
$24.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
Asm., Master Cylinder
-------
|
|||
|
Unavailable |
|||
|
#7
KIT-CHOKE CONTROL
2200188
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE,CHOKE CONTROL
7080579
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH,HI/LOW/OFF,LH,H'BAR
4110193
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Grip, Handlebar
5431030
Superseded by 5433834-070
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
2010055
|
|||
|
Unavailable |
|||
|
#11
HANDLEBAR,TUBE,BLK
5224715-067
|
$82.99 | ||
|
Unavailable |
|||
|
#12
BLOCK,H'BAR,(300)
5630629
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Asm., Throttle Control
-------
|
|||
|
Unavailable |
|||
|
#15
HARNESS,CON.PANEL
2460614
|
|||
|
Unavailable |
|||
|
#16
INDIC"NEUT./REV."
4040054
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
INDICATOR'HI-BEAM'WARN.
4040013
|
$25.79 | ||
|
Unavailable |
|||
|
#18
INDIC"HOT TEMPERATURE"
4040053
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SWITCH, IGNITION
4110194
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Cover-Key
5431964
Superseded by 5433534
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
7080229
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
