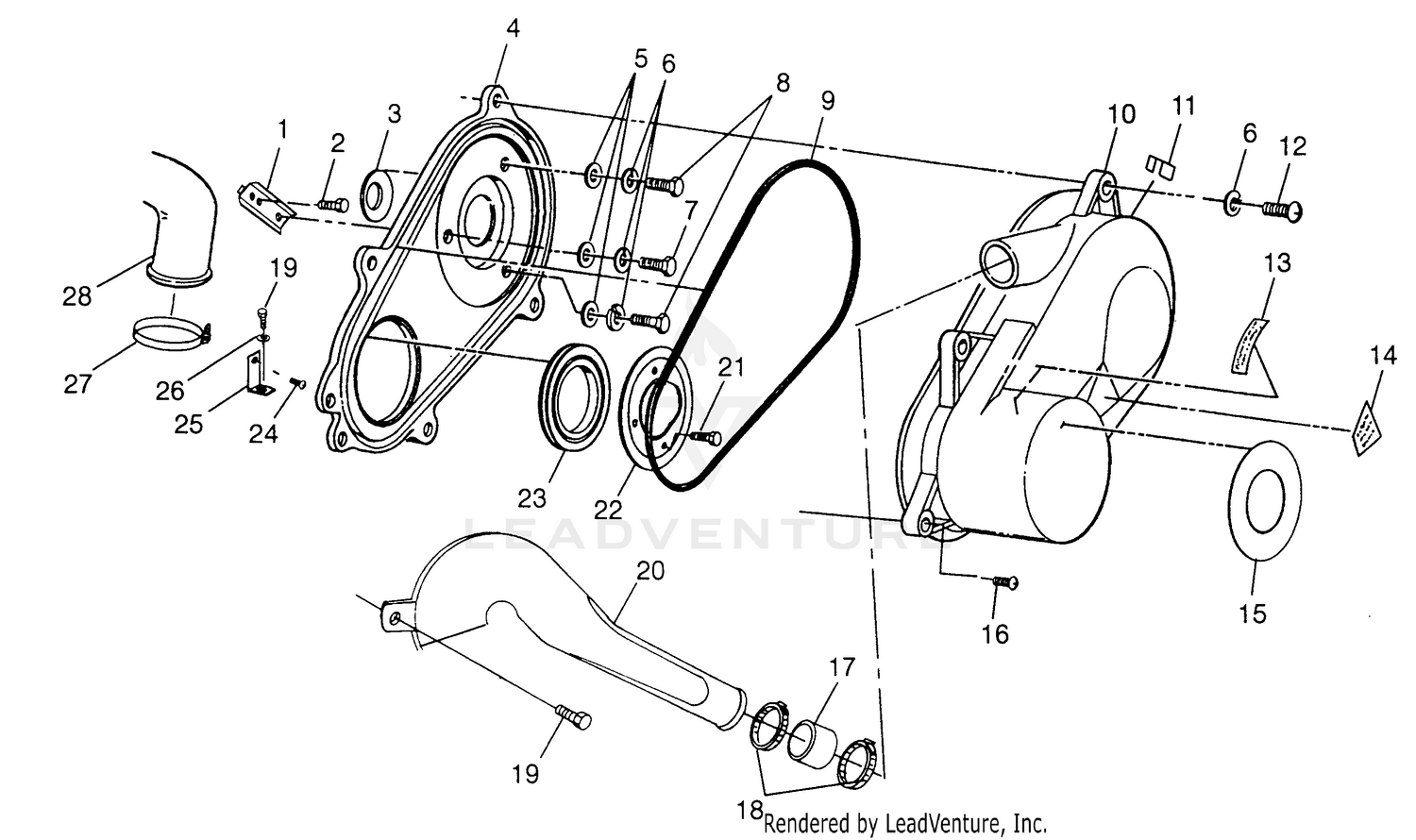

Clutch Cover Xplorer 500 W97cd50a (4941354135c009) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRKT,R.CLUTCH CVR,BLK.
1040519-067
|
|||
|
Unavailable |
|||
|
#2
BOLT(10)
7512240
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL,COVER CASE
5410489
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER,CLUTCH,INNER,500,SVC,KIT
2200793
Superseded by 2201160
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER(10)
7552605
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT(10)
7512277
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT(10)
7512278
|
$2.99 | ||
|
Unavailable |
|||
|
#9
SEAL,CLUTCHCOVER
5521301
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER-CLUTCH,FRONT,ST-801HS
5431961
Superseded by 5433542
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP,CLUTCH COVER(10)
7670051
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW(10)
7512093
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DECAL,CLUTCH COVER Substituted by 7078689
7074946
|
|||
|
Unavailable |
|||
|
#14
DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]
7072789
|
|||
|
Unavailable |
|||
|
#15
DECAL,AUTO.TRANSMISSION
7074782
|
|||
|
Unavailable |
|||
|
#16
SCREW(10)
7512094
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT,CLUTCH INTAKE
5410421
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DUCT,OUTLET,CLUTCH
5432145
|
|||
|
Unavailable |
|||
|
#21
Screw & Washer
-------
|
|||
|
Unavailable |
|||
|
#22
Bracket, Clutch Seal
5240409-067
Superseded by 5242046
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Seal, Cover Case
5410575
Superseded by 5412637
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW(10)
7512095
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRKT-CLUTCH COVER,BLK
5241156-067
|
|||
|
Unavailable |
|||
|
#26
WASHER(10)
7555935
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP, NARROW BAND(10)
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Duct, Air Inlet Clutch
-------
|
|||
|
Unavailable |
|||
