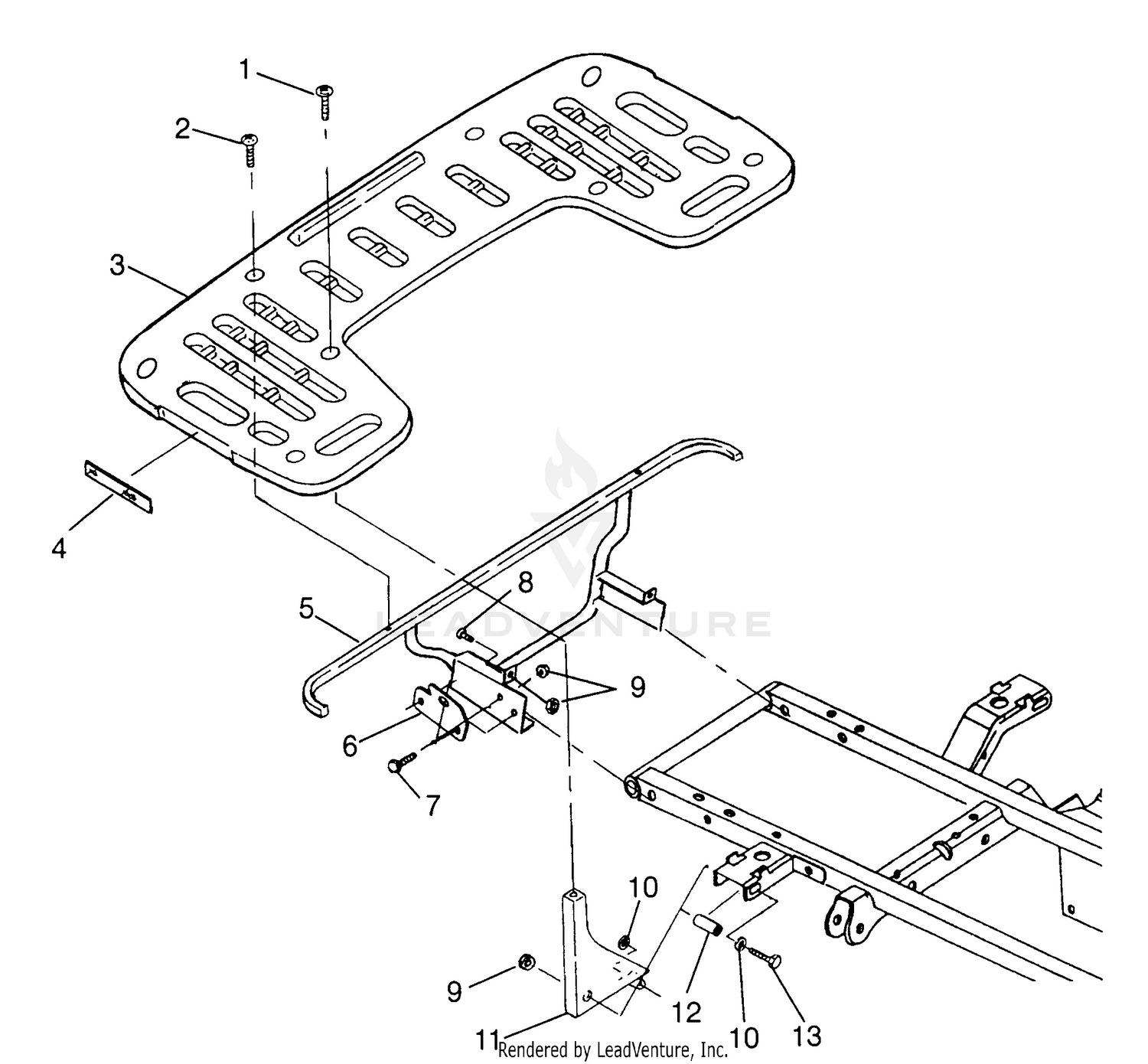

Rear Rack Mounting Xplorer 500 W97cd50a (4941354135a009) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7515193
Superseded by 7517686
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Screw
7515194
Superseded by 7517685
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Asm., Rack, Rear
2670174
Superseded by 2670174-070
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
REFLECTOR RED
2670070
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
SUPPORT,R.RACK,(500),BLK
1040490-067
|
|||
|
Unavailable |
|||
|
#6
BRACKET, SILENCER, FRAME
5241663-067
Superseded by 5241663
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT(10)
7512329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
7517264
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-.344X.688X.063 FL-Y
7555770
Superseded by 7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
MNT,LH.FRT,R.RACK,BLK
1040524-067
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
MNT,RH.FRT,R.RACK,BLK.
1040525-067
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
5333332-067
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW(10)
7515385
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
