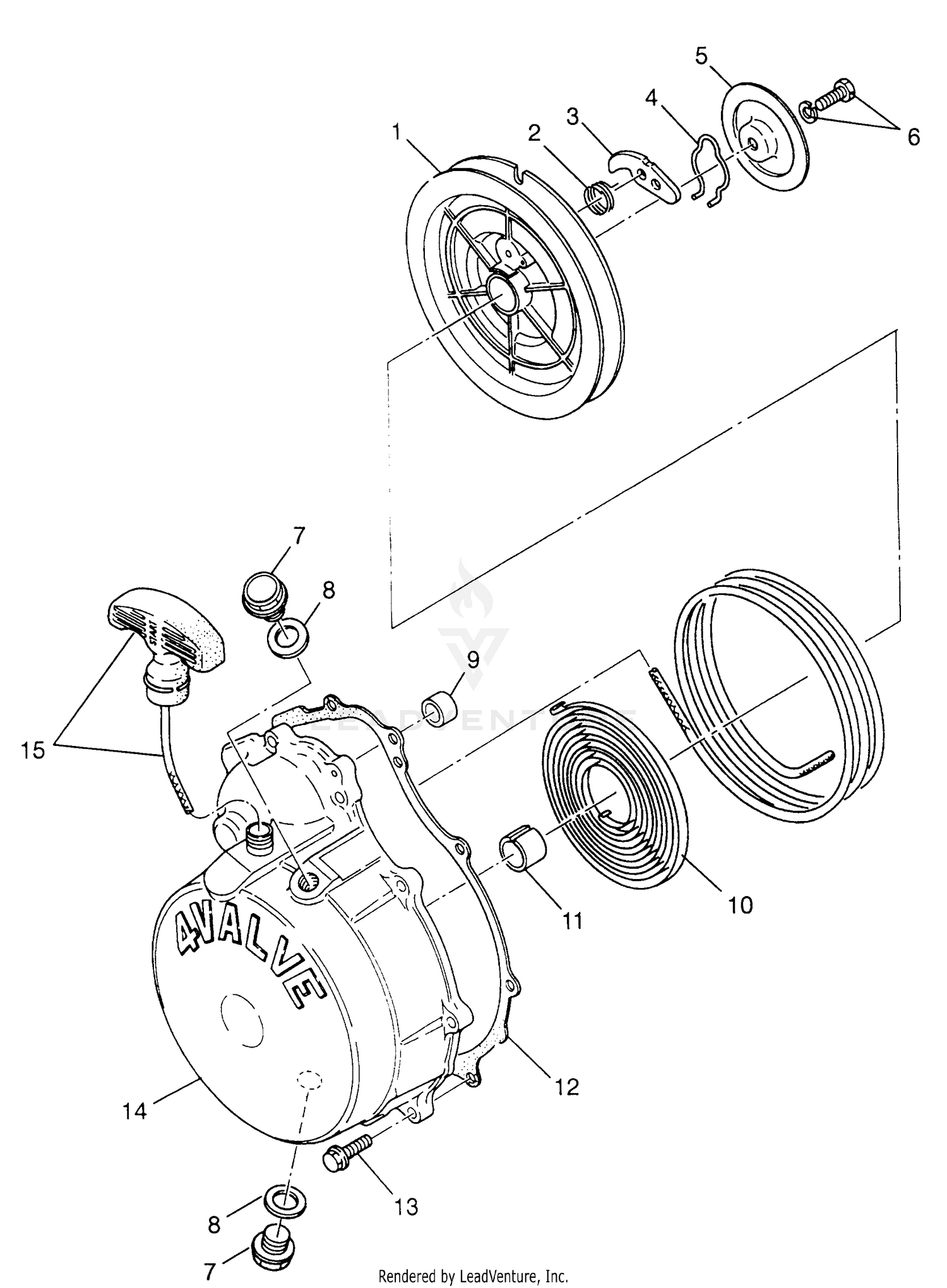

Recoil Starter Xplorer 500 W97cd50a (4941354135d007) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REEL,STARTER
3084822
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RETURN
3083463
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RATCHET
3083378
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, FRICTION
3083379
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, FRICTION
3084744
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT&WASHER ASM.
3085266
|
|||
|
Unavailable |
|||
|
#7
PLUG Substituted by 3086749
3083453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
3082956
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSHING, STARTER
3083669
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
3083185
|
$41.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH
3084750
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET,RECOIL
3084933
|
|||
|
Unavailable |
|||
|
#13
BOLT,FLANGE(10)
3084877
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RECOIL ASM. Substituted by 3085652
3085405
|
|||
|
Unavailable |
|||
|
#14
CASE,STARTER Substituted by 3085405
3085406
|
|||
|
Unavailable |
|||
|
#15
ROPE ASM
3085083
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
