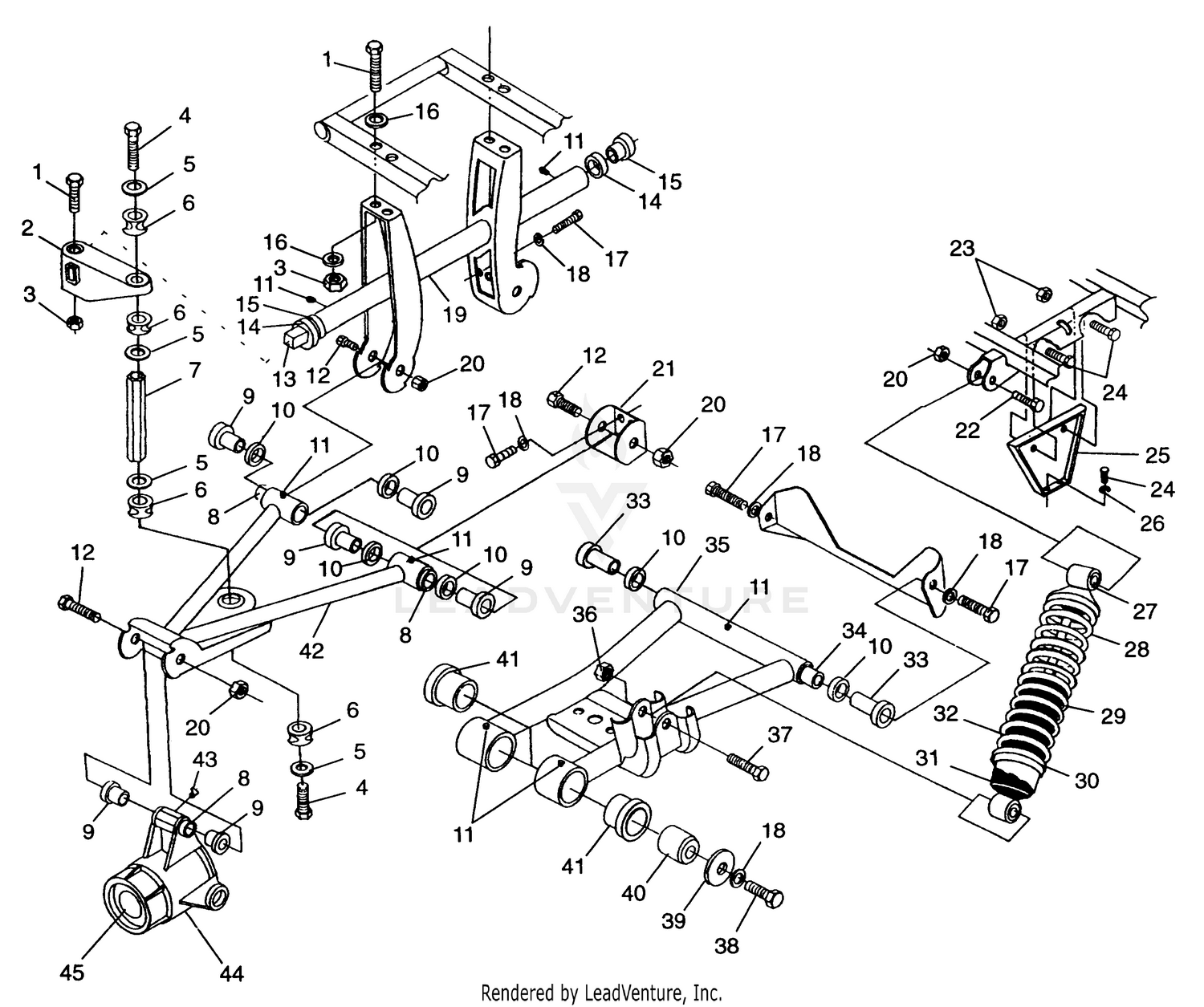

Rear Suspension Xplorer 500 W97cd50a (4941354135c005) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT(10)
7512329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM, STABILIZER BAR, BLACK
1580107-067
Superseded by 1543119-067
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT FLEX-LOC(10)
7542303
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW(10)
7517231
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER(10)
7555761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSHING,STAB.LINK
5432598
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD-LINKAGE, STABILIZER
5020827
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT,A-ARM,SHORT
5020826
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSHING, A-ARM., SHORT, BLACK
5432091
Superseded by 5439270
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSHING,A-ARM SPACER(10)
5020677
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ZERK,FITTING,THREADED(10)
7080433
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT(10)
7515472
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAR, STABILIZER TUBE, BLACK
5333393-067
Superseded by 5334114-329
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER(10)
7555939
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSHING, STABILIZER TUBE, BLACK
5432169
Superseded by 5438901
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Screw
7515458
Superseded by 7512492
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER(10)
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SUPPORT,STABILIZER, BLK Substituted by 1541322-067
1580097-067
|
|||
|
Unavailable |
|||
|
#20
NUT LOCK(10)
7542403
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Bracket, A-Arm Pivot
5242077-067
Superseded by 5247345
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT Substituted by 7515491
7515433
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT LOCK(10)
7542321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT(10)
7515321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SUPPORT,UPR.TRANS,BLK
5224667-067
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
RETAINER,SPRING
5131533
|
|||
|
Unavailable |
|||
|
#28
Spring, Compression, Rear, Black
7041453-067
Superseded by 7042311-067
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SLEEVE,SPRING PROTECTOR
5431032
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CAM,ADJUSTING SPRING
5630334
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHOCK,REAR,ATV
7041454
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
ADAPTER,SPRING,SEAT
5630351
|
|||
|
Unavailable |
|||
|
#33
Bushing, A-Arm, Long
5431596
Superseded by 5436973
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Shaft, A-Arm
5020681
Superseded by 5133806
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CONTROL,LH,LOW,BLK
1040445-067
|
|||
|
Unavailable |
|||
|
#35
CONTROL,RH,LOW,BLK.
1040446-067
|
|||
|
Unavailable |
|||
|
#36
NUT-LOCK(10)
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT(10)
7515415
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW(10)
7517297
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER(10)
7555936
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BUSHING,BRNG.CARRIER
5020825
Superseded by 5131883
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BUSHING, CONTROL, LOWER, BLACK
5432092
Superseded by 5438902
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
ARM,LH,UP.CONTROL,BLK
1040586-067
|
|||
|
Unavailable |
|||
|
#42
ARM,RH,UP.CONTROL,BLK
1040587-067
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
FITTING,LUBE,45 DEG.(10)
7080586
|
|||
|
Unavailable |
|||
|
#44
Carrier, Wheel Bearing
5131186
Superseded by 5134206
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Bearing, Wheel
3585502
Superseded by 3514635
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
