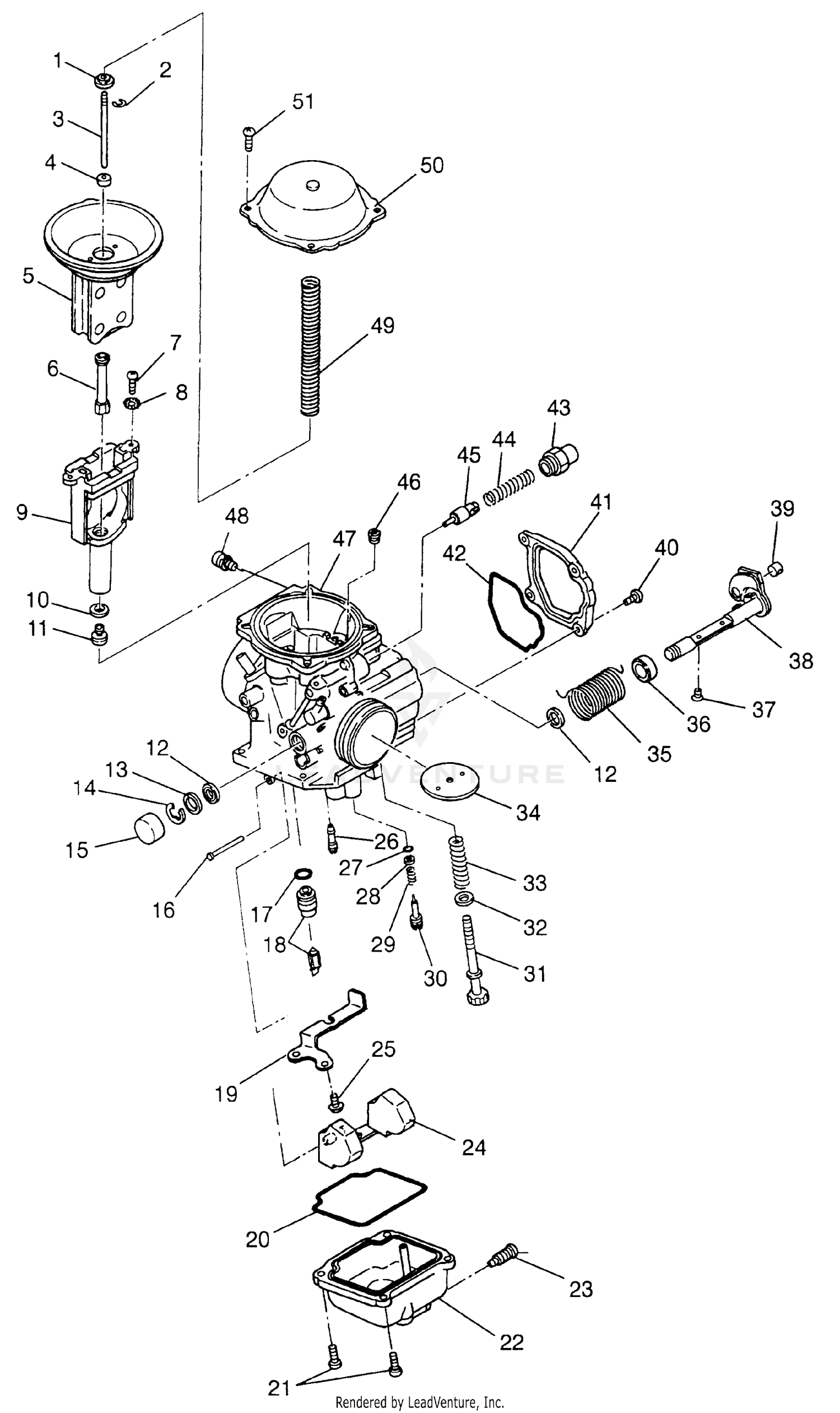

Carburetor Xplorer 500 W97cd50a (4941354135d009) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING
3130507
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
E-RING,(10)
3130508
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET NEEDLE,(5D78-2)
3130667
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Ring
3130509
Superseded by 3130752
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIAPHRAGM ASM.
3130506
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
JET,NEEDLE (P-1)
3130666
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
3130541
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,SPRING
3130540
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JETBLOCK ASM.
3130504
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (10)
3130014
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
MAIN JET,#142.5
3130566
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL
3130515
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PACKING
-------
|
|||
|
Unavailable |
|||
|
#14
E-RING
3130518
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP
3130519
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, FLOAT
3130361
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
3130533
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Valve, Needle, 1.5
3130668
Superseded by 3131360
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE
3130594
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
3130532
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
3130520
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FLOATBODY ASM.
3130590
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
3130521
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FLOAT ASM.
3130529
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
3130591
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
JET,PILOT,#42.5
3130526
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
3130522
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
3130523
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING
3130525
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
ADJUSTER
3130524
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, ADJ.
3130546
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
RING
3130545
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPRING
3130544
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
VALVE,THROTTLE
3130502
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING
3130589
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
RING
3130514
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW
3130501
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SHAFT ASM,THROTTLE
3130513
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
GUIDE,CABLE
3130543
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW
3130535
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
COVER
3130511
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
O-RING
3130512
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
HOLDER,GUIDE
3130199
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPRING
3130538
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Asm., Plunger
3130593
Superseded by 3130539
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
JET,AIR,#160
3130625
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
CARBURETOR ASM.
3130723
Superseded by 3130754
|
$569.99 | ||
|
Unavailable |
|||
|
#48
SCREW & WASHER(10)
3084205
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
SPRING
3130505
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
COVER
3130503
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
SCREW
3130592
Superseded by 3130924
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
