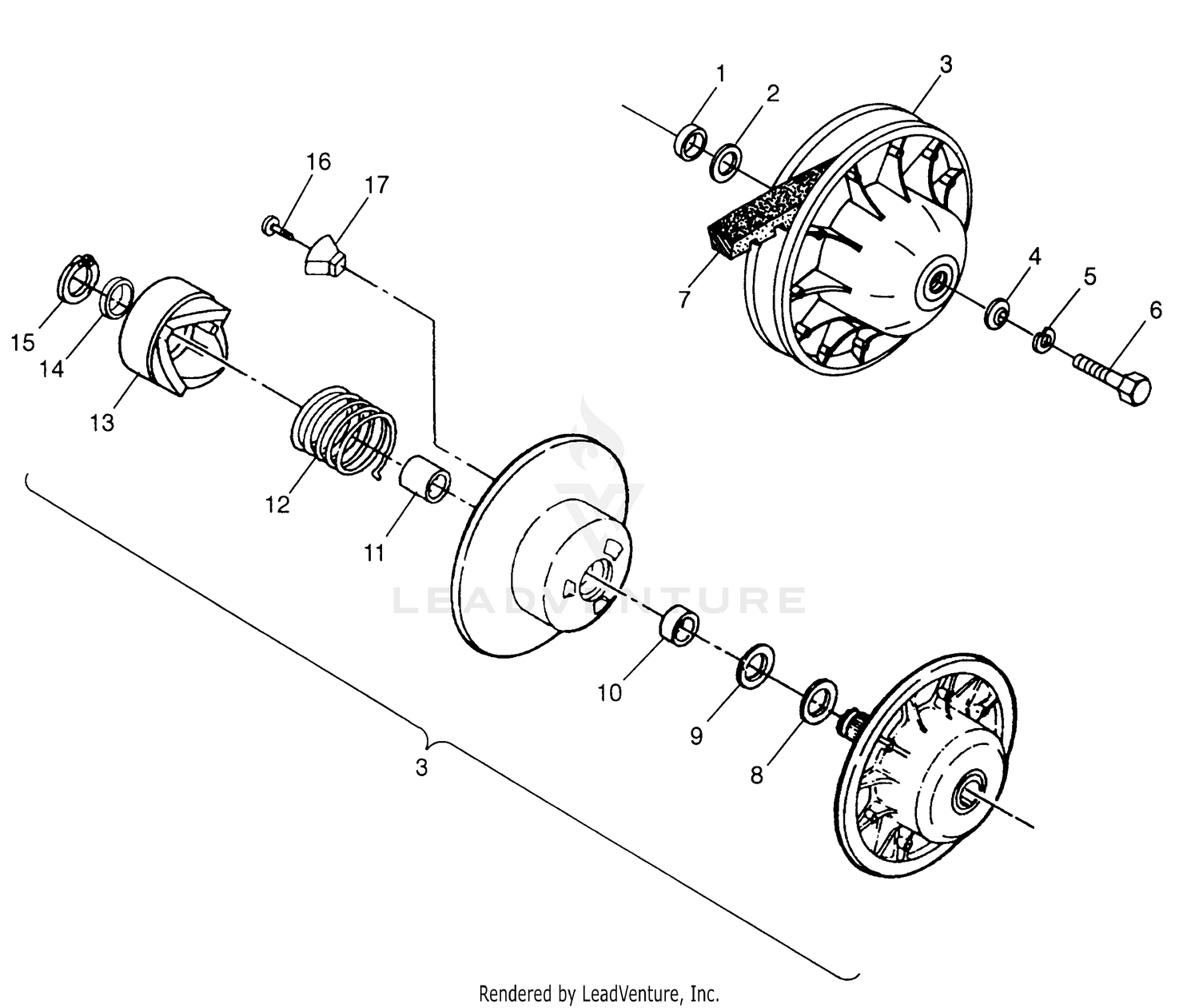

Driven Clutch Xplorer 500 W97cd50a (4941354135c004) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPACER,DRIVEN CLUTCH
5010266
Superseded by 5010379
|
$21.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING(10)
7556401
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLUTCH,DRVN,3-ANGLE,HVY RET
1322182
|
$614.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, DOMED(10)
5220646
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT(10)
7515327
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Belt, Drive
3211048
Superseded by 3211077
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER(10)
7555898
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER(10)
7556804
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSHING, DRIVEN
3576504
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSHING
3576511
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING,CLUTCH,(RED)
7041198
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RAMP,STA,COMP (MACH)
5131447
Superseded by 5132344
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER(10)
5210752
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING,RET.
7710448
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT(10)
7511854
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUTTON
5430766
Superseded by 5450873
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
