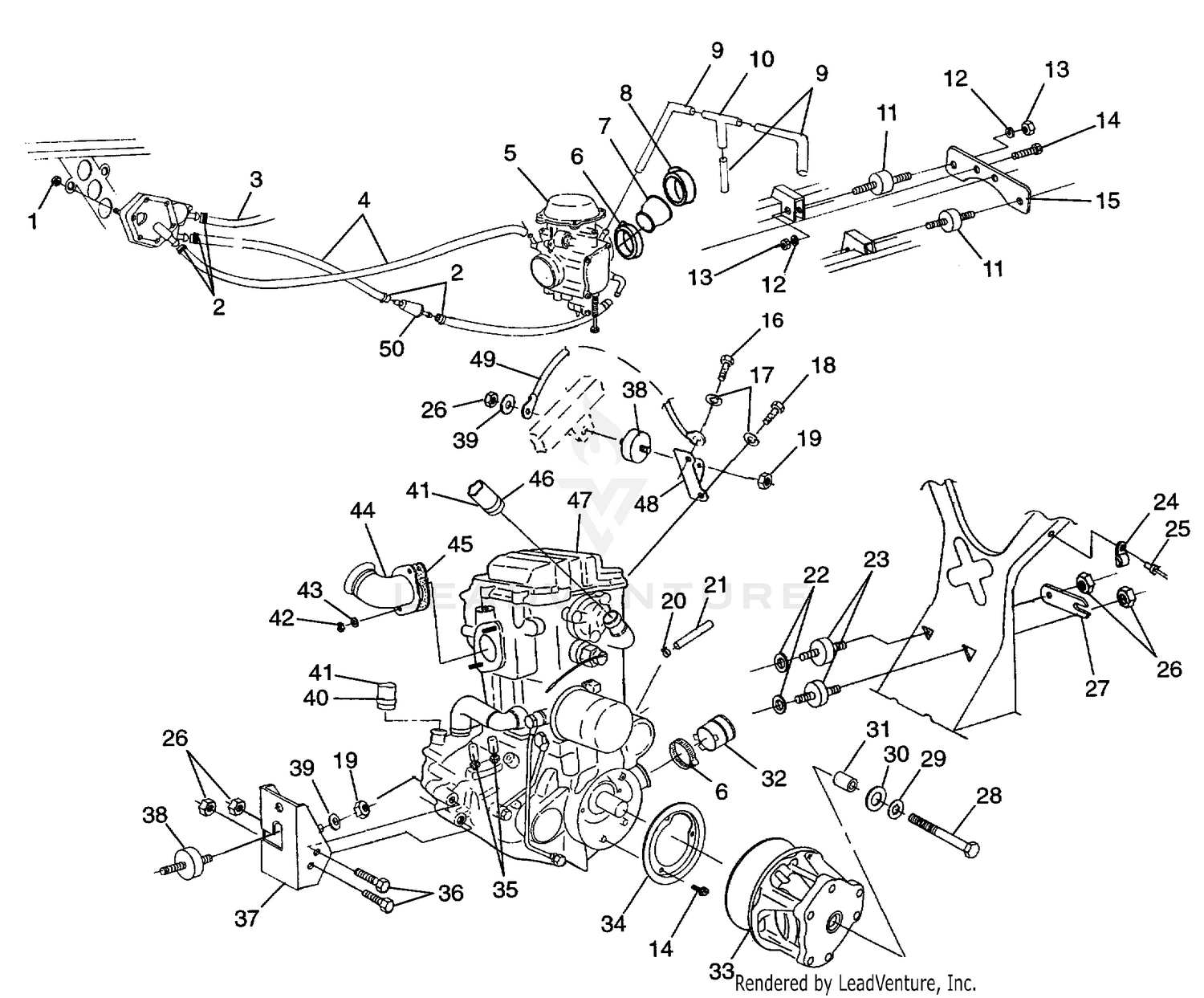

Engine Mounting Xplorer 500 W97cd50a (4941354135a011) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-M5X.8,HX NYL-Y
7546601
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE,(.25 IDX1.75"LG.)
5811490
|
|||
|
Unavailable |
|||
|
#4
FUEL LINE,1/4 ID(600 CM.)
8450040-600
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Asm., Carburetor
-------
|
|||
|
Unavailable |
|||
|
#6
CLAMP, NARROW BAND(10)
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT,CARB
5410995
|
|||
|
Unavailable |
|||
|
#8
CLAMP, NARROW BAND
7080656
Superseded by 7080511
|
$5.99 | ||
|
Unavailable |
|||
|
#9
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FITTING, TEE
7052075
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
MOUNT,CARB,RUBBER
3110071
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER(10)
7552605
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT HEX(10)
7542105
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Screw and Washer
-------
|
|||
|
Unavailable |
|||
|
#15
STRAP,CARB.MT,BLK.
5211626-067
|
|||
|
Unavailable |
|||
|
#16
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT(10)
7512315
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT LOCK(10)
7542403
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP,HOSE,SPRING
7080694
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE,BREATHER
5411306
|
|||
|
Unavailable |
|||
|
#22
WASHER, FLAT(10)
7555815
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Isolator
3110046
Superseded by 3022072
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP,NYLON,CABLE(10)
7080539
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RIVET(50)
7621462
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT LOCK(10)
7542411
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
STRAP,FRAME SUPPORT,BLK
5224658-067
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT(10)
7512566
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER-7/16-INT LK-(1222)-Z
7575202
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER-.440X1.25X.190 FL-Y
5210748
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSHING-.437 X.770 X.50
5430261
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOOT,CLUTCH INTAKE
5410421
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Asm., Drive Clutch, ATV-06
-------
|
|||
|
Unavailable |
|||
|
#34
Bracket, Retainer, Seal
-------
|
|||
|
Unavailable |
|||
|
#35
CLAMP-HOSE,.875-SS
7080474
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
DESC NOT_AVAILABLE
7512438
|
|||
|
Unavailable |
|||
|
#37
MOUNT,FR.ENGINE,BLK.
5241150-067
|
|||
|
Unavailable |
|||
|
#38
ISOLATOR-3/8-24M/M,60DURO
3110044
Superseded by 3023593
|
$27.99 | ||
|
Unavailable |
|||
|
#39
WASHER(10)
7555801
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP,HOSE,(10)
7080614
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOSE, WATER Substituted by 8450050-305
8450050-63
|
|||
|
Unavailable |
|||
|
#42
Nut
3080285
Superseded by 3087199
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER LOCK ,(10)
3080530
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
WELD-MANIFOLD,BLK
1260771-029
Superseded by 1260771-489
|
$162.99 | ||
|
Unavailable |
|||
|
#45
Gasket, Exhaust
-------
|
|||
|
Unavailable |
|||
|
#46
CLAMP,HOSE,1.25,WORM DRIVE
7080696
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
ENG.(S.B.)EH50PLE-01
3085556
|
|||
|
Unavailable |
|||
|
#48
Mount, Engine, Top
5241453-067
Superseded by 5241453
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
CABLE,GND-ENGINE
4010132
|
$30.99 | ||
|
Unavailable |
|||
|
#50
FILTER,SMALL,IN-LINE,(10)
2530009
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
