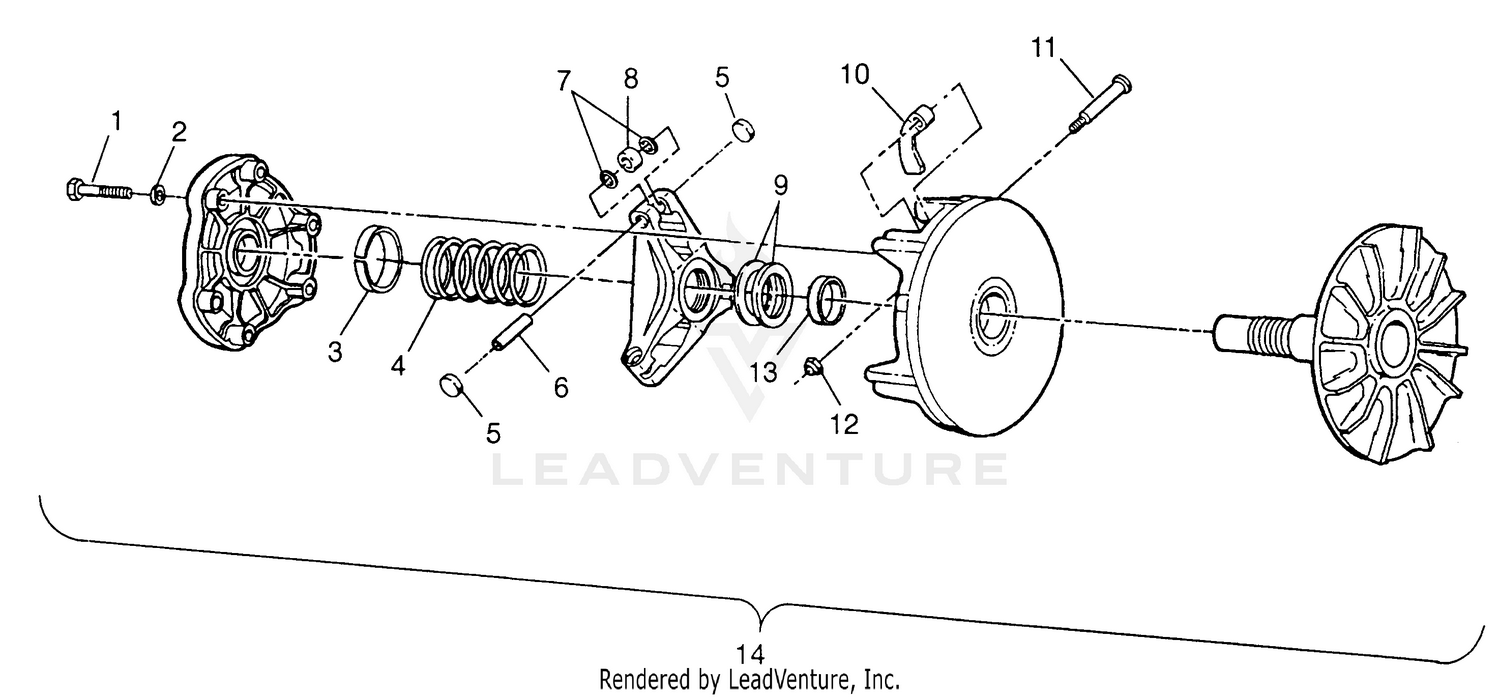

Drive Clutch Xplorer 500 W97cd50a (4941354135c003) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bolt
7512176
Superseded by 7512163
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LOCK WASHER(10)
7552801
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, COVER,(10)
3576510
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING,CLUTCH
7041157
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUTTON, CLUTCH
5431936
Superseded by 5439254
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN-ROLLER
5020422
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER-CLUTCH,SPIDER ROLLER
5430945
Superseded by 5438247
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ASM-ROLLER AND BUSHING
1321457
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER(10)
5210754
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER(10)
5210753
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER(10)
5210752
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Weight, Shift, 10-MHF
5630513
Superseded by 5632281
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,SPECIAL(10)
7512266
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT FLEX LOC(10)
7541906
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSHING, DRIVEN
3576504
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Asm., Drive Clutch, Basic
1321632
Superseded by 1321976
|
$719.99 | ||
|
Available to order. Add to View Price |
|||
