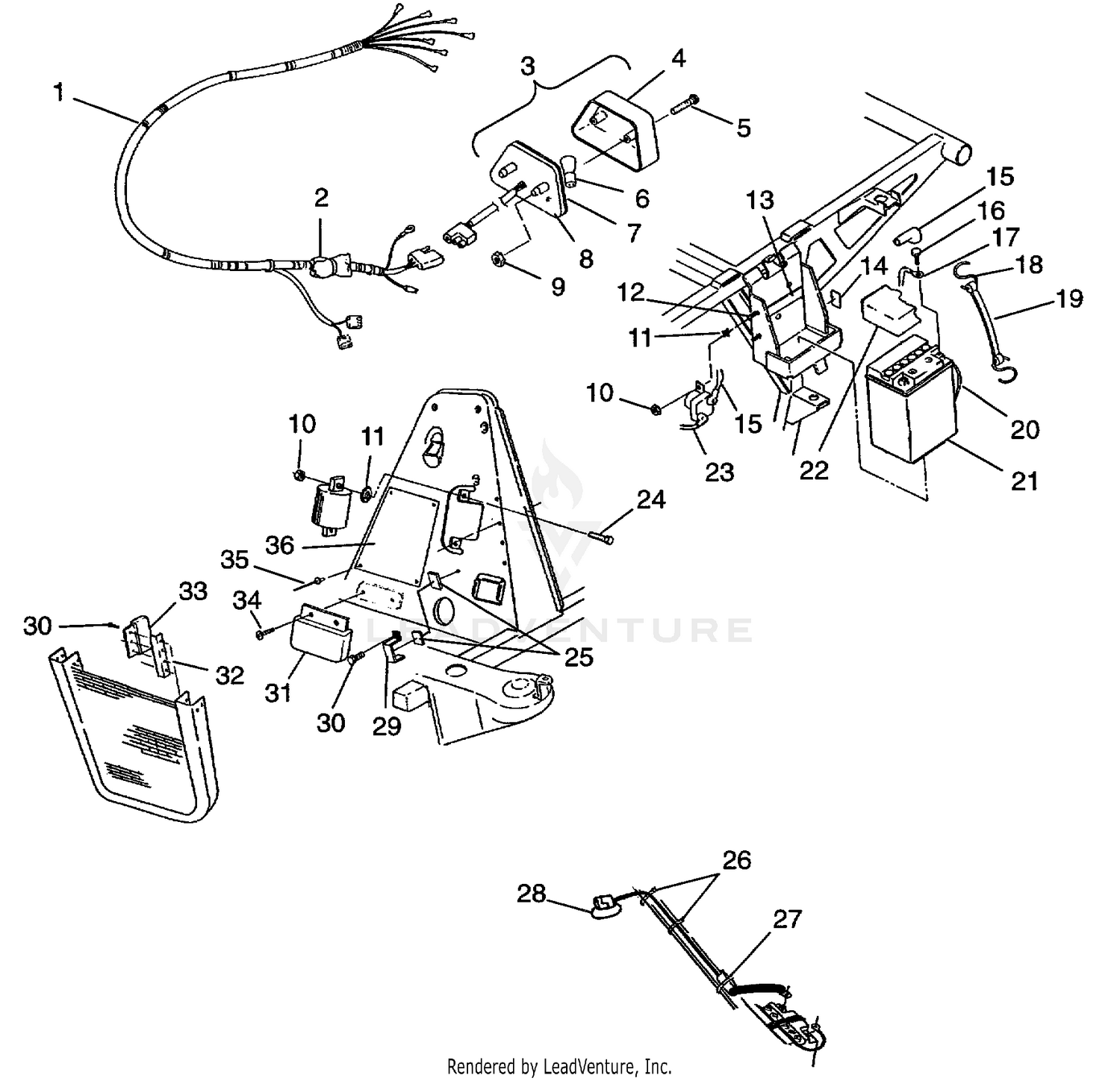

Electrical/taillight Xplorer 500 W97cd50a (4941354135c010) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-MAIN WIRE
2460544
|
$434.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
KIT,CKT.BRKR,20 AMP
2200593
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAIL LIGHT ASM.
2432034
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS,TAILLIGHT
4032046
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAILLIGHT
4032029
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB,TAILLIGHT
4030043
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET,TAILLIGHT
4032045
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BACKING,TAILLIGHT
4032064
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPEED NUT-WASHER, HEAD-1/4
7670054
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT(10)
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER(10)
7571602
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW(10)
7512027
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAD-BATTERY
5810290
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DECAL, BATTERY [No Longer Available]
7072606
|
|||
|
Unavailable |
|||
|
#15
CABLE,BATT/SOLENOID,RED
4010094
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,BATT,KIT(SHORT)
2200361
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE,BATT/ENG.,BLK.
4010095
|
|||
|
Unavailable |
|||
|
#18
HOOK-BATT.H/D(10)
7010032
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Strap, Battery Holddown
5410424
Superseded by 5412499
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE,BATTERY VENT
5432077
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BATTERY
4140006
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER,BATTERY
5431769
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE,SOL/STARTER
4010093
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW(10)
7512007
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PAD,RACK MOUNT
5810455
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
POWER ASM,12V
2410022
|
|||
|
Unavailable |
|||
|
#28
PIGTAIL, POWER
2460442
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET-CDI
5241416
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
LIMITER,RPM,LR83,HUB GROUND Substituted by 4060205
4060135
|
|||
|
Unavailable |
|||
|
#32
HEATSINK RECT.
5131036
|
|||
|
Unavailable |
|||
|
#33
RECTIFIER,LR-37
4060133
|
|||
|
Unavailable |
|||
|
#34
SCREW,(10)
7512024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
RIVET,(50)
7621336
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOARD, TERMINAL Substituted by 4040063
4040064
|
|||
|
Unavailable |
|||
