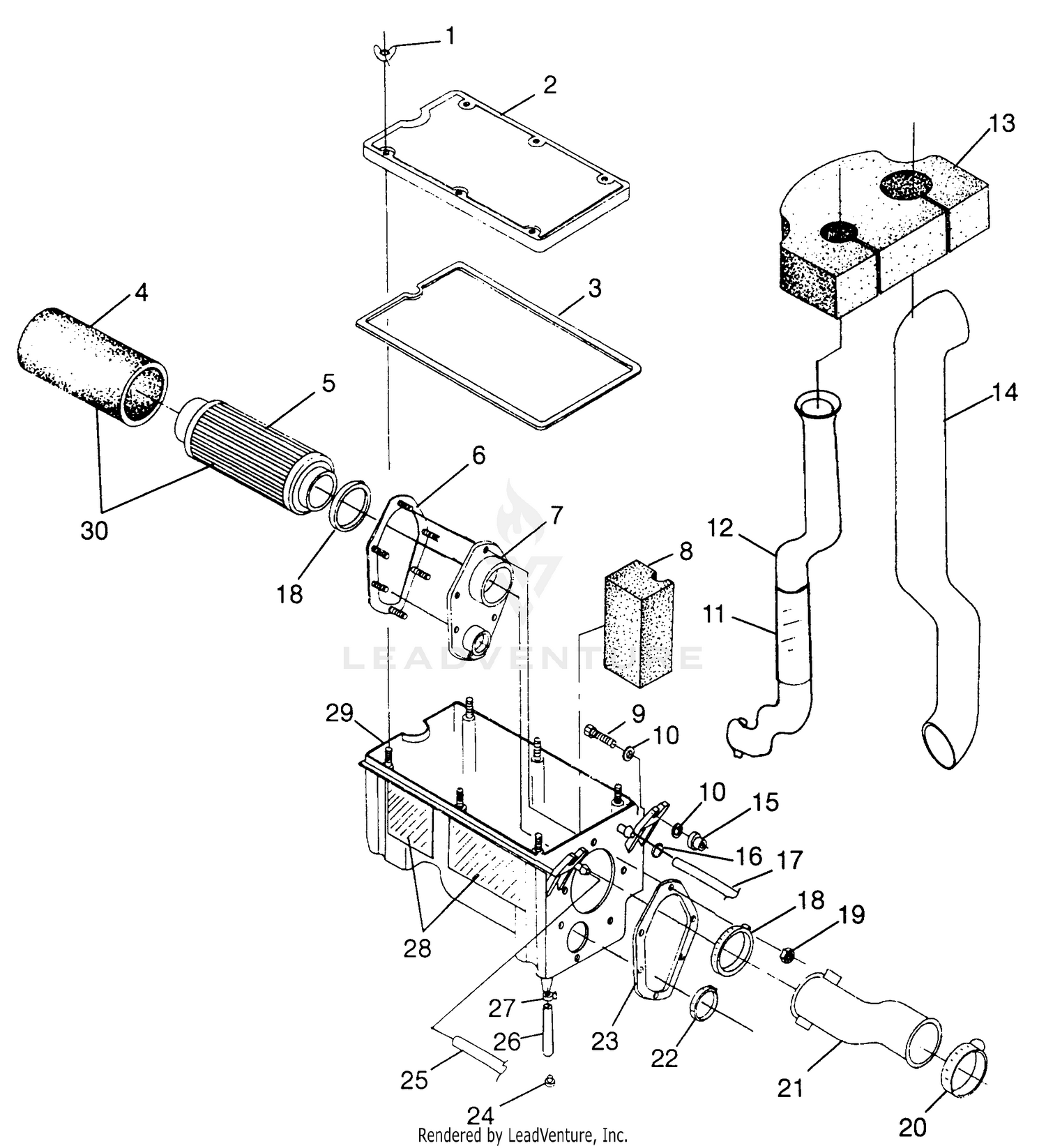

Air Box - W97cd50a (4941354135b002) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT,WING(10)
7542127
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, AIRBOX
5432142
|
|||
|
Unavailable |
|||
|
#3
SEAL,COVER,AIR INTAKE
5410996
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FOAM, FILTER
5811137
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FILTER, AIR INTAKE
7080595
Superseded by 7082101
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE,RETAINER
1040463
|
|||
|
Unavailable |
|||
|
#7
BOOT-SILENCER
5411014
|
|||
|
Unavailable |
|||
|
#8
FILTER,FOAM,EH50
5811532
|
|||
|
Unavailable |
|||
|
#9
SCREW(10)
7512279
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, FLAT(10)
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
FOIL-TAPE,AIR BOX
5811373
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUCT,INLET SILENCER
5432144
|
|||
|
Unavailable |
|||
|
#13
SEAL-FOAM
5811309
|
|||
|
Unavailable |
|||
|
#14
DUCT-AIR INLET, CLUTCH
5432086
|
|||
|
Unavailable |
|||
|
#15
Nut, Well
-------
|
|||
|
Unavailable |
|||
|
#16
CLAMP,HOSE
7080699
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Hose, Breather
-------
|
|||
|
Unavailable |
|||
|
#18
CLAMP-BAND,NARROW 60-80MM
7080707
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Nut, Nylok
7541929
Superseded by 7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP, NARROW BAND
7080656
Superseded by 7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUCT-CARB, INLET
5432143
|
|||
|
Unavailable |
|||
|
#22
CLAMP, S.S.(10)
7080560
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE,AIRBOX RETAINER,ZINC
5241339
|
|||
|
Unavailable |
|||
|
#24
PLUG, TRAP
5432377
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
LINE,BREATHER,3/8 ID.
8450073-600
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUEL LINE
8450059-150
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP,HOSE,(10)
7080650
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
FOIL-TAPE, AIR BOX
5811138
|
|||
|
Unavailable |
|||
|
#29
BOX,AIR INTAKE
5432667
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
FILTER ASM, AIR
1253144
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
