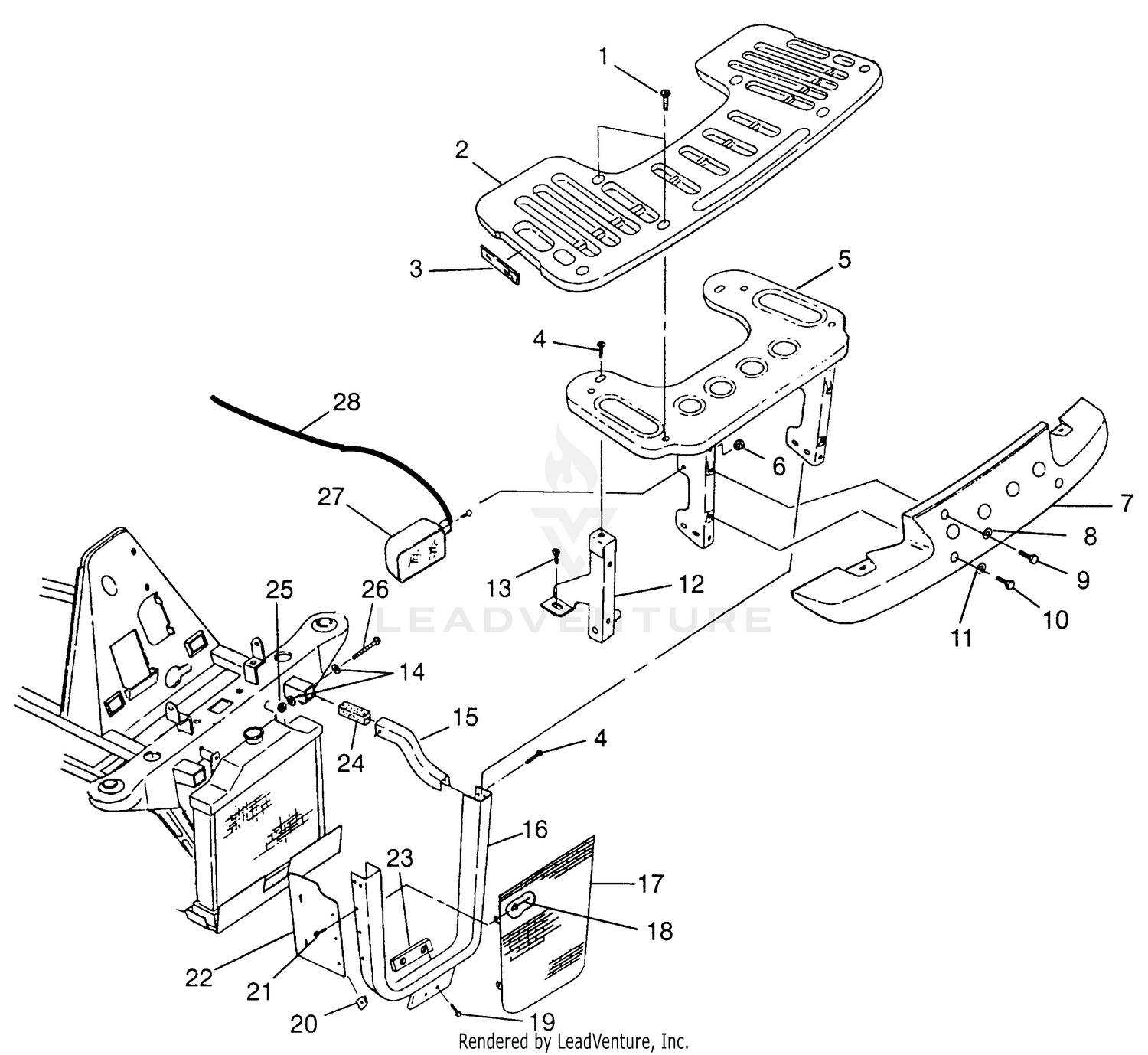

Front Rack And Bumper Mounting Xplorer 500 W97cd50a (4941354135a010) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7515194
Superseded by 7517685
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Asm., Front Rack
2670180
Superseded by 2670180-070
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
REFLECTOR AMBER
2670071
|
$7.19 | ||
|
Unavailable |
|||
|
#4
SCREW(10)
7515399
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Support, Front Rack
2200775
Superseded by 1014023-067
|
$226.99 | ||
|
Unavailable |
|||
|
#6
NUT, NYLOK(10)
7542327
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUMPER,BLK.
5432155-070
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER WROUGHT(10)
7555955
Superseded by 7558403
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT(10)
7515391
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT(10)
7515390
|
|||
|
Unavailable |
|||
|
#11
WASHER(10)
7555954
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SUPPORT,FRT.RACK,LH,BLK
1040554-067
Superseded by 1013210-067
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SUPPORT,FRT. RACK,RH,BLK
1040555-067
Superseded by 1013211-067
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NOT AVAILABLE
5241398-067
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#15
EXTENSION,RH.FRAME,BLK.
5241399-067
|
|||
|
Unavailable |
|||
|
#16
GUARD,BRUSH,BLK
5241583-067
|
|||
|
Unavailable |
|||
|
#17
GRILL,BRUSHGUARD,BLK.
5240591-067
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RIVET, POP(50)
7621330
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW(10)
7517208
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT(10)
7670094
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW(10)
7512097
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIELD,LH RADIATOR
5431814
|
|||
|
Unavailable |
|||
|
#22
SHIELD,RH RADIATOR
5431815
|
|||
|
Unavailable |
|||
|
#23
SPACER,BRUSHGUARD
5131312
|
|||
|
Unavailable |
|||
|
#24
PLUG, FRAME
5810467
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT(10)
7515384
|
$2.49 | ||
|
Unavailable |
|||
|
#27
BULB,H/L,30/30 W.
4030061
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
H/L ASM,LH,30/30W
2431011
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
H/L ASM,RH,30/30W
2431012
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HARNESS,H/L,HI/LO
2460611
|
|||
|
Unavailable |
|||
