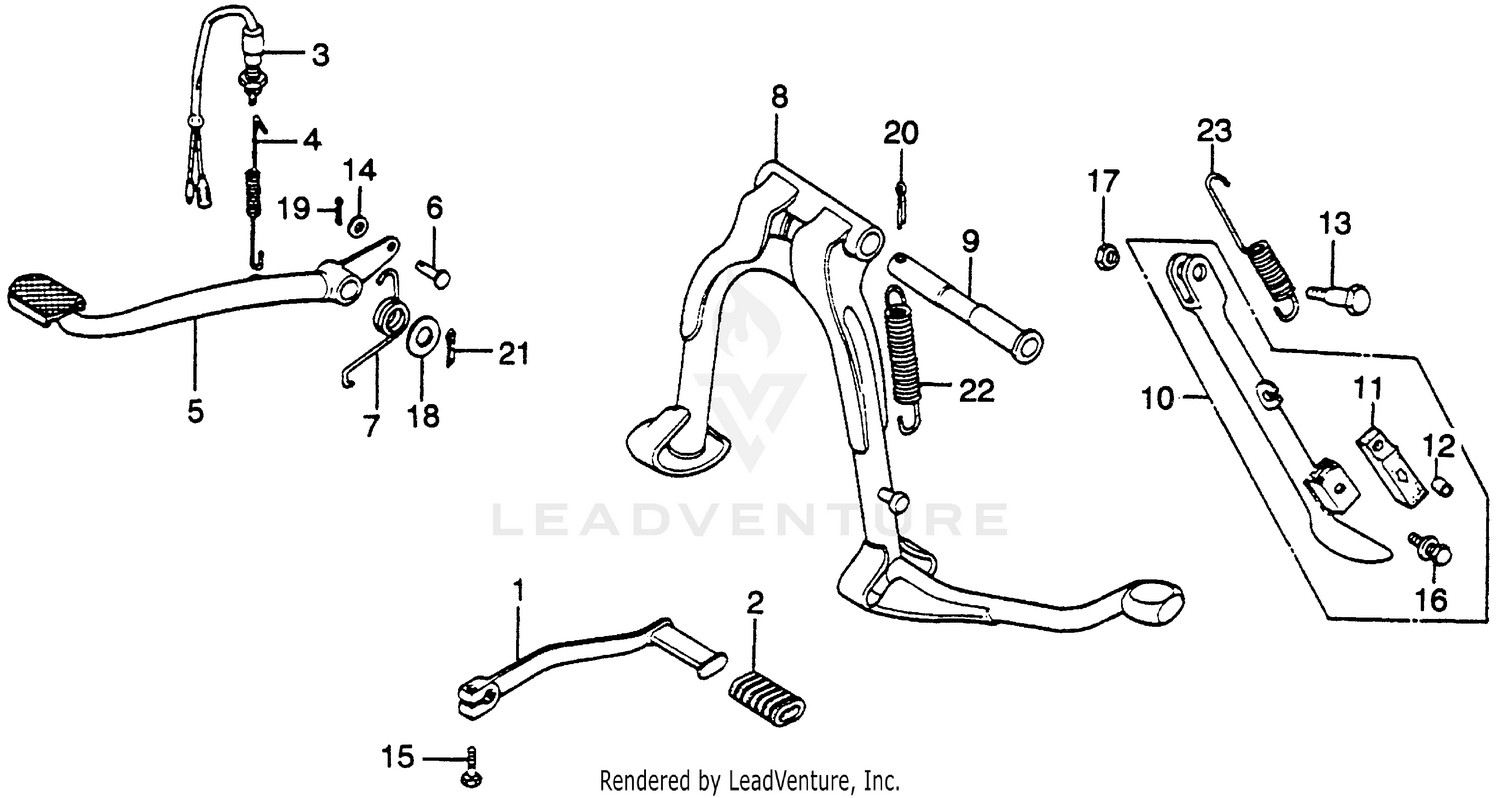

Change Pedal + Brake Pedal + Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)
24701-371-305
|
$37.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, GEARSHIFT PEDAL
24781-371-000
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH ASSY., RR. STOP
35350-KJ9-405
|
$19.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH ASSY., RR. STOP
35350-292-003
Superseded by 35350-KJ9-405
|
$19.67 | ||
|
Unavailable |
|||
|
#3
SWITCH ASSY., RR. STOP
35350-336-000
Superseded by 35350-KJ9-405
|
$19.67 | ||
|
Unavailable |
|||
|
#4
SPRING, STOP SWITCH
35357-046-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
PEDAL, RR. BRAKE
46500-431-670
|
$75.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, BRAKE ROD
46503-371-000
|
$3.79 | ||
|
Unavailable |
|||
|
#7
SPRING, BRAKE PEDAL (NOT AVAILABLE)
46506-371-000
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)
50500-431-670ZA
|
$72.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, MAIN STAND PIVOT
50526-300-000
|
$16.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR ASSY., SIDE STAND (NOT AVAILABLE)
50540-371-010
|
$215.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, STAND
50548-356-700
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, STAND RUBBER SETTING
50549-356-700
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, SIDE STAND PIVOT (NOT AVAILABLE)
90108-371-610
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (7X12)
90501-310-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#16
BOLT-WASHER (6X28)
93401-06028-00
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-WASHER (6X28)
93481-06028-00
Superseded by 93401-06028-00
|
$1.13 | ||
|
Unavailable |
|||
|
#17
NUT, HEX. (10MM)
94001-10000-0S
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, FLAT (20MM)
94102-20000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, COTTER (1.6X25)
94201-16250
|
$1.03 | ||
|
Unavailable |
|||
|
#20
PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, COTTER (2.5MM)
94201-25300
|
$1.03 | ||
|
Unavailable |
|||
|
#21
PIN, COTTER (3.0X35)
94201-30350
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING G, MAIN STAND
95014-71702
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING D, SIDE STAND
95014-72401
Superseded by 95014-72402
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING D, SIDE STAND
95014-72402
|
$3.36 | ||
|
Unavailable |
|||
