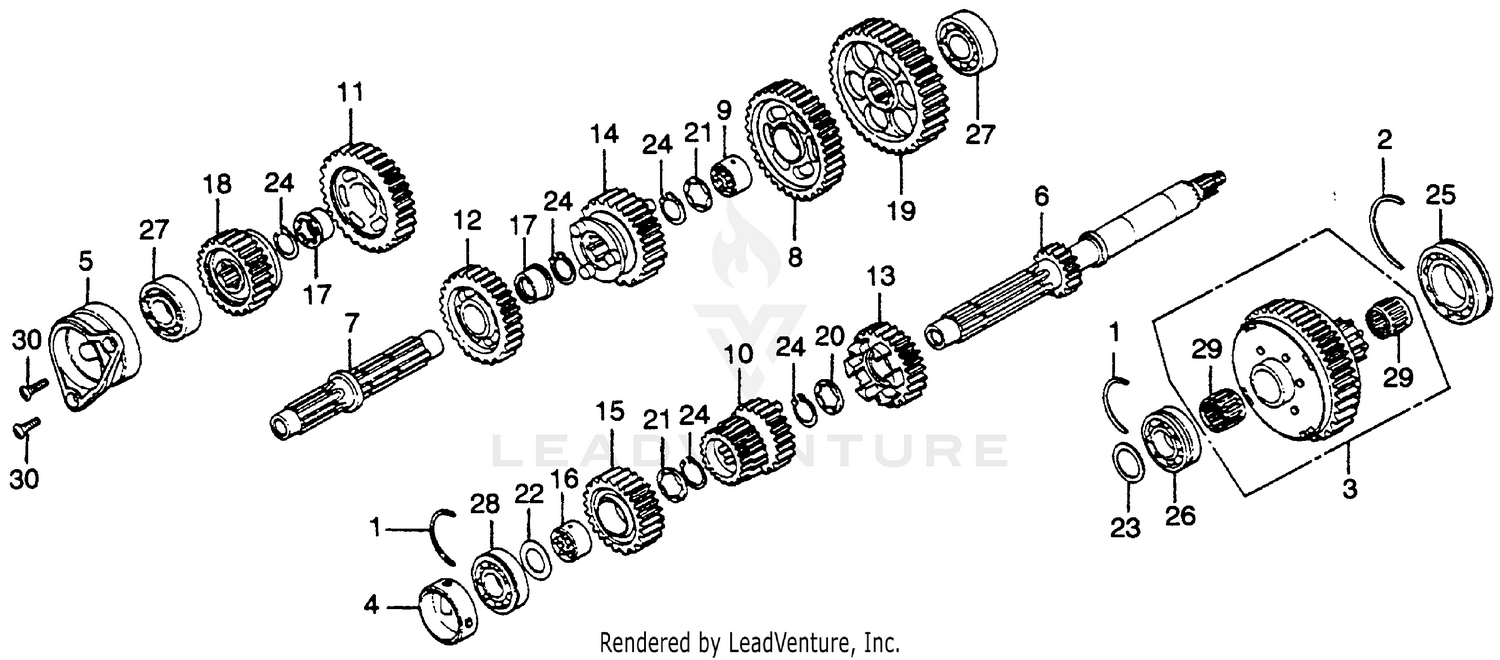

Transmission Diagram

Item MSRP Qty
#1 RING A, BALL BEARING SETTING (NOT AVAILABLE)
13495-300-000
 $3.56
Available to order.
Add to View Price
#2 RING B, BALL BEARING SETTING (NOT AVAILABLE)
13496-300-000
 $5.31
Available to order.
Add to View Price
#3 SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)
23110-371-000
 $249.96
Available to order.
Add to View Price
#4 PASSAGE, MAINSHAFT OIL (NOT AVAILABLE)
23141-371-000
 $28.88
Available to order.
Add to View Price
#5 HOLDER C, BEARING (NOT AVAILABLE)
23151-431-000
Superseded by 23151-431-020
 $45.40
Available to order.
Add to View Price
#5 HOLDER C, BEARING (NOT AVAILABLE)
23151-431-010
Superseded by 23151-431-020
 $45.40
Unavailable
#5 HOLDER C, BEARING (NOT AVAILABLE)
23151-431-020
 $45.40
Unavailable
#6 MAINSHAFT, TRANSMISSION (18T) (NOT AVAILABLE)
23210-371-000
 $124.33
Available to order.
Add to View Price
#7 COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)
23220-431-000
 $112.90
Available to order.
Add to View Price
#8 GEAR, COUNTERSHAFT LOW (45T) (NOT AVAILABLE)
23421-300-050
 $112.94
Available to order.
Add to View Price
#9 BUSH (29X14) (NOT AVAILABLE)
23425-300-010
 $17.61
Available to order.
Add to View Price
#10 GEAR, MAINSHAFT SECOND & THIRD (24T & 27T)
23431-371-000
 $128.98
Available to order.
Add to View Price
#11 GEAR, COUNTERSHAFT SECOND (NOT AVAILABLE)
23441-431-000
 $98.57
Available to order.
Add to View Price
#12 GEAR, COUNTERSHAFT THIRD
23451-431-000
 $128.63
Available to order.
Add to View Price
#13 GEAR, MAINSHAFT FOURTH (31T)
23460-371-000
 $117.54
Available to order.
Add to View Price
#14 GEAR, COUNTERSHAFT FOURTH (34T) (NOT AVAILABLE)
23471-371-000
 $139.17
Available to order.
Add to View Price
#15 GEAR, MAINSHAFT TOP (33T) (NOT AVAILABLE)
23481-371-000
 $105.75
Available to order.
Add to View Price
#16 BUSH, SPLINE (28MM) (NOT AVAILABLE)
23485-300-020
Superseded by 23485-392-000
 $18.60
Available to order.
Add to View Price
#17 BUSH (28MM) (NOT AVAILABLE)
23485-410-003
 $20.64
Available to order.
Add to View Price
#18 GEAR, COUNTERSHAFT TOP (31T)
23491-371-000
 $160.16
Available to order.
Add to View Price
#19 GEAR, FINAL DRIVE (40T) (NOT AVAILABLE)
23501-371-000
 $121.94
Available to order.
Add to View Price
#20 WASHER, THRUST (25MM)
90451-MB2-000
 $3.71
Available to order.
Add to View Price
#20 WASHER, THRUST (25MM)
90451-371-000
Superseded by 90451-MB2-000
 $3.71
Unavailable
#21 WASHER, THRUST (25X34)
90452-371-000
 $5.28
Available to order.
Add to View Price
#22 WASHER, THRUST (20MM)
90458-292-000
 $4.26
Available to order.
Add to View Price
#23 WASHER A, THRUST (25MM) (NOT AVAILABLE)
90458-506-810
 $7.26
Available to order.
Add to View Price
#24 CIRCLIP (OUTER) (25MM)
90601-300-000
 $4.60
Available to order.
Add to View Price
#25 BEARING, RADIAL BALL (6008U) (NOT AVAILABLE)
91001-371-008
Superseded by 91001-463-008
 $33.36
Available to order.
Add to View Price
#26 BEARING
91002-300-008
Superseded by 91003-612-004
 $20.06
Available to order.
Add to View Price
#27 BEARING, RADIAL BALL (20X52X15) (TOYO)
91002-371-004
Superseded by 91003-MG8-003
 $43.79
Available to order.
Add to View Price
#27 BEARING, RADIAL BALL (20X52X15) (TOYO)
91003-MG8-003
 $43.79
Unavailable
#28 BEARING, BALL (6304CS) (TOYO)
91004-371-008
 $30.02
Available to order.
Add to View Price
#29 BEARING, NEEDLE (25X32X20)
91010-300-008
 $20.70
Available to order.
Add to View Price
#30 SCREW, FLAT (6X20)
93600-06020
Superseded by 93600-06020-0A
 $0.98
Available to order.
Add to View Price
#30 SCREW, FLAT (6X20)
93600-06020-0A
 $0.98
Unavailable
