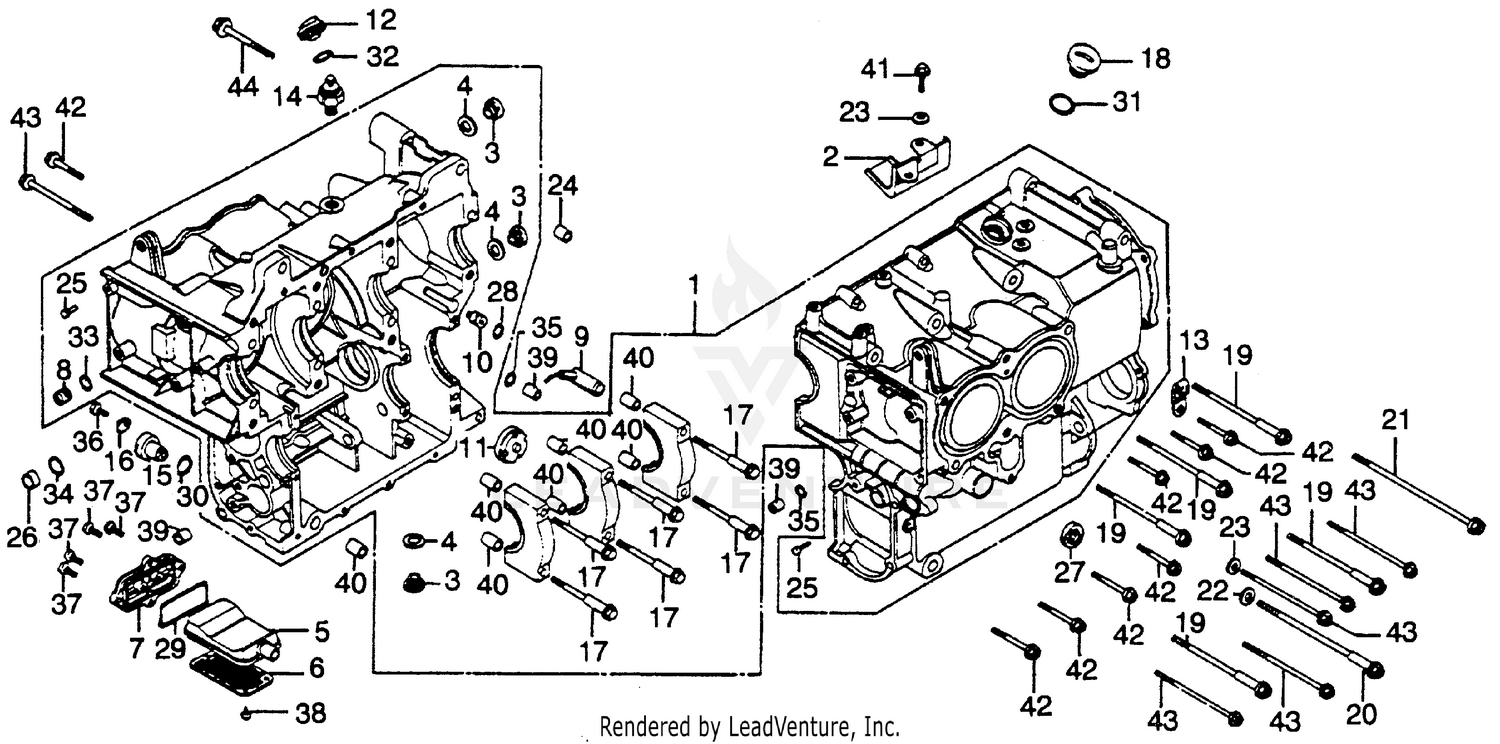

Cylinder Block Diagram

Item MSRP Qty
#1 BLOCK ASSY., CYLINDER
11000-371-040
Superseded by 11000-371-050
 $2,223.73
Available to order.
Add to View Price
#1 BLOCK ASSY., CYLINDER
11000-371-050
 $2,223.73
Unavailable
#1 BLOCK ASSY., CYLINDER
11000-371-050
 $2,223.73
Unavailable
#2 GUIDE, OIL (NOT AVAILABLE)
11220-371-000
 $12.67
Available to order.
Add to View Price
#3 BOLT, SEALING (18MM)
12206-ML8-300
 $10.45
Available to order.
Add to View Price
#3 BOLT, SEALING (18MM)
12206-371-305
Superseded by 12206-ML8-300
 $10.45
Unavailable
#4 WASHER, SEALING BOLT
12207-611-300
 $2.18
Available to order.
Add to View Price
#5 CASE, OIL STRAINER (NOT AVAILABLE)
15151-371-000
 $39.36
Available to order.
Add to View Price
#6 SCREEN, OIL STRAINER (NOT AVAILABLE)
15152-371-000
 $14.94
Available to order.
Add to View Price
#7 COVER, OIL STRAINER (NOT AVAILABLE)
15153-371-000
 $19.65
Available to order.
Add to View Price
#8 PLUG, OIL TUBE
15337-300-010
 $8.55
Available to order.
Add to View Price
#9 NOZZLE, OIL SUPPLY
15520-371-000
 $28.30
Available to order.
Add to View Price
#10 ORIFICE, CHAIN
15530-371-000
 $7.40
Available to order.
Add to View Price
#11 FINDER, OIL LEVEL
15661-KM3-005
 $39.91
Available to order.
Add to View Price
#11 FINDER, OIL LEVEL
15661-371-015
Superseded by 15661-KM3-005
 $39.91
Unavailable
#12 CAP, LEVEL GAUGE (NOT AVAILABLE)
25611-371-000
 $13.89
Available to order.
Add to View Price
#13 CLAMP, CABLE
32111-323-000
 $4.78
Available to order.
Add to View Price
#14 SWITCH ASSY., OIL PRESSURE (DENSO)
35500-333-014
Superseded by 37240-P13-013
 $51.56
Available to order.
Add to View Price
#14 SWITCH ASSY., OIL PRESSURE (DENSO)
37240-P13-013
 $51.56
Unavailable
#15 SWITCH ASSY., NEUTRAL
35752-300-010
Superseded by 35752-300-020
 $94.25
Available to order.
Add to View Price
#15 SWITCH ASSY., NEUTRAL
35752-300-020
 $94.25
Unavailable
#16 STOPPER, NEUTRAL SWITCH (NOT AVAILABLE)
35754-300-020
 $2.06
Available to order.
Add to View Price
#17 BOLT, FLANGE (10X82) (NOT AVAILABLE)
90003-371-003
Superseded by 90003-371-013
 $6.04
Available to order.
Add to View Price
#17 BOLT, FLANGE (10X82) (NOT AVAILABLE)
90003-371-013
 $6.04
Unavailable
#18 BOLT, SPECIAL (25MM)
90008-371-000
Superseded by 90008-443-000
 $18.38
Available to order.
Add to View Price
#18 BOLT, SPECIAL (25MM)
90008-443-000
 $18.38
Unavailable
#19 BOLT, FLANGE (10X120)
90009-371-005
Superseded by 90009-371-015
 $12.42
Available to order.
Add to View Price
#19 BOLT, FLANGE (10X120)
90009-371-015
 $12.42
Unavailable
#20 BOLT, FLANGE (10X166) (SATO) (NOT AVAILABLE)
90010-371-005
 $10.95
Available to order.
Add to View Price
#21 BOLT, FLANGE (8X175) (NOT AVAILABLE)
90026-371-004
 $6.04
Available to order.
Add to View Price
#22 WASHER (21X11X2.3)
90438-634-000
 $4.34
Available to order.
Add to View Price
#23 WASHER, SEALING (6MM)
90441-028-010
 $3.21
Available to order.
Add to View Price
#24 COLLAR (15X20)
90702-371-000
 $6.42
Available to order.
Add to View Price
#25 PIN (4X12MM)
90702-634-300
 $3.47
Available to order.
Add to View Price
#26 COLLAR (17X10) (NOT AVAILABLE)
90703-371-000
 $2.48
Available to order.
Add to View Price
#27 OIL SEAL (14X28X7) (ARAI)
91206-286-013
 $3.62
Available to order.
Add to View Price
#28 O-RING (9.5X1.7)
91259-333-000
 $4.43
Available to order.
Add to View Price
#29 GASKET A, OIL STRAINER
91303-371-000
 $4.56
Available to order.
Add to View Price
#30 O-RING (17.7X2.7)
91306-371-003
Superseded by 91306-371-013
 $2.72
Available to order.
Add to View Price
#30 O-RING (17.7X2.7)
91306-371-013
 $2.72
Unavailable
#31 O-RING (25.4X2.4)
91307-703-000
 $2.54
Unavailable
#32 O-RING (27X2.7)
91318-500-000
 $2.61
Unavailable
#33 O-RING (13X2.5)
91319-300-000
 $6.09
Available to order.
Add to View Price
#34 O-RING (17.0X2.5) (ARAI)
91333-KE5-003
 $2.44
Available to order.
Add to View Price
#34 O-RING (17.0X2.5) (ARAI)
91333-567-010
Superseded by 91333-KE5-003
 $2.44
Unavailable
#35 O-RING (7.8X1.9) (NOK)
91352-SA5-952
 $2.89
Available to order.
Add to View Price
#35 O-RING (7.8X1.9) (NOK)
91361-706-000
Superseded by 91352-SA5-952
 $2.89
Unavailable
#36 BOLT, HEX. (6X16)
92000-06016
Superseded by 92101-06016-0A
 $1.47
Available to order.
Add to View Price
#36 BOLT, HEX. (6X16)
92000-06016-0A
Superseded by 92101-06016-0A
 $1.47
Unavailable
#36 BOLT, HEX. (6X16)
92000-06016-1A
Superseded by 92101-06016-0A
 $1.47
Unavailable
#36 BOLT, HEX. (6X16)
92100-06016-0A
Superseded by 92101-06016-0A
 $1.47
Unavailable
#36 BOLT, HEX. (6X16)
92101-06016-0A
 $1.47
Unavailable
#36 BOLT, HEX. (6X16)
92200-06016-0A
Superseded by 92101-06016-0A
 $1.47
Unavailable
#37 SCREW, PAN (6X20)
93500-06020
Superseded by 93500-06020-0A
 $1.02
Available to order.
Add to View Price
#37 SCREW, PAN (6X20)
93500-06020-0A
 $1.02
Unavailable
#38 SCREW, TAPPING (3X8) (NOT AVAILABLE)
93901-12110
 $0.83
Available to order.
Add to View Price
#39 PIN A, DOWEL (8X14)
94301-08140
 $2.25
Available to order.
Add to View Price
#40 PIN A, DOWEL (12X20)
94301-12200
 $2.47
Available to order.
Add to View Price
#41 BOLT, FLANGE (6X16)
95700-06016-00
Superseded by 95701-06016-00
 $1.64
Available to order.
Add to View Price
#41 BOLT, FLANGE (6X16)
95701-06016-00
 $1.64
Unavailable
#42 BOLT, FLANGE (6X35)
95700-06035-00
Superseded by 95701-06035-00
 $1.88
Available to order.
Add to View Price
#42 BOLT, FLANGE (6X35)
95701-06035-00
 $1.88
Unavailable
#43 BOLT, FLANGE (6X110)
95700-06110-00
Superseded by 95701-06110-00
 $3.72
Available to order.
Add to View Price
#43 BOLT, FLANGE (6X110)
95701-06110-00
 $3.72
Unavailable
#44 BOLT, FLANGE (8X70)
95700-08070-00
Superseded by 95701-08070-00
 $2.88
Available to order.
Add to View Price
#44 BOLT, FLANGE (8X70)
95701-08070-00
 $2.88
Unavailable
