1978 Honda GL1000 GOLD WING Speedometer + Tachometer OEM Parts

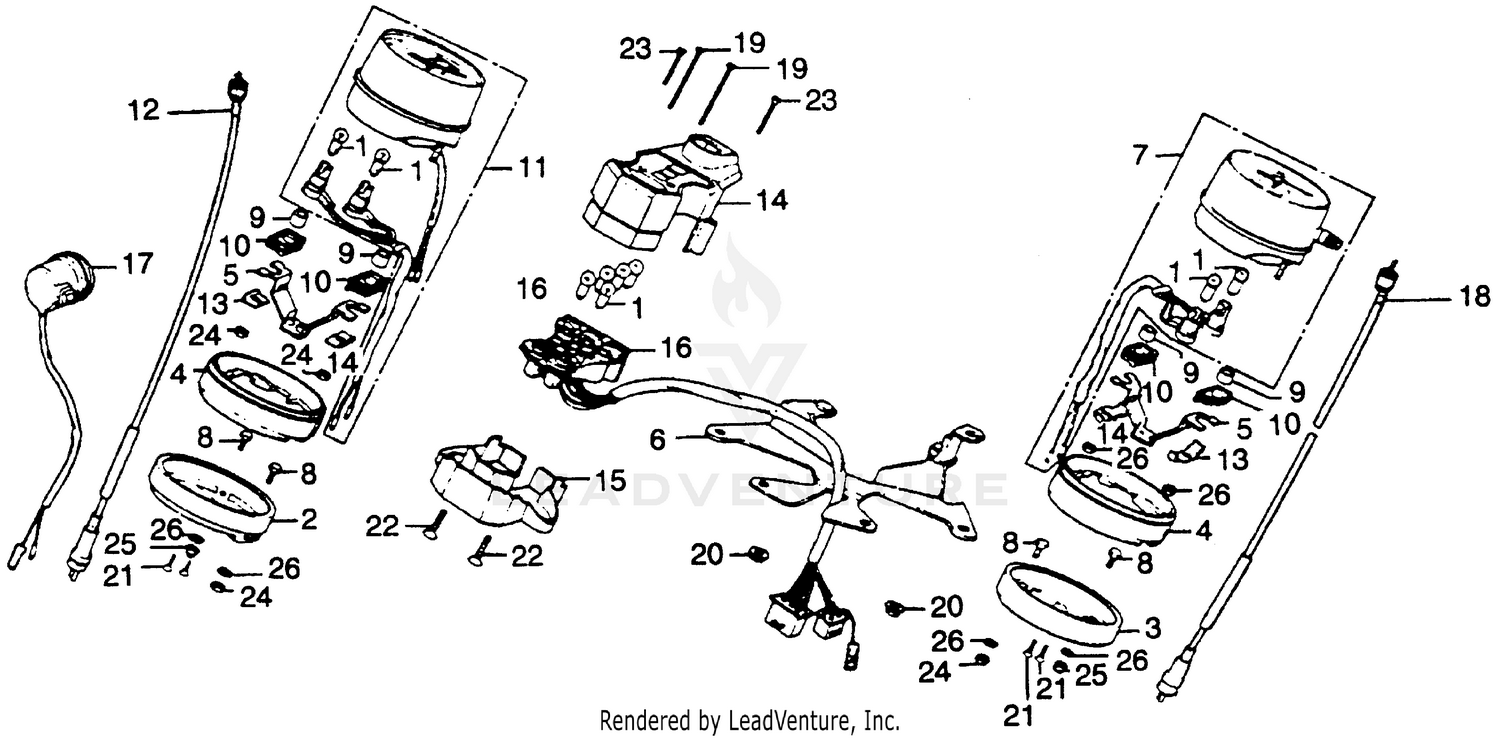

Speedometer + Tachometer Diagram

Item	MSRP	Qty
#NI LABEL, BREAK IN CAUTION (NOT AVAILABLE) 87523-410-790	$5.91
Unavailable
#1 BULB, DASH (12V3.4W) (IMASEN) 34902-259-000	$2.62
Unavailable
#2 RING, R. METER SETTING (NOT AVAILABLE) 37111-371-008	$32.46
Available to order. Add to View Price
#3 RING, L. METER SETTING (NOT AVAILABLE) 37112-371-008	$32.46
Available to order. Add to View Price
#4 CUSHION, METER SETTING (NOT AVAILABLE) 37115-371-000	$14.39
Available to order. Add to View Price
#5 PLATE, METER RING SETTING 37116-371-000	$8.53
Available to order. Add to View Price
#6 STAY, METER SETTING 37120-431-000	$70.15
Available to order. Add to View Price
#7 SPEEDOMETER ASSY. 37200-431-671	$712.76
Available to order. Add to View Price
#8 BOLT, INSTRUMENT SETTING (6MM) (NOT AVAILABLE) 37238-323-700	$1.90
Available to order. Add to View Price
#9 COLLAR, METER SETTING (NOT AVAILABLE) 37243-371-008	$2.82
Available to order. Add to View Price
#10 RUBBER, METER SETTING (NOT AVAILABLE) 37244-371-008	$3.58
Available to order. Add to View Price
#11 TACHOMETER ASSY. 37250-431-007 Superseded by 37250-431-662	$320.19
Available to order. Add to View Price
#11 TACHOMETER ASSY. 37250-431-661 Superseded by 37250-431-662	$320.19
Unavailable
#12 CABLE ASSY., TACHOMETER 37260-371-000	$23.81
Available to order. Add to View Price
#13 WASHER, METER SETTING (NOT AVAILABLE) 37314-371-008	$2.26
Available to order. Add to View Price
#14 COVER, PILOT (UPPER) (NOT AVAILABLE) 37610-371-680	$49.41
Available to order. Add to View Price
#15 COVER, PILOT (LOWER) (NIPPON SEIKI) (NOT AVAILABLE) 37617-371-008	$16.72
Available to order. Add to View Price
#16 WIRE, PILOT 37619-431-007	$105.78
Available to order. Add to View Price
#17 BUZZER ASSY., TURN SIGNAL (NOT AVAILABLE) 38400-431-000	$40.47
Available to order. Add to View Price
#18 CABLE ASSY., SPEEDOMETER 44830-MA1-730 Superseded by 44830-426-830	$29.53
Available to order. Add to View Price
#18 CABLE ASSY., SPEEDOMETER 44830-MC0-670 Superseded by 44830-426-830	$29.53
Unavailable
#18 CABLE ASSY., SPEEDOMETER 44830-300-672 Superseded by 44830-426-830	$29.53
Unavailable
#18 CABLE ASSY., SPEEDOMETER 44830-356-000 Superseded by 44830-426-830	$29.53
Unavailable
#18 CABLE ASSY., SPEEDOMETER 44830-392-000 Superseded by 44830-426-830	$29.53
Unavailable
#18 CABLE ASSY., SPEEDOMETER 44830-426-830	$29.53
Unavailable
#18 CABLE ASSY., SPEEDOMETER 44830-431-670 Superseded by 44830-426-830	$29.53
Unavailable
#19 SCREW, OVAL (4X70) (NOT AVAILABLE) 90106-371-000	$1.55
Available to order. Add to View Price
#20 NUT, HEX. (8MM) 90309-357-000	$4.10
Available to order. Add to View Price
#21 SCREW, OVAL (4X8) 93700-04008-0B	$1.00
Available to order. Add to View Price
#22 SCREW, OVAL (4X18) (SOURCE: VINTAGE PARTS INC.) 93700-04018-0B	$0.67
Available to order. Add to View Price
#23 SCREW, OVAL (4X30) (NOT AVAILABLE) 93700-04030-0G	$0.44
Available to order. Add to View Price
#24 NUT, HEX. (6MM) 90310-KA3-711 Superseded by 94001-06200-0S	$1.32
Available to order. Add to View Price
#24 NUT, HEX. (6MM) 94000-06000-0S Superseded by 94001-06200-0S	$1.32
Unavailable
#24 NUT, HEX. (6MM) 94001-06000 Superseded by 94001-06200-0S	$1.32
Unavailable
#24 NUT, HEX. (6MM) 94001-06000-0S Superseded by 94001-06200-0S	$1.32
Unavailable
#24 NUT, HEX. (6MM) 94001-06008-0S Superseded by 94001-06200-0S	$1.32
Unavailable
#24 NUT, HEX. (6MM) 94001-06200-0S	$1.32
Unavailable
#24 NUT, HEX. (6MM) 94030-06000 Superseded by 94001-06200-0S	$1.32
Unavailable
#25 NUT, CAP (6MM) 94021-06000 Superseded by 94021-06020	$1.81
Available to order. Add to View Price
#25 NUT, CAP (6MM) 94021-06000-0S Superseded by 94021-06020	$1.81
Unavailable
#25 NUT, CAP (6MM) 94021-06020	$1.81
Unavailable
#25 NUT, CAP (6MM) 94021-06020-0S Superseded by 94021-06020	$1.81
Unavailable
#25 NUT, CAP (6MM) 94022-06020 Superseded by 94021-06020	$1.81
Unavailable
#26 WASHER, SPRING (6MM) 94111-06000	$0.93
Available to order. Add to View Price
