1978 Honda GL1000 GOLD WING Fuel Pump OEM Parts

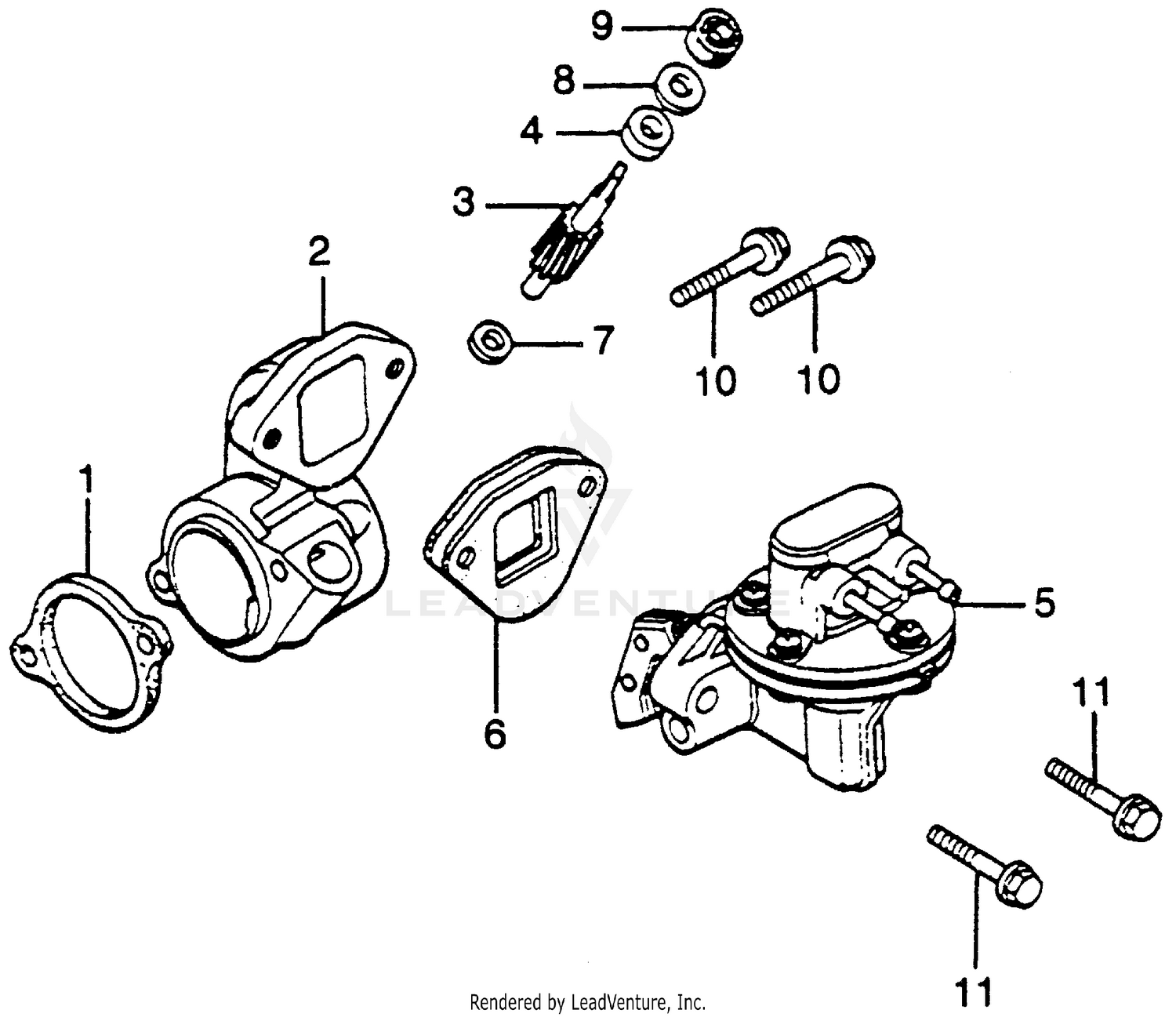

Fuel Pump Diagram

Item	MSRP	Qty
#1 INSULATOR, COVER 12390-371-000 Superseded by 12390-371-405	$12.75
Available to order. Add to View Price
#1 INSULATOR, COVER 12390-371-010 Superseded by 12390-371-405	$12.75
Unavailable
#1 INSULATOR, COVER 12390-371-405	$12.75
Unavailable
#2 COVER, FUEL PUMP (NOT AVAILABLE) 12411-371-000	$81.08
Available to order. Add to View Price
#3 GEAR, TACHOMETER (NOT AVAILABLE) 12431-371-000	$32.09
Available to order. Add to View Price
#4 COLLAR, TACHOMETER GEAR THRUST (NOT AVAILABLE) 12435-246-000	$9.39
Available to order. Add to View Price
#5 PUMP ASSY., FUEL (KISAN) 16700-371-004 Superseded by 16700-371-014	$176.00
Available to order. Add to View Price
#5 PUMP ASSY., FUEL (KISAN) 16700-371-014	$176.00
Unavailable
#6 INSULATOR, FUEL PUMP 16701-634-000	$22.24
Available to order. Add to View Price
#7 WASHER, TACHOMETER GEAR THRUST 90458-286-000	$1.70
Available to order. Add to View Price
#8 WASHER, SPEEDOMETER PINION 90539-011-000	$1.24
Available to order. Add to View Price
#9 OIL SEAL (4.8X14.5X4) 91211-286-003 Superseded by 91256-096-651	$5.81
Available to order. Add to View Price
#9 OIL SEAL (4.8X14.5X4) 91256-096-651	$5.81
Unavailable
#10 BOLT, FLANGE (6X40) 95700-06040-00 Superseded by 95701-06040-00	$1.88
Available to order. Add to View Price
#10 BOLT, FLANGE (6X40) 95701-06040-00	$1.88
Unavailable
#11 BOLT, FLANGE (8X32) 95700-08032-00 Superseded by 95701-08032-00	$1.51
Available to order. Add to View Price
#11 BOLT, FLANGE (8X32) 95701-08032-00	$1.51
Unavailable
