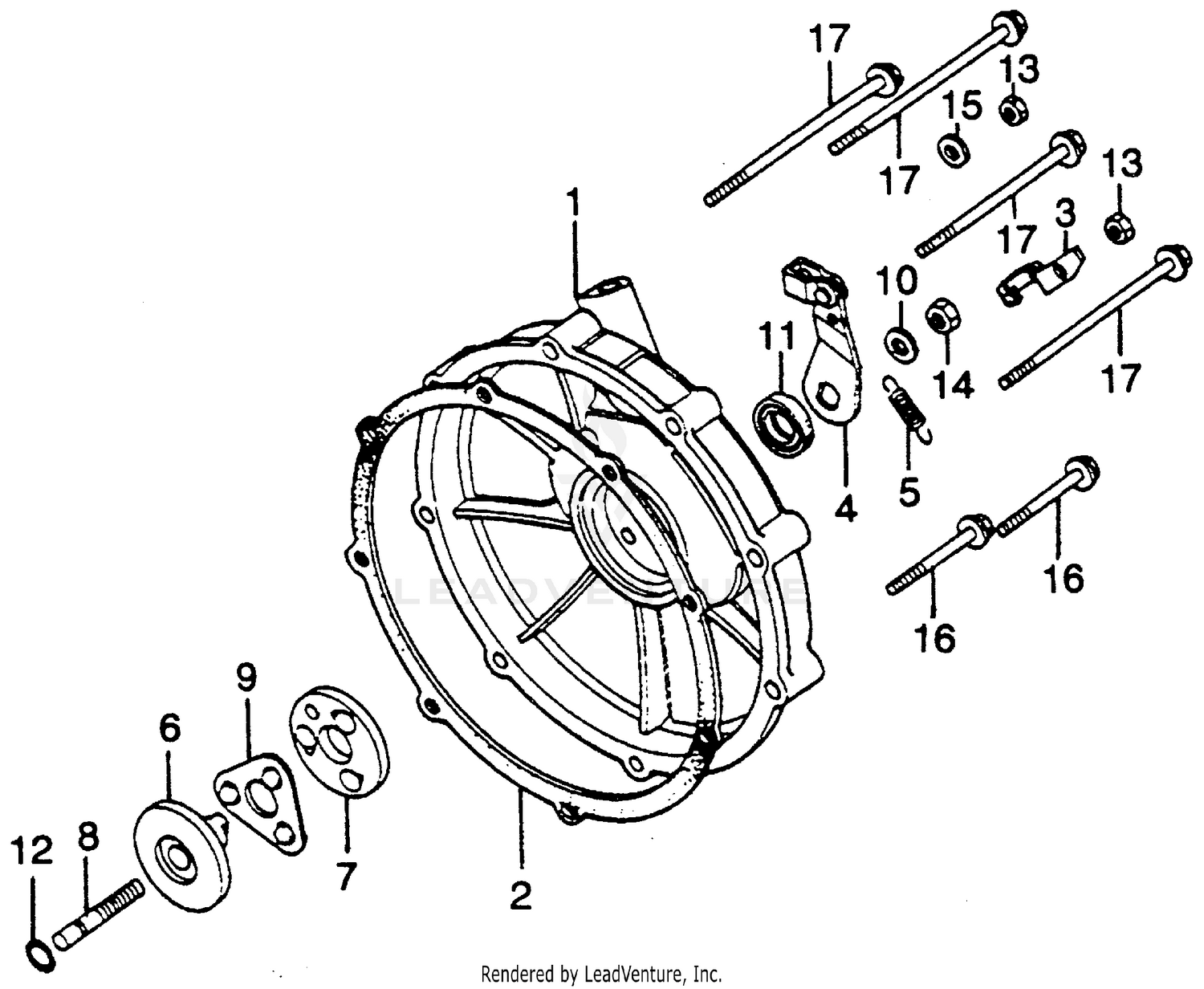

Clutch Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11342-371-000
|
$216.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CLUTCH COVER
11393-371-000
Superseded by 11393-371-306
|
$14.39 | ||
|
Unavailable |
|||
|
#2
GASKET, CLUTCH COVER
11393-371-306
|
$14.39 | ||
|
Unavailable |
|||
|
#3
CLIP, OIL DRAIN TUBE (NOT AVAILABLE)
15707-371-000
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER, CLUTCH (NOT AVAILABLE)
22810-371-000
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CLUTCH LEVER
22815-300-000
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, CLUTCH RELEASE (NOT AVAILABLE)
22820-371-000
|
$44.72 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM, CLUTCH LIFTER (NOT AVAILABLE)
22830-371-000
|
$20.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)
22841-300-000
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER, CLUTCH BALL
22860-300-006
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, HEAD (8MM)
90402-822-000
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (14X24X5)
91202-KFL-841
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (14X24X5)
91202-216-003
Superseded by 91202-KFL-841
|
$6.05 | ||
|
Unavailable |
|||
|
#11
OIL SEAL (14X24X5)
91202-302-000
Superseded by 91202-KFL-841
|
$6.05 | ||
|
Unavailable |
|||
|
#11
OIL SEAL (14X24X5)
91202-302-010
Superseded by 91202-KFL-841
|
$6.05 | ||
|
Unavailable |
|||
|
#11
OIL SEAL (14X24X5)
91205-HB2-771
Superseded by 91202-KFL-841
|
$6.05 | ||
|
Unavailable |
|||
|
#11
OIL SEAL (14X24X5)
91205-HB2-772
Superseded by 91202-KFL-841
|
$6.05 | ||
|
Unavailable |
|||
|
#11
OIL SEAL (14X24X5)
91205-035-303
Superseded by 91202-KFL-841
|
$6.05 | ||
|
Unavailable |
|||
|
#12
O-RING (4.9X2.5)
91301-283-005
Superseded by 91301-426-010
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (4.9X2.5)
91301-393-000
Superseded by 91301-426-010
|
$4.32 | ||
|
Unavailable |
|||
|
#12
O-RING (4.9X2.5)
91301-426-010
|
$4.32 | ||
|
Unavailable |
|||
|
#13
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#14
NUT, HEX. (8MM)
94002-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#15
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (6X35)
95700-06035-00
Superseded by 95701-06035-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.88 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (6X85)
95700-06085-00
Superseded by 95701-06085-00
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X85)
95701-06085-00
|
$1.86 | ||
|
Unavailable |
|||
