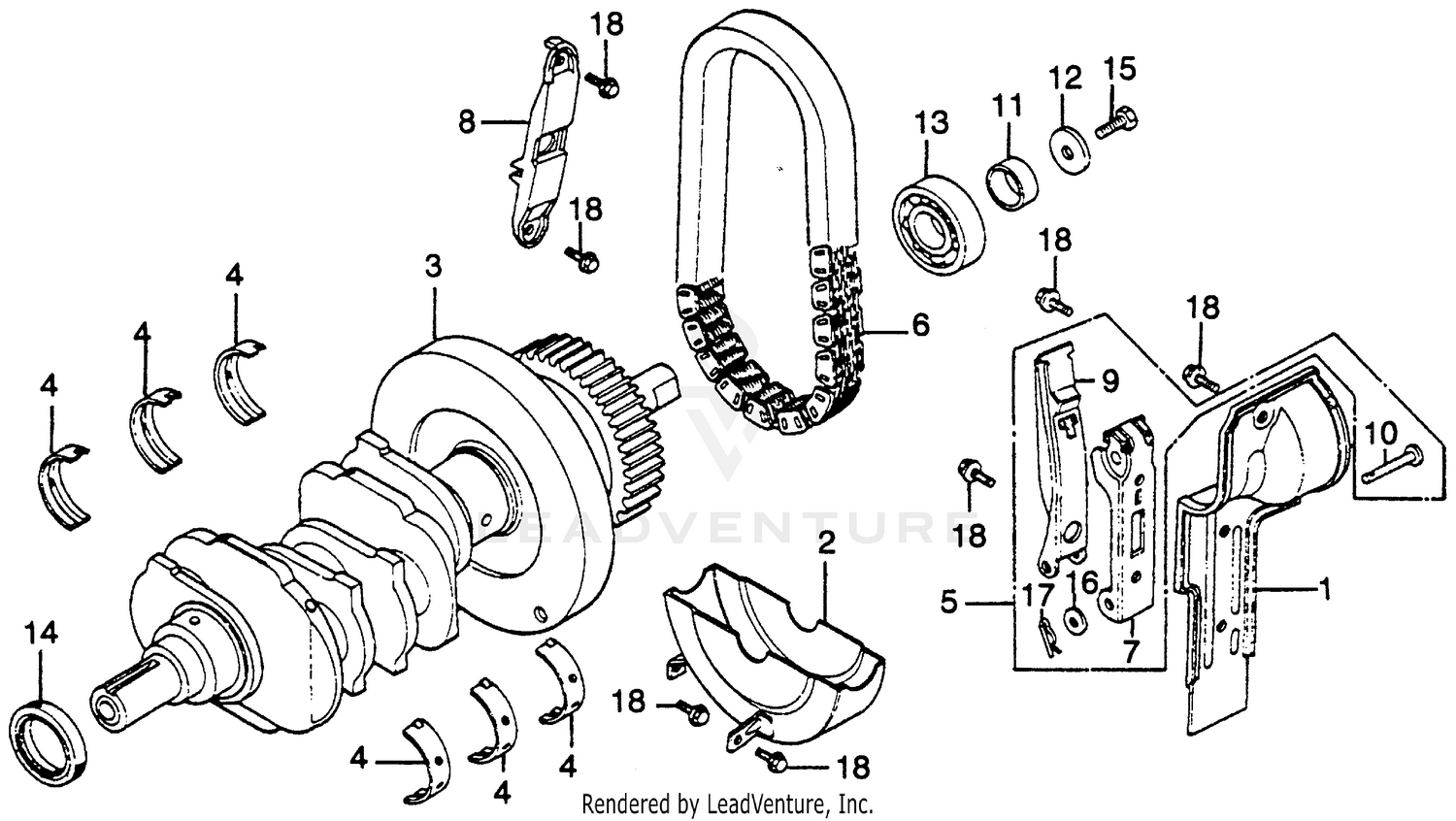

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, BREATHER
11130-371-000
|
$68.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, OIL SEPARATE
11140-431-000
|
$39.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKSHAFT (NOT AVAILABLE)
13310-431-000
Superseded by 13310-431-010
|
$2,154.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKSHAFT (NOT AVAILABLE)
13310-431-010
|
$2,154.83 | ||
|
Unavailable |
|||
|
#4
BEARING A, MAIN (BLUE)
13321-371-003
|
$17.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING B, MAIN (BLACK)
13322-371-003
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING C, MAIN (BROWN)
13323-371-003
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING D, MAIN (GREEN)
13324-371-003
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING E, MAIN (YELLOW)
13325-371-003
|
$21.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
TENSIONER ASSY., PRIMARY CHAIN
23130-431-000
|
$90.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
CHAIN, PRIMARY DRIVE (NOT AVAILABLE)
23131-371-004
|
$151.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, CHAIN GUIDE (NOT AVAILABLE)
23132-431-000
|
$20.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, R. PRIMARY CHAIN (NOT AVAILABLE)
23136-371-003
|
$68.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
TENSIONER, PRIMARY CHAIN (NOT AVAILABLE)
23137-431-000
|
$39.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN (8X44) (NOT AVAILABLE)
23138-431-000
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, RR. END
90402-431-000
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPECIAL (28X8.5X4.0)
90435-611-000
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (20X52X15) (TOYO)
91002-371-004
Superseded by 91003-MG8-003
|
$43.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (20X52X15) (TOYO)
91003-MG8-003
|
$43.79 | ||
|
Unavailable |
|||
|
#14
OIL SEAL (35X55X8)
91201-371-005
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (8X22)
92000-08022-0A
Superseded by 92101-08022-0A
|
$0.94 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (8X22)
92101-08022-0A
|
$0.94 | ||
|
Unavailable |
|||
|
#16
WASHER, PLAIN (8MM)
94101-08800
|
$1.93 | ||
|
Unavailable |
|||
|
#17
PIN, LOCK (8MM)
94251-08000
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X16)
95700-06016-00
Superseded by 95701-06016-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.64 | ||
|
Unavailable |
|||
