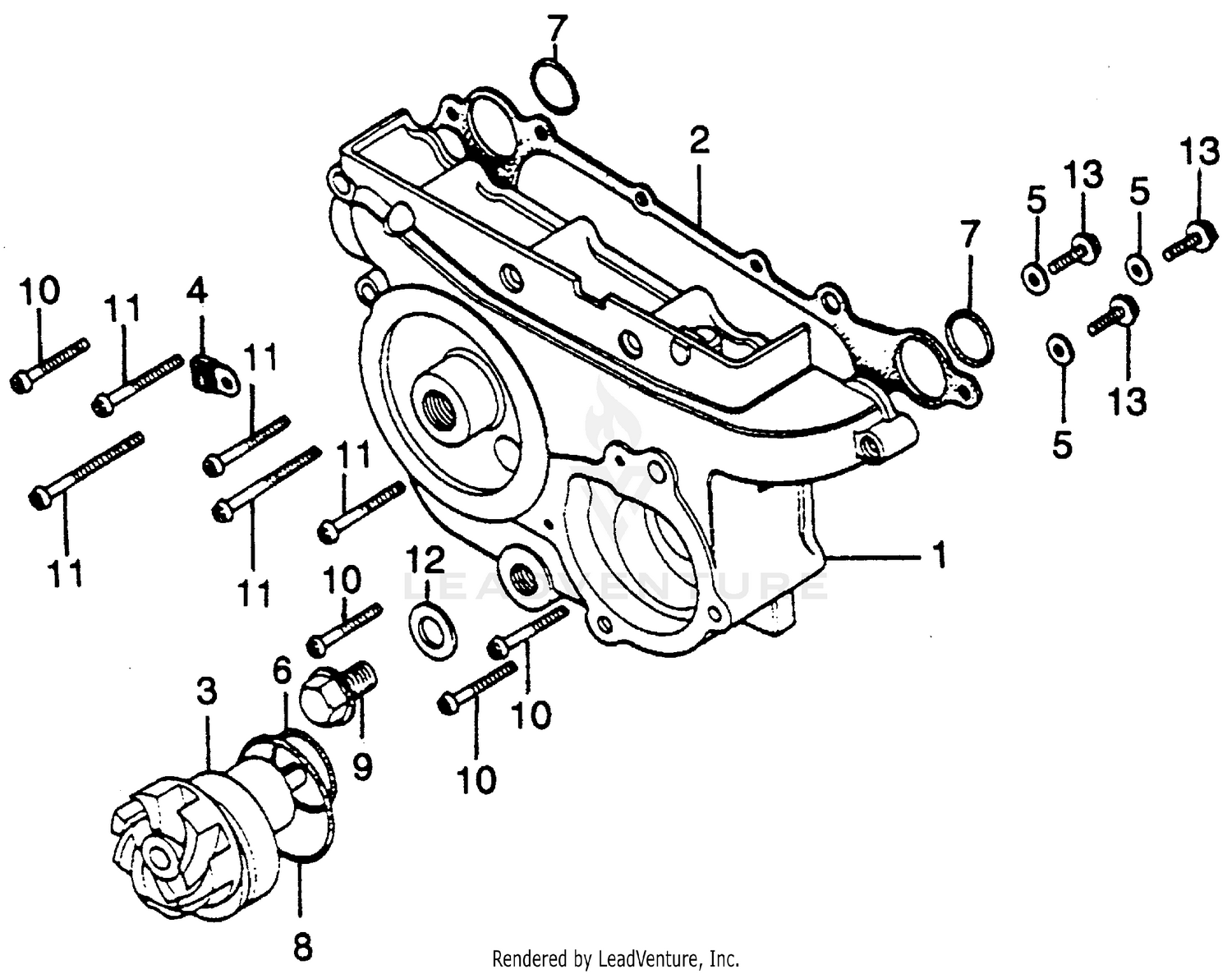

Transmission Cover + Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, TRANSMISSION (NOT AVAILABLE)
11360-371-000
Superseded by 11360-463-000
|
$328.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, TRANSMISSION COVER
11391-371-000
Superseded by 11391-371-306
|
$13.48 | ||
|
Unavailable |
|||
|
#2
GASKET, TRANSMISSION COVER
11391-371-306
|
$13.48 | ||
|
Unavailable |
|||
|
#3
WATER PUMP
19200-371-000
Superseded by 19200-MG9-681
|
$268.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
WATER PUMP
19200-MG9-680
Superseded by 19200-MG9-681
|
$268.64 | ||
|
Unavailable |
|||
|
#3
WATER PUMP
19200-MG9-681
|
$268.64 | ||
|
Unavailable |
|||
|
#3
WATER PUMP
19200-371-010
Superseded by 19200-MG9-681
|
$268.64 | ||
|
Unavailable |
|||
|
#3
WATER PUMP
19200-371-020
Superseded by 19200-MG9-681
|
$268.64 | ||
|
Unavailable |
|||
|
#4
CLAMP, CABLE
32111-323-000
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SEALING (6MM)
90441-028-010
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING (37X2.4) (ARAI) GASKET KIT A
91303-283-000
Superseded by 91305-KT7-003
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING (37X2.4) (ARAI)
91305-KT7-003
|
$3.16 | ||
|
Unavailable |
|||
|
#7
O-RING (23X2.1)
91312-371-003
Superseded by 91312-371-013
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING (23X2.1)
91312-371-013
|
$3.32 | ||
|
Unavailable |
|||
|
#8
O-RING (56X2.4)
91356-706-000
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, DRAIN PLUG (14MM)
92800-14000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN (6X35)
93500-06035
Superseded by 93500-06035-0A
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN (6X35)
93500-06035-0A
|
$1.10 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN (6X55)
93500-06055
Superseded by 93500-06055-0A
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN (6X55)
93500-06055-0A
|
$1.14 | ||
|
Unavailable |
|||
|
#12
WASHER, DRAIN PLUG (14MM)
94109-14000
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95700-06018-00
Superseded by 95701-06018-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X18)
95701-06018-00
|
$1.64 | ||
|
Unavailable |
|||
