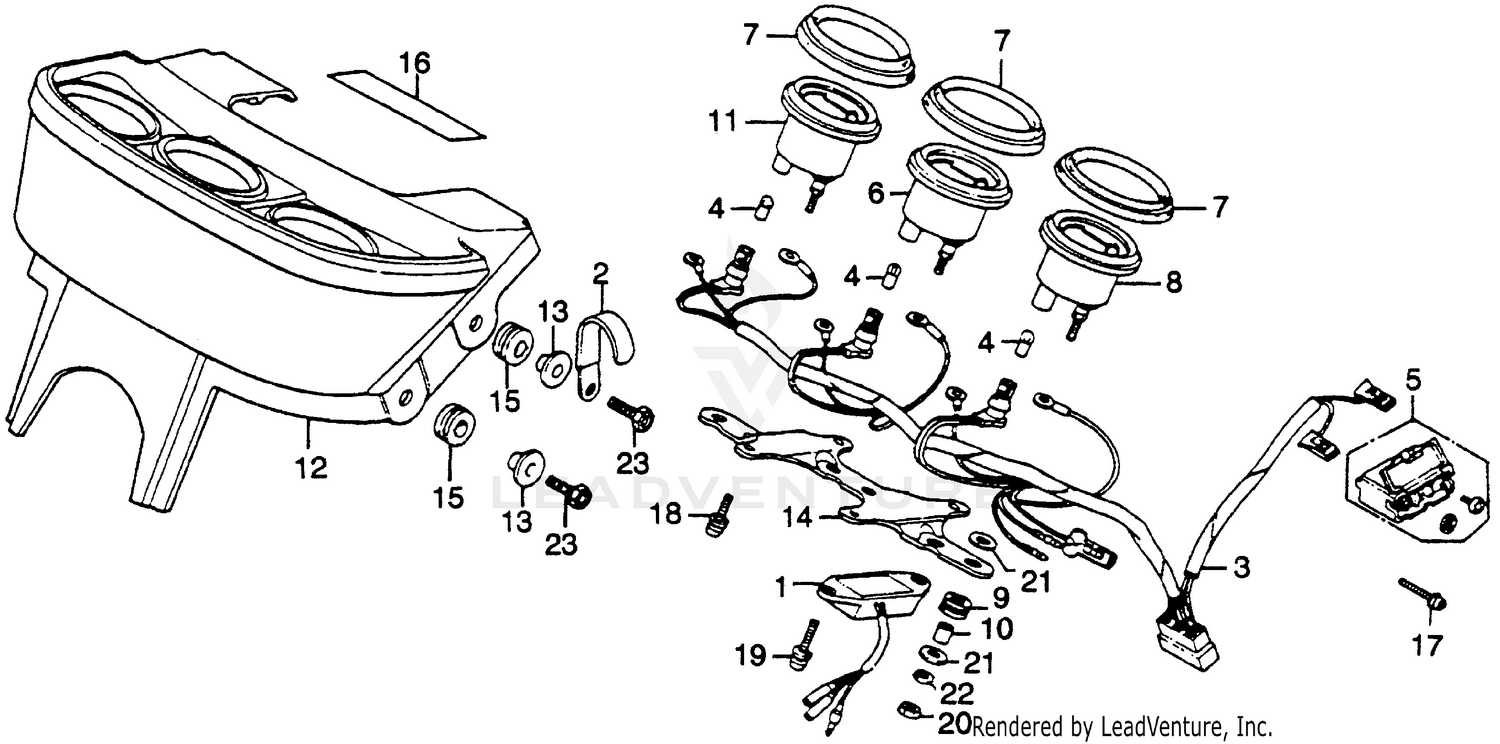

Fuel Meter + Temperature Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REGULATOR ASSY. (7V)
31410-431-007
|
$95.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP, WIRE HARNESS (NOT AVAILABLE)
32172-315-000
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE ASSY., METER (NOT AVAILABLE)
32219-431-611
|
$48.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB, DASH (12V3.4W) (IMASEN)
34902-259-000
|
$2.62 | ||
|
Unavailable |
|||
|
#5
BOX ASSY., ACCESSORY (NOT AVAILABLE)
36100-431-005
|
$19.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
METER ASSY., FUEL (NOT AVAILABLE)
37300-431-008
|
$86.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, METER SETTING (NOT AVAILABLE)
37305-431-670
|
$15.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
METER ASSY., TEMPERATURE (NOT AVAILABLE)
37400-431-008
|
$83.68 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, TEMPERATURE METER (NOT AVAILABLE)
37451-431-000
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, TEMPERATURE METER (NOT AVAILABLE)
37452-431-000
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
VOLTMETER ASSY. (NOT AVAILABLE)
37500-431-008
|
$99.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
PANEL, SUB-METER *A01* (MAT BLACK) (NOT AVAILABLE)
66840-431-670ZA
|
$91.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, PANEL MOUNT (NOT AVAILABLE)
66841-431-670
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, METER MOUNT
66842-431-670
|
$37.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, PANEL SETTING (NOT AVAILABLE)
66843-431-670
|
$1.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
MARK, DRIVE CAUTION (NOT AVAILABLE)
87560-431-670
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-WASHER (5X32)
93891-05032-00
|
$0.94 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW-WASHER (5X12)
93892-05012-08
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW-WASHER (5X12)
93892-05012-18
Superseded by 93892-05012-08
|
$1.15 | ||
|
Unavailable |
|||
|
#19
SCREW-WASHER (5X20)
93892-05020-08
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (5X20)
93892-05020-18
Superseded by 93892-05020-08
|
$1.13 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (4MM)
94001-04080-0S
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (4MM)
94103-04800
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING (4MM)
94111-04000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X20)
95700-06020-07
Superseded by 95701-06020-07
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X20)
95701-06020-07
|
$1.64 | ||
|
Unavailable |
|||
