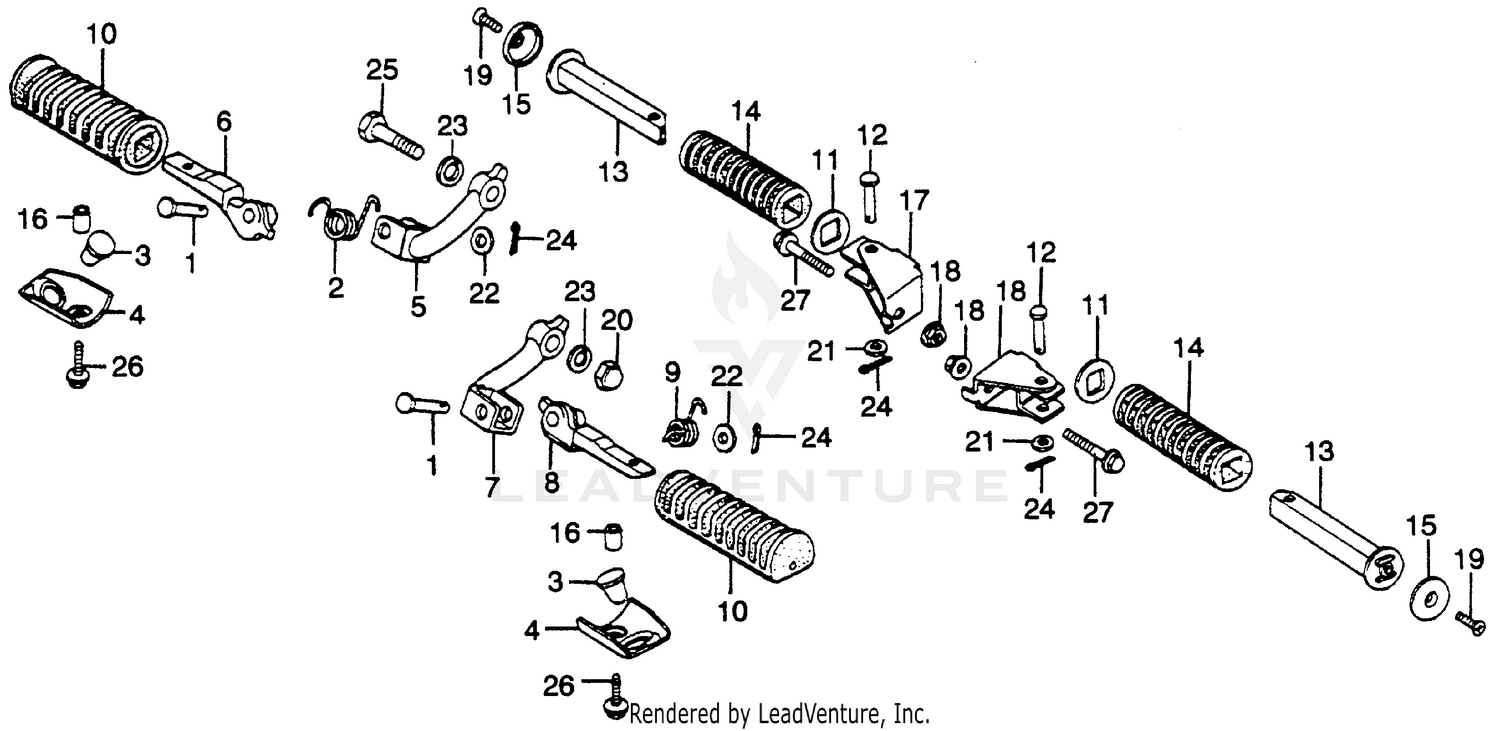

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, STEP BAR JOINT
50603-033-010
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#1
PIN, STEP BAR JOINT
50603-371-660
Superseded by 50603-033-010
|
$3.58 | ||
|
Unavailable |
|||
|
#2
SPRING, R. STEP RETURN
50617-300-670
|
$4.07 | ||
|
Unavailable |
|||
|
#3
SLIDER, FOOTPEG (NOT AVAILABLE)
50618-431-670
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, STEP RUBBER (NOT AVAILABLE)
50619-405-000
Superseded by 50619-MB9-000
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, R. STEP
50630-371-000
|
$44.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM, R. STEP
50632-405-000
|
$43.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, L. STEP (NOT AVAILABLE)
50640-431-670
|
$36.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, L. STEP (NOT AVAILABLE)
50642-405-000
|
$43.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, L. STEP RETURN
50644-300-670
|
$4.01 | ||
|
Unavailable |
|||
|
#10
RUBBER, STEP
50661-405-000
|
$9.68 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PILLION STEP
50712-371-660
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN B, PILLION STEP
50714-371-660
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAR, PILLION STEP
50715-371-660
|
$26.63 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, PILLION FOOTPEG
50716-371-660
|
$16.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, PILLION STEP (NOT AVAILABLE)
50717-371-660
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, NUMBER BRACKET SETTING
84706-286-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, PILLION STEP
90167-371-660
|
$33.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (10MM)
90201-329-000
Superseded by 94050-10000
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (10MM)
90204-634-000
Superseded by 94050-10000
|
$1.43 | ||
|
Unavailable |
|||
|
#18
NUT, FLANGE (10MM)
94030-10000-07
Superseded by 94050-10000
|
$1.43 | ||
|
Unavailable |
|||
|
#18
NUT, FLANGE (10MM)
94050-10000
|
$1.43 | ||
|
Unavailable |
|||
|
#19
SCREW, OVAL (4X12)
93700-04012-0B
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CAP (12MM)
94021-12200-0S
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#21
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#22
WASHER, PLAIN (8MM)
94101-08000
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING (12MM)
94111-12000
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, COTTER (1.6X25)
94201-16250
|
$1.03 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (12X40) (NOT AVAILABLE)
95300-12040
Superseded by 95300-12040-00
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (12X40) (NOT AVAILABLE)
95300-12040-00
|
$1.06 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95700-06018-00
Superseded by 95701-06018-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X18)
95701-06018-00
|
$1.64 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (10X40)
95700-10040-00
Superseded by 95701-10040-00
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (10X40)
95701-10040-00
|
$1.66 | ||
|
Unavailable |
|||
