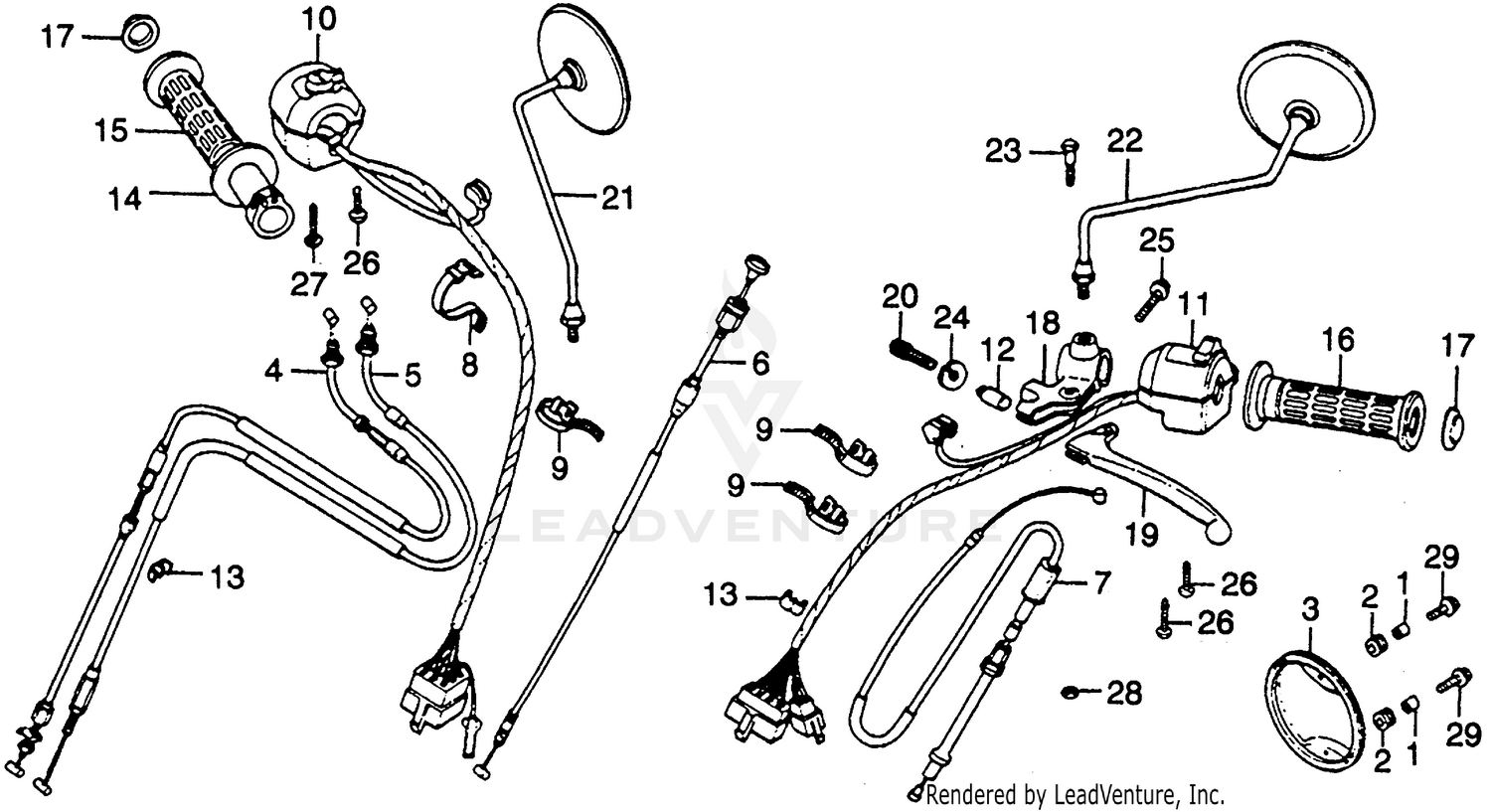

Handle Lever + Switch + Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
WASHER, PLAIN (6MM)
94101-06200
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#1
COLLAR, ADJUSTING COVER
11346-371-300
|
$12.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET, ADJUSTING COVER
11347-371-300
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, CLUTCH ADJUST (NOT AVAILABLE)
11348-371-000
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE A, THROTTLE
17910-MB9-670
|
$40.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE A, THROTTLE
17910-371-660
Superseded by 17910-MB9-670
|
$40.78 | ||
|
Unavailable |
|||
|
#5
CABLE B, THROTTLE
17920-371-660
Superseded by 17920-463-405
|
$44.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE B, THROTTLE
17920-463-405
|
$44.76 | ||
|
Unavailable |
|||
|
#6
CABLE, CHOKE
17950-371-000
Superseded by 17950-371-010
|
$27.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, CHOKE
17950-371-010
|
$27.98 | ||
|
Unavailable |
|||
|
#7
CABLE, CLUTCH
22870-371-660
|
$39.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND B1, CABLE
32161-404-000
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND B1, CABLE
32161-404-610
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., STARTING STOP (NOT AVAILABLE)
35130-431-671
|
$86.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)
35200-431-671
Superseded by 35200-431-781
|
$80.46 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH, FR. LEVER
35330-413-003
|
$25.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, FR. BRAKE CABLE
45465-270-000
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, FR. BRAKE CABLE
45465-341-700
Superseded by 45465-270-000
|
$5.92 | ||
|
Unavailable |
|||
|
#14
PIPE, THROTTLE GRIP
53141-300-010
|
$24.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
GRIP, R. HANDLEBAR
53165-371-000
Superseded by 53165-390-780
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
GRIP, R. HANDLEBAR
53165-390-780
|
$12.80 | ||
|
Unavailable |
|||
|
#16
GRIP, L. HANDLEBAR
53166-371-000
Superseded by 53166-390-780
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
GRIP, L. HANDLEBAR
53166-390-780
|
$12.80 | ||
|
Unavailable |
|||
|
#17
CAP, HANDLE END (NOT AVAILABLE)
53167-371-000
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, L. HANDLEBAR (NOT AVAILABLE)
53172-431-003
|
$38.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
LEVER, L. HANDLE
53178-431-003
|
$24.74 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, CLUTCH CABLE ADJUSTING
53192-312-000
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
MIRROR, R. (NOT AVAILABLE)
88100-371-660
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
MIRROR, L. (NOT AVAILABLE)
88120-371-660
|
$26.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HANDLE LEVER PIVOT
90114-268-020
Superseded by 90114-310-000
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HANDLEBAR LEVER PIVOT
90114-310-000
|
$5.89 | ||
|
Unavailable |
|||
|
#24
NUT, FIXING
90321-315-670
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FIXING
90321-968-000
Superseded by 90321-315-670
|
$8.78 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (6X25)
93000-06025-0B
Superseded by 93101-06025-0B
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (6X25)
93000-06025-02
Superseded by 93101-06025-0B
|
$2.00 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (6X25)
93101-06025-0B
|
$2.00 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN (5X25)
93500-05025-0A
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (5X35)
93500-05035-0A
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X16)
95700-06016-00
Superseded by 95701-06016-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.64 | ||
|
Unavailable |
|||
