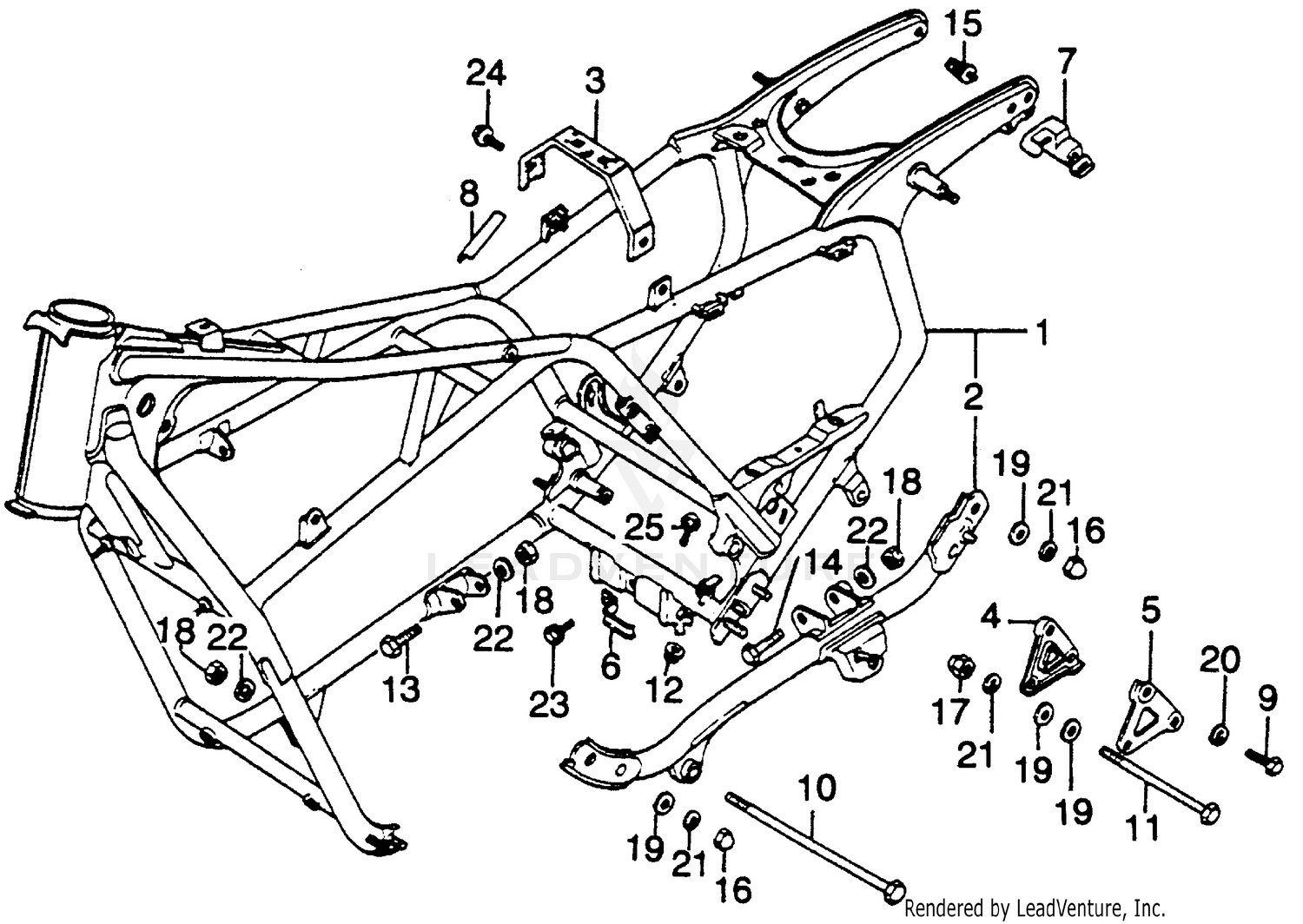

Frame Diagram

Item MSRP Qty
#1 FRAME *NH1* (BLACK)
50100-431-671ZA
Superseded by 50100-431-771ZA
 $1,977.82
Available to order.
Add to View Price
#1 FRAME *NH1* (BLACK)
50100-431-672ZA
Superseded by 50100-431-771ZA
 $1,977.82
Unavailable
#1 FRAME *NH1* (BLACK)
50100-431-770ZA
Superseded by 50100-431-771ZA
 $1,977.82
Unavailable
#1 FRAME *NH1* (BLACK)
50100-431-770ZA
Superseded by 50100-431-771ZA
 $1,977.82
Unavailable
#1 FRAME *NH1* (BLACK)
50100-431-771ZA
 $1,977.82
Unavailable
#1 FRAME *NH1* (BLACK)
50100-431-771ZA
 $1,977.82
Unavailable
#2 SUB-FRAME *NH1* (BLACK) (NOT AVAILABLE)
50114-431-670ZA
Superseded by 50114-371-000ZA
 $113.14
Available to order.
Add to View Price
#3 PLATE, SEAT CROSS (NOT AVAILABLE)
50250-371-000
 $16.72
Available to order.
Add to View Price
#4 BRACKET, R. ENGINE HANGER
50351-371-660
 $30.22
Available to order.
Add to View Price
#5 BRACKET, L. ENGINE HANGER
50352-371-660
 $27.03
Available to order.
Add to View Price
#6 CLAMP, TUBE (NOT AVAILABLE)
50358-371-000
 $3.67
Available to order.
Add to View Price
#7 HOLDER ASSY., HELMET (HONDALOCK)
50710-086-007
 $76.88
Available to order.
Add to View Price
#7 HOLDER ASSY., HELMET (HONDALOCK)
50710-371-007
Superseded by 50710-086-007
 $76.88
Unavailable
#8 MARK, MUFFLER CAUTION (NOT AVAILABLE)
87504-371-670
 $3.66
Available to order.
Add to View Price
#9 BOLT,HEX(8X20)
90101-371-980
Superseded by 92101-08020-0B
 $1.73
Available to order.
Add to View Price
#9 BOLT,HEX(8X20)
90101-605-000
Superseded by 92101-08020-0B
 $1.73
Unavailable
#9 BOLT,HEX(8X20)
92000-08020-0B
Superseded by 92101-08020-0B
 $1.73
Unavailable
#9 BOLT,HEX(8X20)
92000-08020-02
Superseded by 92101-08020-0B
 $1.73
Unavailable
#9 BOLT,HEX(8X20)
92100-08020-0B
Superseded by 92101-08020-0B
 $1.73
Unavailable
#10 BOLT, FR. ENGINE HANGER
90152-371-000
 $27.83
Available to order.
Add to View Price
#11 BOLT, ENGINE HANGER (UPPER)
90153-371-000
 $31.50
Available to order.
Add to View Price
#12 NUT, FLANGE (8MM)
90236-300-000
Superseded by 94050-08000
 $0.87
Available to order.
Add to View Price
#12 NUT, FLANGE (8MM)
94050-08000
 $0.87
Unavailable
#13 BOLT, HEX. (12X65) (NOT AVAILABLE)
92200-12065-0A
 $1.54
Available to order.
Add to View Price
#14 BOLT, HEX. (12X80) (NOT AVAILABLE)
92200-12080-0A
 $1.54
Available to order.
Add to View Price
#15 SCREW-WASHER (6X12)
93893-06012-08
 $1.44
Available to order.
Add to View Price
#16 NUT, CAP (10MM)
94021-10200-0S
 $0.95
Available to order.
Add to View Price
#17 NUT, CAP (10MM)
94021-10220-0S
 $2.18
Available to order.
Add to View Price
#18 NUT, HEX. (12MM)
94030-12200
 $1.73
Available to order.
Add to View Price
#19 WASHER, PLAIN (10MM)
94102-10000
 $0.74
Available to order.
Add to View Price
#20 WASHER, SPRING (8MM)
94111-08000
 $0.98
Available to order.
Add to View Price
#21 WASHER, SPRING (8MM)
94111-10000
 $1.35
Available to order.
Add to View Price
#22 WASHER, SPRING (12MM)
94111-12000
 $1.23
Available to order.
Add to View Price
#23 BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
 $1.65
Available to order.
Add to View Price
#23 BOLT, FLANGE (6X12)
95701-06012-08
 $1.65
Unavailable
#24 BOLT, FLANGE (8X14)
95700-08014-08
Superseded by 95701-08014-08
 $1.79
Available to order.
Add to View Price
#24 BOLT, FLANGE (8X14)
95701-08014-08
 $1.79
Unavailable
#25 BOLT, FLANGE (8X40)
95700-08040-08
Superseded by 95701-08040-08
 $2.28
Available to order.
Add to View Price
#25 BOLT, FLANGE (8X40)
95701-08040-08
 $2.28
Unavailable
