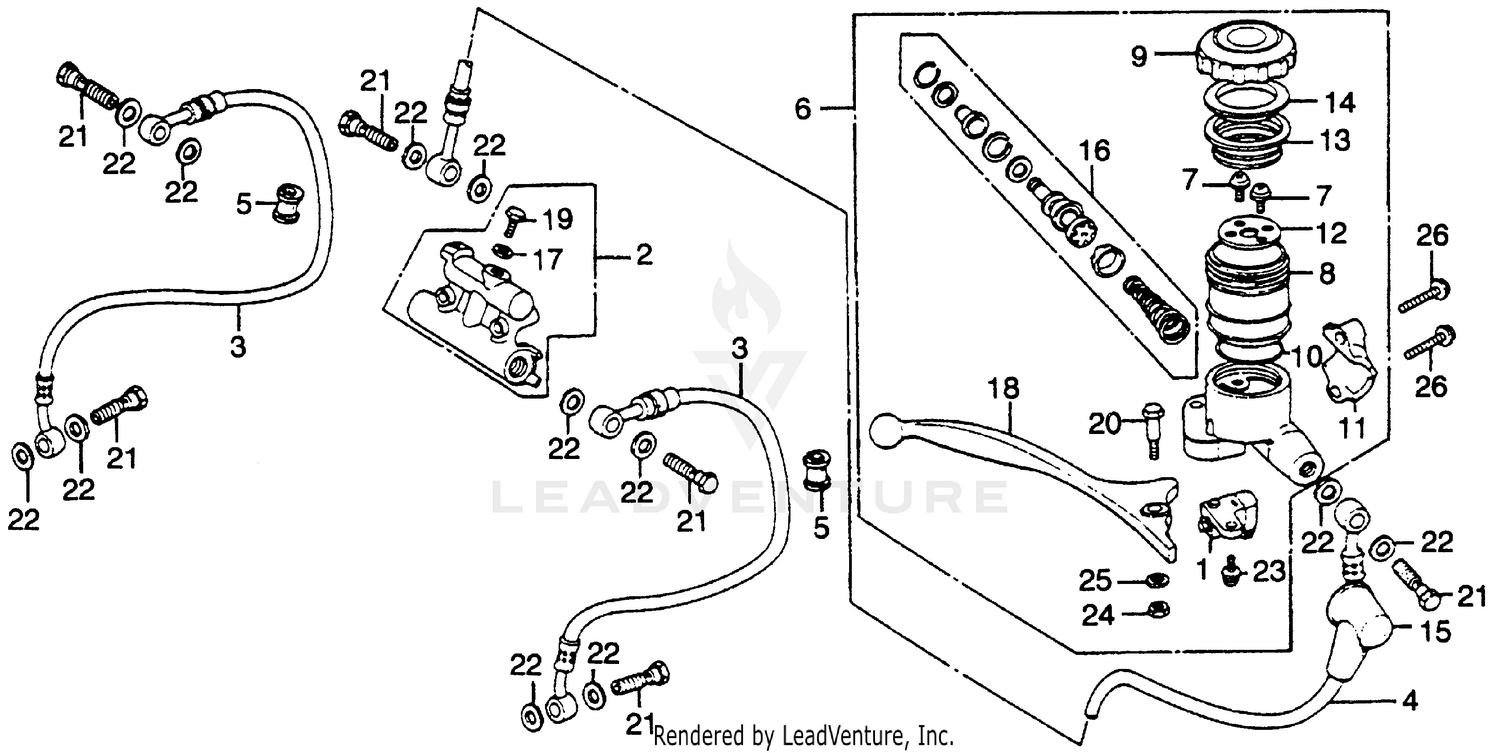

Front Master Cylinder 78 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-413-003
Superseded by 35340-413-013
|
$23.84 | ||
|
Available to order. Add to View Price |
|||
|
#1
SWITCH ASSY., FR. STOP
35340-413-013
|
$23.84 | ||
|
Unavailable |
|||
|
#2
JOINT ASSY., THREE-WAY
45123-410-000
|
$49.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE A, FR. BRAKE
45125-371-013
|
$56.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE B, FR. BRAKE (NOT AVAILABLE)
45126-371-660
Superseded by 45126-371-980
|
$46.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, BRAKE HOSE
45146-371-000
|
$3.69 | ||
|
Unavailable |
|||
|
#6
MASTER CYLINDER ASSY., FR. (NOT AVAILABLE)
45500-431-671
Superseded by 45500-431-672
|
$237.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
MASTER CYLINDER ASSY., FR. (NOT AVAILABLE)
45500-431-672
|
$237.63 | ||
|
Unavailable |
|||
|
#7
SCREW, OIL CUP (NOT AVAILABLE)
45509-371-000
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUP, OIL (NISSHIN) (NOT AVAILABLE)
45511-371-003
|
$9.68 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, OIL CUP
43513-MJ6-006
|
$26.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, OIL CUP
43513-461-771
Superseded by 43513-MJ6-006
|
$26.26 | ||
|
Unavailable |
|||
|
#9
CAP, OIL CUP
45513-341-771
Superseded by 43513-MJ6-006
|
$26.26 | ||
|
Unavailable |
|||
|
#10
O-RING (43.7X2.5)
45516-371-003
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, MASTER CYLINDER
45517-MA5-671
|
$33.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, MASTER CYLINDER
45517-300-003
Superseded by 45517-MA5-671
|
$33.96 | ||
|
Unavailable |
|||
|
#12
PLATE, OIL CUP (NOT AVAILABLE)
45518-371-003
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM
45520-371-003
Superseded by 45520-371-013
|
$15.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM
45520-371-013
|
$15.45 | ||
|
Unavailable |
|||
|
#14
PLATE, DIAPHRAGM
45521-MJ6-006
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, DIAPHRAGM
45521-300-010
Superseded by 45521-MJ6-006
|
$4.87 | ||
|
Unavailable |
|||
|
#15
BOOT, MASTER CYLINDER
45522-300-010
|
$10.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
MASTER CYLINDER SET, FR.
45530-410-305
|
$50.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, STOPPER BOLT (NOT AVAILABLE)
46138-568-671
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, R. HANDLEBAR
53175-431-670
|
$26.26 | ||
|
Unavailable |
|||
|
#19
BOLT, SEALING (NISSHIN) (NOT AVAILABLE)
90105-371-003
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HANDLEBAR LEVER PIVOT (NOT AVAILABLE)
90114-393-770
|
$5.86 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, OIL
90145-300-000
Superseded by 90145-300-010
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, OIL
90145-300-010
|
$11.22 | ||
|
Unavailable |
|||
|
#22
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-WASHER (4X12)
93893-04012-00
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEX. (6MM)
94002-06000
Superseded by 94002-06000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEX. (6MM)
94002-06000-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#25
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#25
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X25)
95700-06025-00
Superseded by 95701-06025-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.79 | ||
|
Unavailable |
|||
