1978 Honda GL1000 GOLD WING Cylinder Head OEM Parts

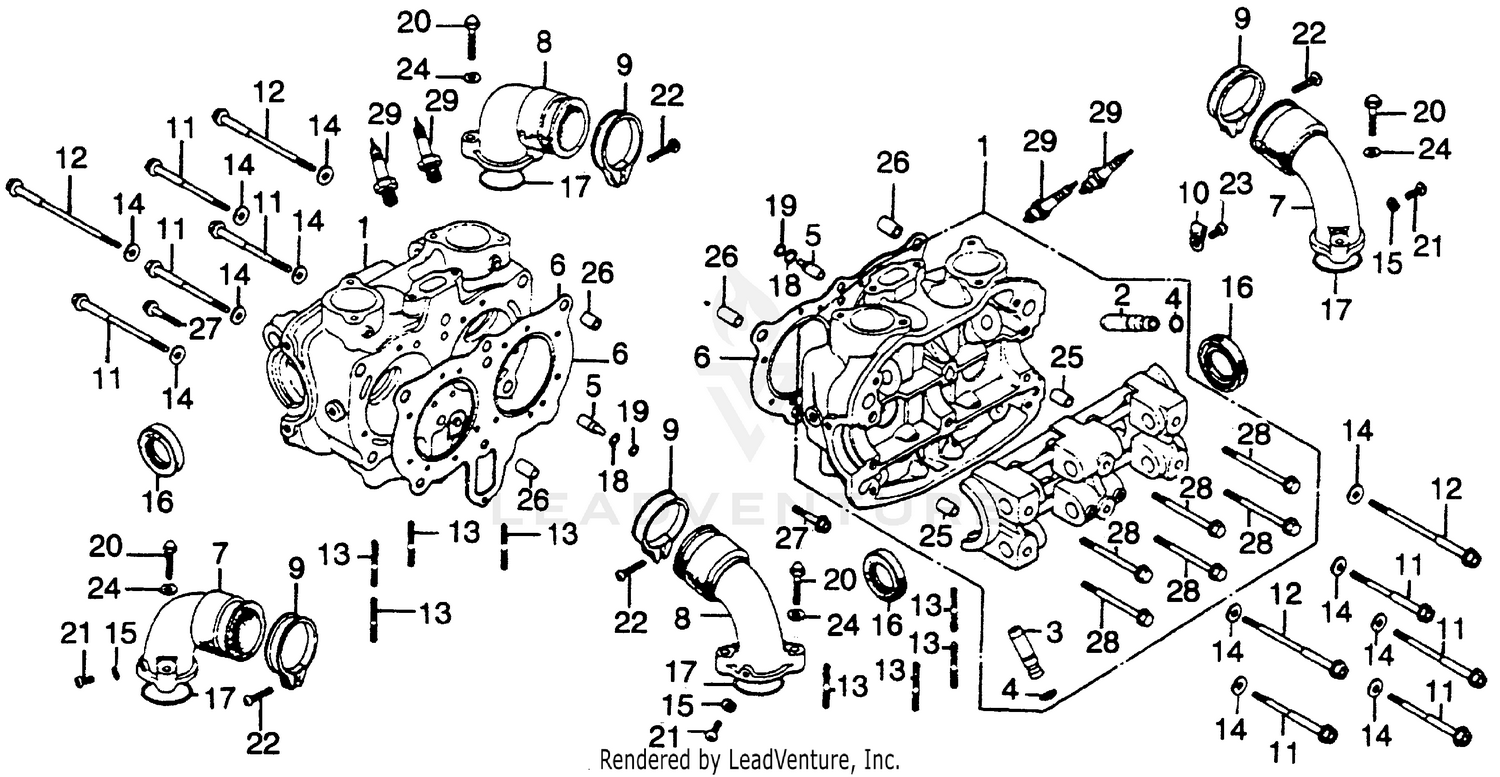

Cylinder Head Diagram

Item	MSRP	Qty
#1 CYLINDER HEAD (NOT AVAILABLE) 12200-371-010	$410.36
Available to order. Add to View Price
#2 GUIDE, VALVE 12204-371-305	$16.63
Available to order. Add to View Price
#3 GUIDE, VALVE 12204-371-305	$16.63
Unavailable
#3 GUIDE, VALVE 12205-371-305 Superseded by 12204-371-305	$16.63
Unavailable
#4 CLIP, VALVE GUIDE 12211-250-310	$4.40
Available to order. Add to View Price
#5 ORIFICE, OIL CONTROL 12238-371-000	$7.03
Available to order. Add to View Price
#6 GASKET, CYLINDER HEAD 12251-371-003 Superseded by 12251-371-306	$75.69
Available to order. Add to View Price
#6 GASKET, CYLINDER HEAD 12251-371-306	$75.69
Unavailable
#7 MANIFOLD A, IN. (NOT AVAILABLE) 17110-431-000 Superseded by 17110-431-010	$74.96
Available to order. Add to View Price
#7 MANIFOLD A, IN. (NOT AVAILABLE) 17110-431-010	$74.96
Unavailable
#8 MANIFOLD B, IN. (NOT AVAILABLE) 17120-431-000 Superseded by 17120-431-010	$74.96
Available to order. Add to View Price
#8 MANIFOLD B, IN. (NOT AVAILABLE) 17120-431-010	$74.96
Unavailable
#9 BAND, AIR CLEANER CONNECTING TUBE (54) 17255-371-000 Superseded by 95018-54250	$6.18
Available to order. Add to View Price
#9 BAND, AIR CLEANER CONNECTING TUBE (54) 95018-54250	$6.18
Unavailable
#10 CLAMP, CABLE 32111-323-000	$4.78
Available to order. Add to View Price
#11 BOLT, FLANGE (10X90) 90001-371-003 Superseded by 90001-371-013	$10.06
Available to order. Add to View Price
#11 BOLT, FLANGE (10X90) 90001-371-013	$10.06
Unavailable
#12 BOLT, FLANGE (10X115) 90002-371-003 Superseded by 90002-371-013	$11.37
Available to order. Add to View Price
#12 BOLT, FLANGE (10X115) 90002-371-013	$11.37
Unavailable
#13 BOLT, STUD (8X43) 90035-371-000	$4.61
Available to order. Add to View Price
#14 WASHER (21X11X2.3) 90438-634-000	$4.34
Available to order. Add to View Price
#15 WASHER, SEALING (5MM) 90452-323-000	$1.83
Available to order. Add to View Price
#16 OIL SEAL (27X43X9) 91209-371-003	$20.39
Available to order. Add to View Price
#17 O-RING (40X2.6) 91301-371-005	$5.57
Available to order. Add to View Price
#18 O-RING (6.5X1.5) 91305-371-003	$3.05
Available to order. Add to View Price
#19 O-RING (4.1X1.5) 91308-371-003	$5.79
Available to order. Add to View Price
#20 BOLT, CAP (6X32) 92500-06032-0B	$4.42
Available to order. Add to View Price
#21 SCREW, PAN (5X8) 93500-05008-0A	$0.86
Available to order. Add to View Price
#22 SCREW, PAN (5X20) 93500-05020-0G	$0.81
Available to order. Add to View Price
#23 SCREW, PAN (6X8) 90053-371-980 Superseded by 93500-06008-0H	$1.10
Available to order. Add to View Price
#23 SCREW, PAN (6X8) 93500-06008	$1.10
Available to order. Add to View Price
#23 SCREW, PAN (6X8) 93500-06008-0A	$1.10
Unavailable
#23 SCREW, PAN (6X8) 93500-06008-0H	$1.10
Unavailable
#23 SCREW, PAN (6X8) 93500-06008-1H Superseded by 93500-06008-0H	$1.10
Unavailable
#24 WASHER, PLAIN (6MM) 94101-06000 Superseded by 94101-06800	$0.64
Available to order. Add to View Price
#24 WASHER, PLAIN (6MM) 94101-06080 Superseded by 94101-06800	$0.64
Unavailable
#24 WASHER, PLAIN (6MM) 94101-06800	$0.64
Unavailable
#25 PIN A, DOWEL (10X16) 94301-10160	$2.47
Available to order. Add to View Price
#26 PIN A, DOWEL (12X20) 94301-12200	$2.47
Available to order. Add to View Price
#27 BOLT, FLANGE (6X28) 95700-06028-00	$1.81
Unavailable
#27 BOLT, FLANGE (6X28) 95701-06028-00	$1.81
Available to order. Add to View Price
#28 BOLT, FLANGE (8X70) 95700-08070-00 Superseded by 95701-08070-00	$2.88
Available to order. Add to View Price
#28 BOLT, FLANGE (8X70) 95701-08070-00	$2.88
Unavailable
#29 SPARK PLUG (D8EA) (NGK) 98069-58717	$2.70
Unavailable
#29 SPARK PLUG (X24ES-U) (DENSO) 98069-58727	$2.43
Available to order. Add to View Price
