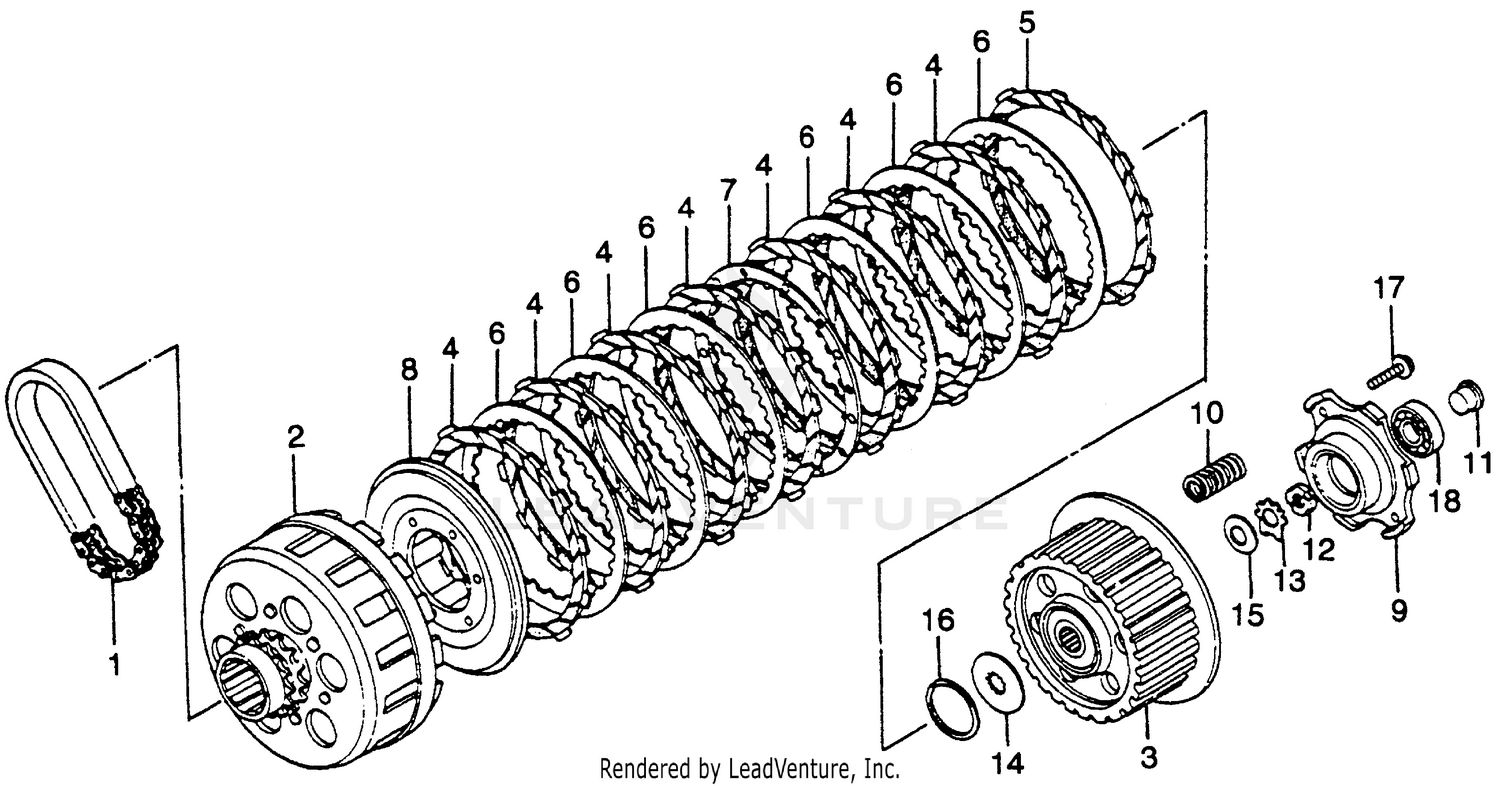

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, OIL PUMP
15130-371-003
|
$62.01 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH (OUTER) (NOT AVAILABLE)
22100-371-020
|
$180.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
CENTER, CLUTCH (NOT AVAILABLE)
22120-371-020
|
$111.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
DISK A, CLUTCH FRICTION
22201-371-000
|
$36.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISK B, CLUTCH FRICTION
22202-371-000
Superseded by 22202-392-000
|
$22.07 | ||
|
Unavailable |
|||
|
#5
DISK B, CLUTCH FRICTION
22202-392-000
|
$22.07 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH
22321-MG8-000
|
$17.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH
22321-283-000
Superseded by 22321-MG8-000
|
$17.88 | ||
|
Unavailable |
|||
|
#7
PLATE B, CLUTCH
22322-371-020
|
$60.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, PRESSURE (NOT AVAILABLE)
22350-371-020
|
$43.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH LIFTER (NOT AVAILABLE)
22360-371-000
|
$36.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, CLUTCH
22401-268-000
Superseded by 95014-75140
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, CLUTCH
95014-75140
|
$3.67 | ||
|
Unavailable |
|||
|
#11
PIECE, CLUTCH LIFTER
22846-371-000
|
$9.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, LOCK (16MM)
90231-KCS-651
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, LOCK (16MM)
90231-200-010
Superseded by 90231-KCS-651
|
$5.06 | ||
|
Unavailable |
|||
|
#13
WASHER, SPRING (16MM)
90431-292-000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPLINE (23MM)
90432-371-000
Superseded by 90433-MB0-000
|
$16.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPLINE (23MM)
90433-MB0-000
|
$16.81 | ||
|
Unavailable |
|||
|
#15
WASHER (16MM) (NOT AVAILABLE)
90481-292-000
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP (OUTER) (40MM) (NOT AVAILABLE)
90602-371-000
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X22)
95700-06022-00
Superseded by 95701-06022-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.79 | ||
|
Unavailable |
|||
|
#18
BEARING, RADIAL BALL (6205)
96100-62050
Superseded by 96100-62050-00
|
$21.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6205)
96100-62050-00
|
$21.59 | ||
|
Unavailable |
|||
|
#18
BEARING, RADIAL BALL (6205)
96100-62050-10
|
$23.79 | ||
|
Available to order. Add to View Price |
|||
