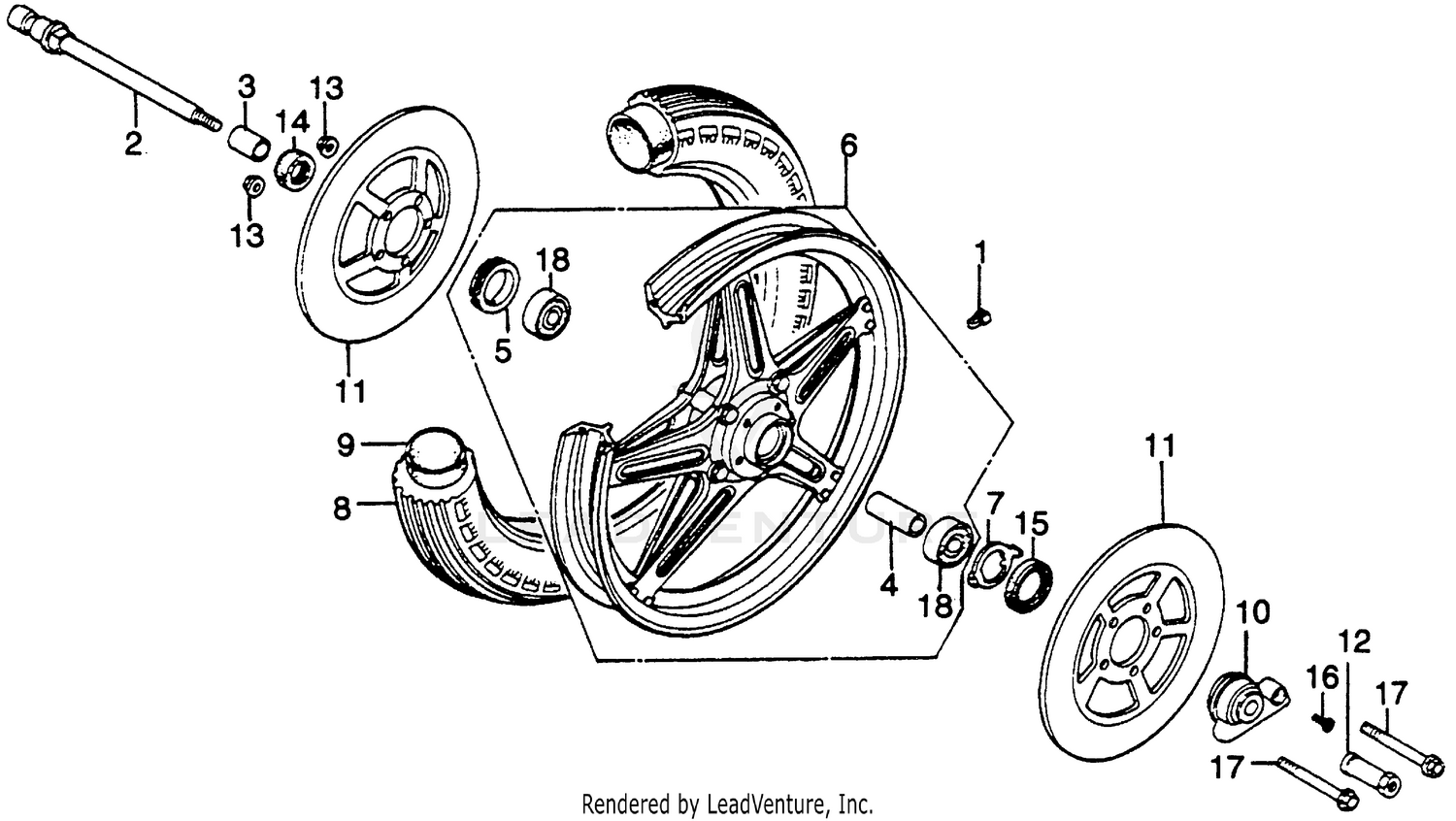

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WEIGHT, BALANCE (20G)
42705-410-000
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#1
WEIGHT, BALANCE (30G)
42706-410-000
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE, FR. WHEEL (NOT AVAILABLE)
44301-371-000
|
$55.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)
44311-410-000
Superseded by 44311-425-870
|
$32.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. WHEEL DISTANCE
44620-410-000
|
$11.03 | ||
|
Available to order. Add to View Price |
|||
|
#5
RETAINER, FR. WHEEL BEARING
44643-300-000
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
WHEEL, FR. (NOT AVAILABLE)
44650-431-670
Superseded by 44650-431-671
|
$1,013.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WHEEL, FR. (NOT AVAILABLE)
44650-431-671
|
$1,013.49 | ||
|
Unavailable |
|||
|
#7
RETAINER, GEAR BOX
44680-410-000
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
TIRE, FR. (3.50H-19) (BS) (NOT AVAILABLE)
44711-371-671
|
$49.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, TIRE
08400-34001
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#9
TUBE, TIRE (3.50-19) (BS)
08400-37110
Superseded by 44712-371-003
|
$52.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, TIRE
42712-KT1-671
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#9
TUBE, TIRE
42712-400-003
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#9
TUBE, TIRE (3.50-19) (BS)
44712-300-003
Superseded by 44712-371-003
|
$52.13 | ||
|
Unavailable |
|||
|
#9
TUBE, TIRE (DUNLOP) (NOT AVAILABLE)
44712-300-004
|
$71.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, TIRE (3.50-19) (BS)
44712-371-003
|
$52.13 | ||
|
Unavailable |
|||
|
#10
BOX ASSY., SPEEDOMETER GEAR
44800-410-003
Superseded by 44800-425-013
|
$93.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOX ASSY., SPEEDOMETER GEAR
44800-425-003
Superseded by 44800-425-013
|
$93.56 | ||
|
Unavailable |
|||
|
#10
BOX ASSY., SPEEDOMETER GEAR
44800-425-013
|
$93.56 | ||
|
Unavailable |
|||
|
#11
DISK, FR. BRAKE (NOT AVAILABLE)
45251-410-000
Superseded by 45251-410-305
|
$420.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
DISK, FR. BRAKE (NOT AVAILABLE)
45251-410-305
|
$420.30 | ||
|
Unavailable |
|||
|
#12
NUT, AXLE (12MM) (NOT AVAILABLE)
90305-431-670
|
$16.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, HEX. (8MM)
90309-357-000
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
DUST SEAL (22X36X8)
91252-300-003
|
$12.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUST SEAL (40X50X5) (ARAI)
91258-410-003
Superseded by 91258-410-013
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUST SEAL (40X50X5) (ARAI)
91258-410-006
Superseded by 91258-410-013
|
$11.37 | ||
|
Unavailable |
|||
|
#15
DUST SEAL (40X50X5) (ARAI)
91258-410-013
|
$11.37 | ||
|
Unavailable |
|||
|
#16
SCREW, OVAL (5X20)
93700-05020-0B
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X100) (NOT AVAILABLE)
95812-08100-00
|
$1.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6302UU)
96140-63020-10
Superseded by 96150-63020-10
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6302UU)
96150-63020-10
|
$17.80 | ||
|
Unavailable |
|||
