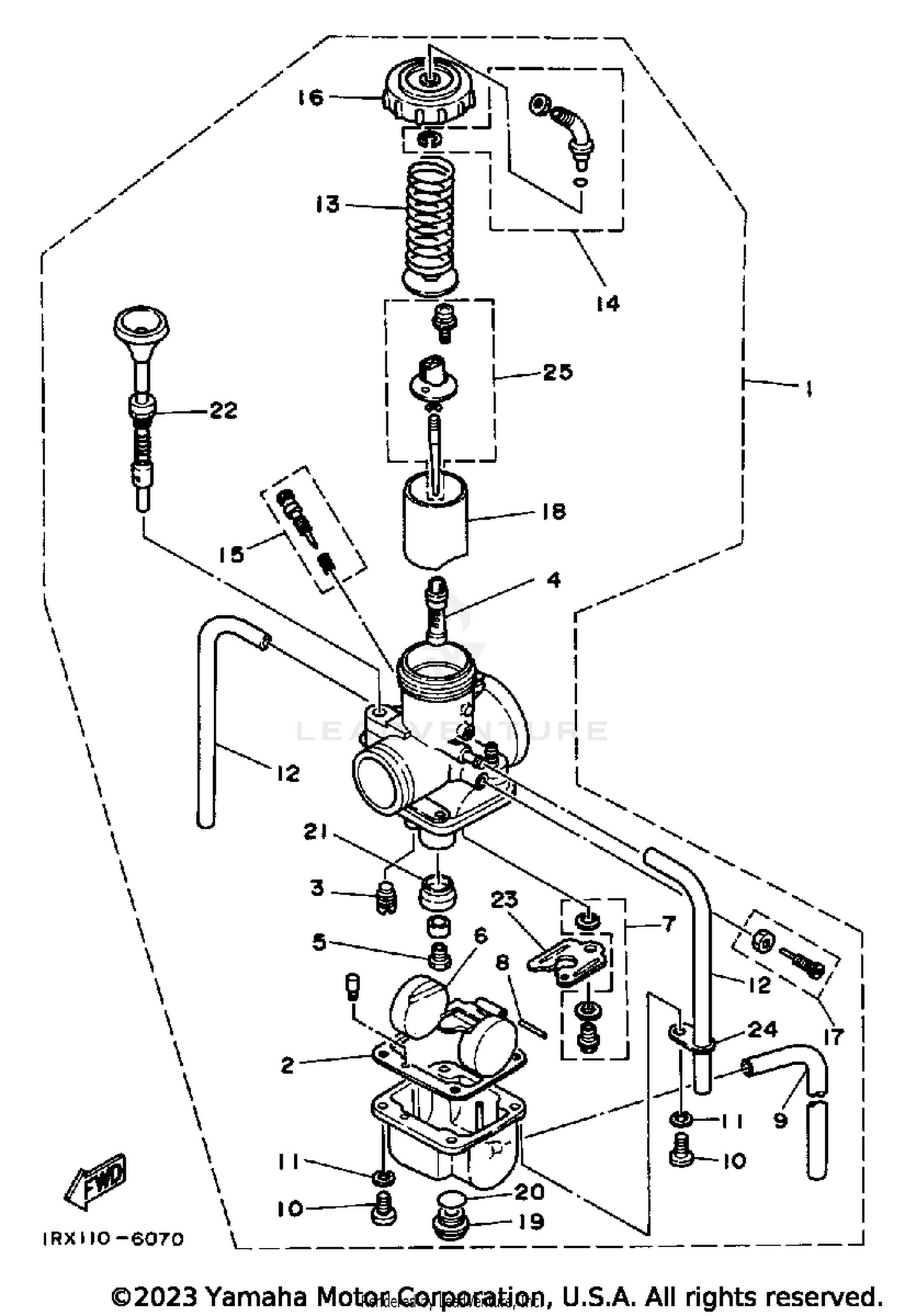

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
1RX-14101-00-
|
|||
|
Unavailable |
|||
|
#2
GASKET, FLOAT CHAMBER
483-14184-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, PILOT #35
193-14142-35-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NOZZLE, MAIN P-4
239-14141-44-00
|
$48.99 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#300)
137-14143-60-A0
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#320)
137-14143-64-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET MAIN, (# 330)
137-14143-66-A1
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (350)
137-14143-70-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
UNAVAILABLE IN PRICE BOOK
137-14143-60-
|
|||
|
Unavailable |
|||
|
#6
FLOAT
24X-14185-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#7
NEEDLE VALVE SEAT
38W-14107-15-00
|
$17.99 | ||
|
Unavailable |
|||
|
#8
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE
90445-081F2-00
Superseded by 90445-08684-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE
310-14197-00-00
Superseded by 89A-14987-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, THROTTLE VALVE
431-14131-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#14
CBLE AJST SCRW SETSCREW SET
24X-14106-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#15
AIR SCREW SET
23X-14104-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
TOP, MIXING CHAMBER
3R3-14158-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#17
THROTTLE SCREW SET
40T-14103-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
VALVE, THROTTLE 1
3R3-14112-30-00
|
$81.92 | ||
|
Unavailable |
|||
|
#19
PLUG, SCREW
2K6-14115-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#20
O-RING
2K6-14147-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, MAIN JET
3R3-14153-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#22
STARTER SET
38W-14171-00-00
|
$94.55 | ||
|
Unavailable |
|||
|
#23
PLATE
483-14146-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#24
PLATE
313-14146-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#25
NEEDLE SET
1RX-1490J-00-00
|
$29.99 | ||
|
Unavailable |
|||
