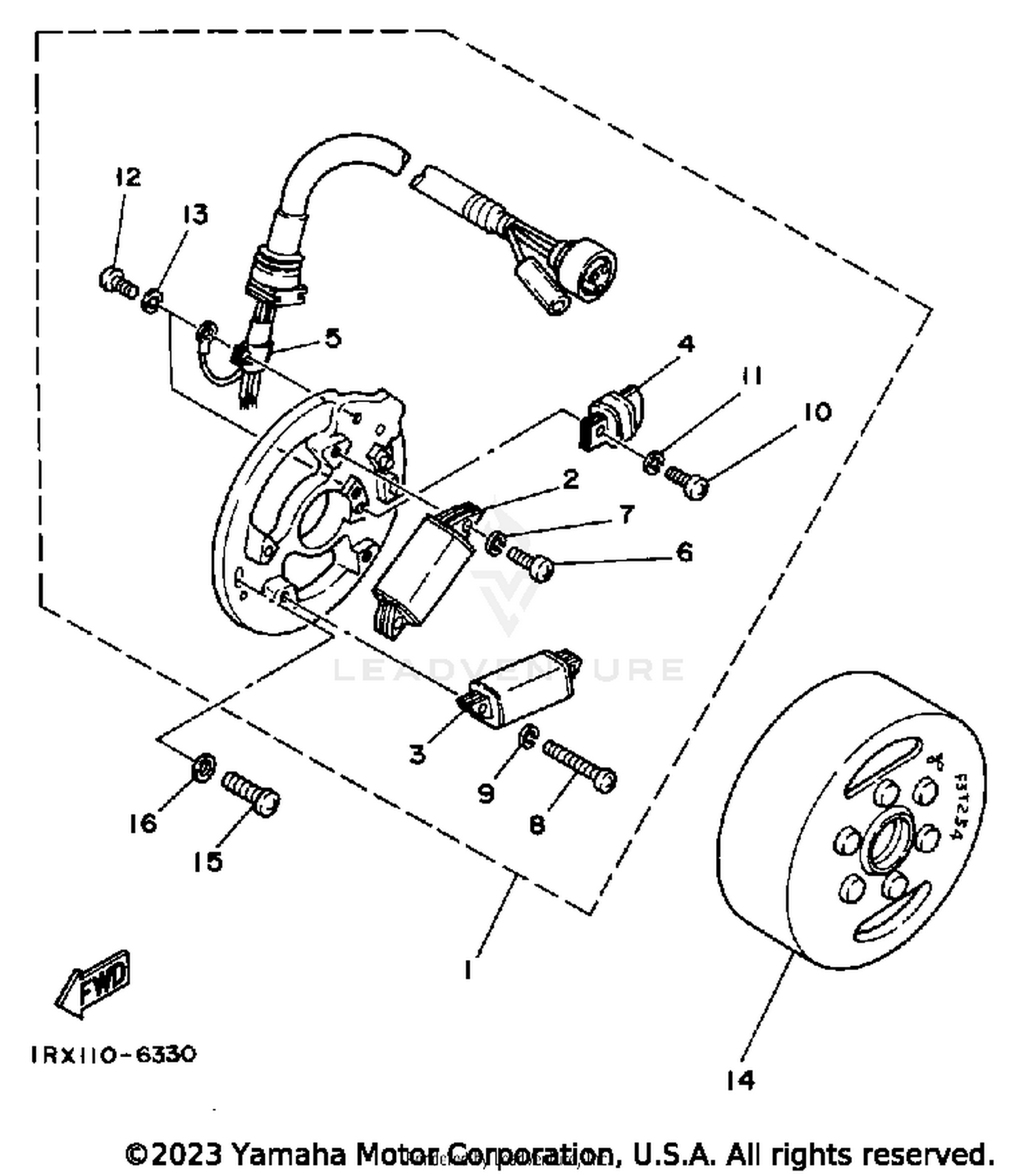

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSEMBLY
1RX-85510-20-00
|
$241.99 | ||
|
Unavailable |
|||
|
#2
COIL, SOURCE
1RX-85512-20-00
|
$96.99 | ||
|
Unavailable |
|||
|
#3
COIL, LIGHTING 1
1RX-85513-20-00
|
$80.99 | ||
|
Unavailable |
|||
|
#4
COIL, PULSER
38W-85580-20-00
|
$136.99 | ||
|
Unavailable |
|||
|
#5
CLAMP
445-81328-20-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98511-04016-00
Superseded by 98517-04016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98501-04035-00
Superseded by 98507-04035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Unavailable |
|||
|
#14
ROTOR ASSEMBLY
1RX-85550-20-00
|
$480.99 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
