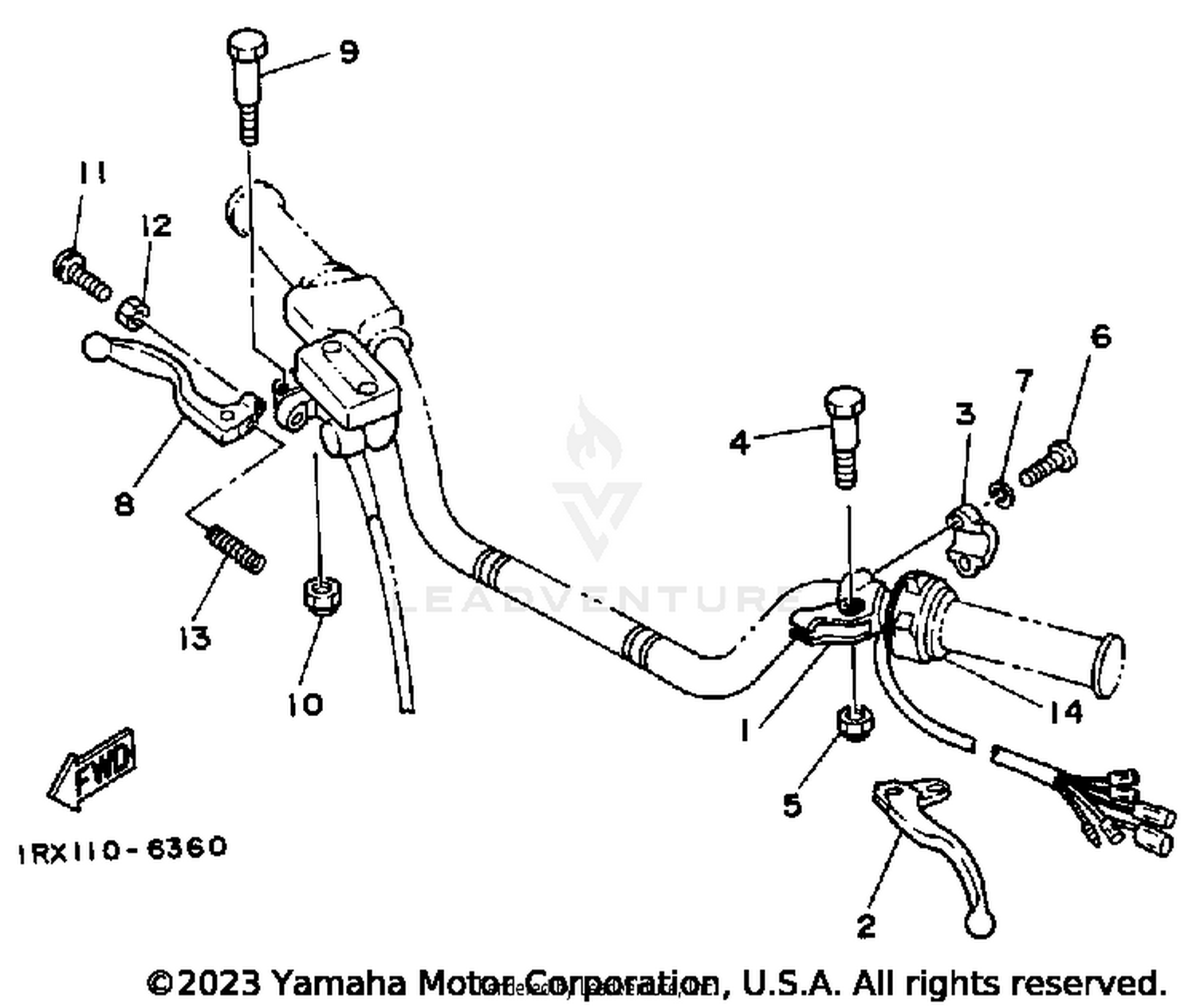

Handle Switch-lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, LEVER 1
38V-82911-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER 1
1NV-83912-00-00
Superseded by 1NV-83912-02-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, LEVER LOWER 1
38V-82913-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90109-06798-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98506-05018-00
Superseded by 98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER 2
1RX-83922-01-00
Superseded by 1RX-83922-02-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
90109-06465-00
Superseded by 90109-06577-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#11
SCREW
90149-06153-00
Superseded by 90149-06131-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90170-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, COMPRESSION
90501-10312-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH HANDLE 2
38W-83975-09-00
|
$160.99 | ||
|
Unavailable |
|||
