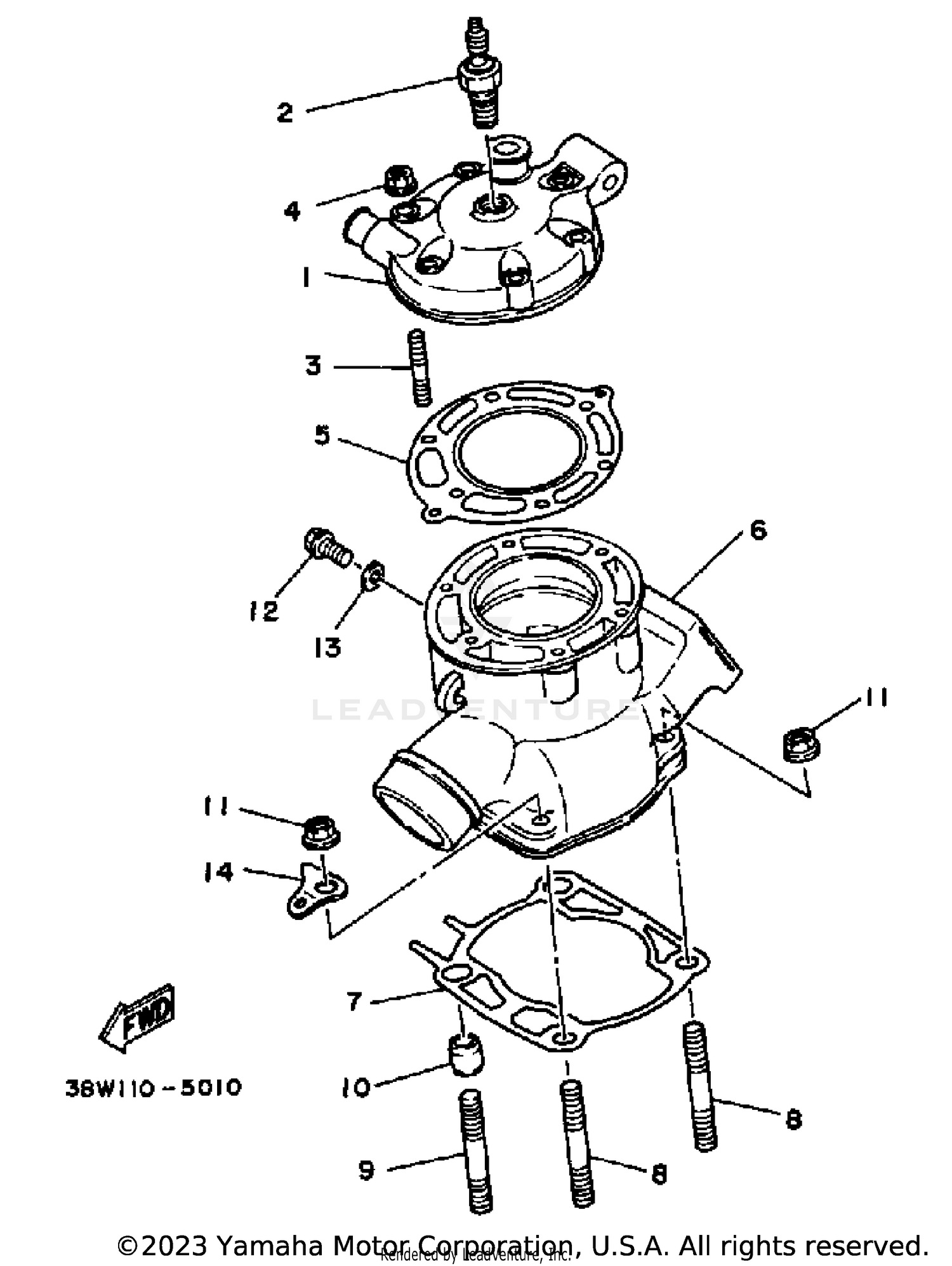

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
38W-11111-00-00
|
$142.99 | ||
|
Unavailable |
|||
|
#2
BR8ES NGK SCREW TOP
NGK-B8ES0-00-00
Superseded by BR8-ES000-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#3
BOLT, STUD
90116-08394-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SPECL SHAPE
90179-08491-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER.HEAD
38W-11181-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#6
CYLINDER 1 (38W-11311-00)
38W-11311-01-00
|
$638.99 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER
39X-11351-01-00
Superseded by 39X-11351-02-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
90116-10313-00
|
$4.15 | ||
|
Unavailable |
|||
|
#9
BOLT, STUD
90116-10314-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL A
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95816-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-06166-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOOK, SPRING
39X-14619-00-00
|
$9.40 | ||
|
Unavailable |
|||
