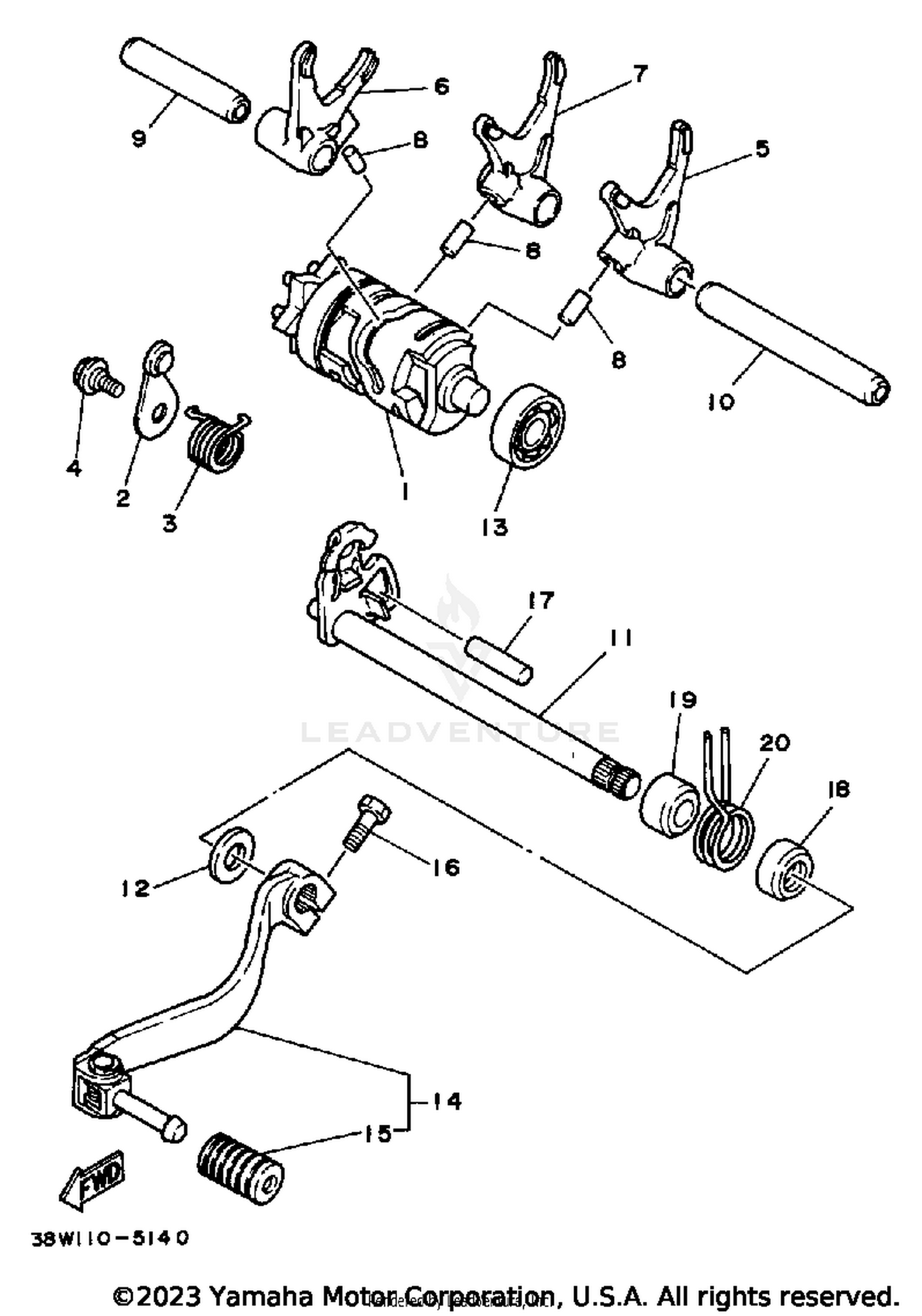

Shift Cam-fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT CAM ASSEMBLY
25Y-18540-00-00
|
$172.99 | ||
|
Unavailable |
|||
|
#2
STOPPER LEVER ASSEMBLY
3R4-18140-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#3
SPRING, TORSION
90508-26608-00
Superseded by 90508-26421-00
|
$5.49 | ||
|
Unavailable |
|||
|
#4
BOLT
50W-21631-00-00
Superseded by 90109-06190-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
FORK, SHIFT 1
3R4-18511-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#6
FORK, SHIFT 2
3R4-18512-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#7
FORK, SHIFT 3
25Y-18513-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#8
PIN, DOWEL
93606-14154-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR, SHIFT FORK GUIDE 2
5X5-18535-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#11
SHIFT SHAFT ASSY
38W-18101-01-00
Superseded by 38W-18101-02-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-12657-00
|
$2.39 | ||
|
Unavailable |
|||
|
#13
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIFT PEDAL ASSEMBLY
38W-18110-00-00
|
$93.99 | ||
|
Unavailable |
|||
|
#15
COVER, SHIFT PEDAL
1W6-18113-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL
93608-25150-00
|
$2.50 | ||
|
Unavailable |
|||
|
#18
OIL SEAL (SD 12-22-5 HS)
93102-12321-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
90560-12171-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, TORSION
90508-29361-00
|
$9.99 | ||
|
Unavailable |
|||
|
#
BAR, SHIFT FORK GUIDE 1
5X5-18531-01-00
Superseded by 4BA-18531-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
