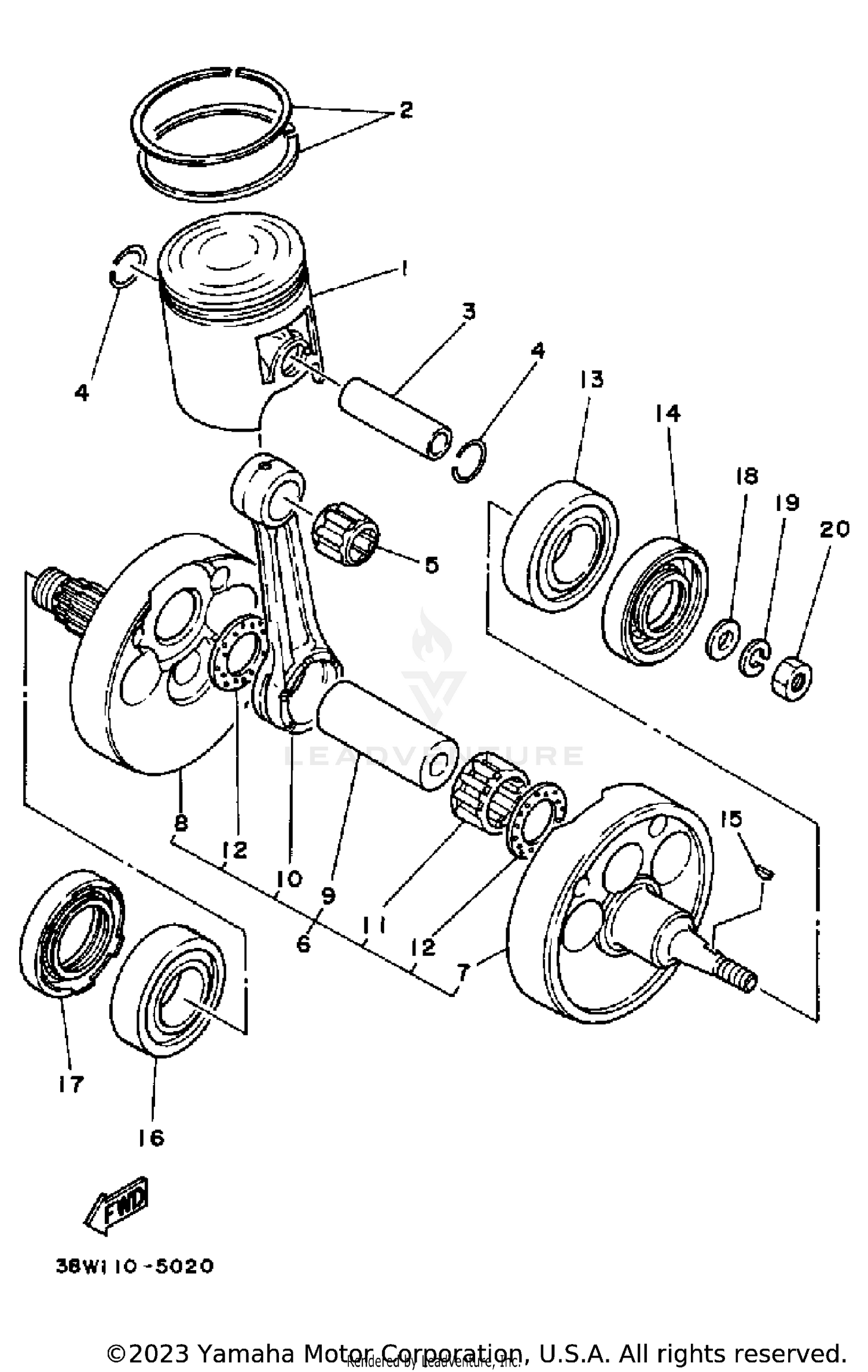

Crankshaft-piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON (STD)
1RX-11631-00-94
|
$123.99 | ||
|
Unavailable |
|||
|
#1
PISTON 1ST O/S
1RX-11635-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#1
PISTON 2ND O/S
1RX-11636-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#2
PISTON RINGSET STD
25Y-11601-00-00
|
$96.99 | ||
|
Unavailable |
|||
|
#2
PISTON RINGSET 2ND (2ND O/S)
25Y-11601-20-00
|
$52.99 | ||
|
Unavailable |
|||
|
#2
PISTON RINGSET 1ST (1ST O/S)
25Y-11601-10-00
|
$52.99 | ||
|
Unavailable |
|||
|
#3
PIN, PISTON
214-11633-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP, INNER
93450-19052-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, CYLINDRICAL
93310-418E9-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT ASSEMBLY
1RX-11400-00-00
|
$393.99 | ||
|
Unavailable |
|||
|
#7
CRANK 1
1RX-11412-00-00
|
$151.99 | ||
|
Unavailable |
|||
|
#8
CRANK 2
24Y-11422-01-00
|
$188.99 | ||
|
Unavailable |
|||
|
#9
PIN, CRANK 1
2X4-11681-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, CONNECTING
24Y-11651-01-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, CYLINDRICAL
93310-425N4-00
Superseded by 93310-425P2-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, (90209-25220)
90209-25085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING (B6206C3)
93306-20627-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL (38W)
93103-30150-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING (B6206C3)
93306-20627-00
|
$70.99 | ||
|
Unavailable |
|||
|
#17
OIL SEAL
93103-40091-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-12593-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEXAGON
90170-12347-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
